Includes

What Is Included

10.6 KW

Included with purchase

10.5 kW sauna heater adjustable legs pre-installed hive air tunnel installation and operation manual.

Required separately

UKU control, 330 lb stones (quantity 10 × 33 lb 2 to 4 in stones boxes).

6 KW

Included with purchase

6.0 kW sauna heater adjustable legs pre-installed hive air tunnel installation and operation manual.

Required separately

UKU control, 330 lb stones (quantity 10 × 33 lb 2 to 4 in stones boxes).

9 KW

Included with purchase

9.0 kW sauna heater adjustable legs pre-installed hive air tunnel installation and operation manual.

Required separately

UKU control, 330 lb stones (quantity 10 × 33 lb 2 to 4 in stones boxes).

Contents vary by configuration. Check the row for the option selected above.

Technical Specifications

Technical Specifications

At a Glance

At a Glance
Heat Source

Electric
Sauna Room Size

6 kW: 177 to 318 cu ft · 9 kW: 283 to 460 cu ft · 10.6 kW: 354 to 566 cu ft
Sauna Ceiling Height

At least 77 in floor to ceiling
Power

6, 9 and 10.6 kW
Power Supply

240 V single-phase or 208 V single-phase
Controls

Wall control
Phone App

Yes, with the Wi-Fi control
Mounting

Floor-standing
Stones

331 lb
Warranty

3 years home use, 1 year commercial use (HUUM Limited Warranty v4)
Made in

Estonia

Model & Application

Model & Application
Brand

HUUM
Catalog Product

HUUM HIVE Mini Electric Sauna Heater | 6, 9 & 10.6 kW
Heater Type

Electric sauna heater
Model Number

10.6 kW / 240 V / 1 phase: HIVE MINI 11; 6 kW / 240 V / 1 phase: HIVE MINI 6; 9 kW / 240 V / 1 phase: HIVE MINI 9
SKU / Part Number

10.6 kW / 240 V / 1 phase: H1002032; 6 kW / 240 V / 1 phase: H1002012; 9 kW / 240 V / 1 phase: H1002022

Sauna Sizing

Sauna Sizing
Maximum Room Volume

10.6 kW / 240 V / 1 phase: 566 ft³; 6 kW / 240 V / 1 phase: 318 ft³; 9 kW / 240 V / 1 phase: 460 ft³
Minimum Room Volume

10.6 kW / 240 V / 1 phase: 354 ft³; 6 kW / 240 V / 1 phase: 177 ft³; 9 kW / 240 V / 1 phase: 283 ft³

Electrical

Electrical
Minimum Circuit

10.6 kW / 240 V / 1 phase, 9 kW / 240 V / 1 phase: 50 A; 6 kW / 240 V / 1 phase: 30 A
Phase

1 phase
Rated Current

10.6 kW / 240 V / 1 phase: 43.75 A; 6 kW / 240 V / 1 phase: 25 A; 9 kW / 240 V / 1 phase: 37.5 A
Rated Power

10.6 kW / 240 V / 1 phase: 10.6 kW; 6 kW / 240 V / 1 phase: 6 kW; 9 kW / 240 V / 1 phase: 9 kW
Supply Voltage

240 V
Wire Size

10.6 kW / 240 V / 1 phase, 9 kW / 240 V / 1 phase: 6 AWG; 6 kW / 240 V / 1 phase: 10 AWG

Dimensions & Weight

Dimensions & Weight
Assembled Dimensions

18.1"D x 29.5"H
Heater Diameter

18.11 in
Heater Height

29.53 in
Minimum Host-Room Height

76.77 in
Product Weight

10.6 kW / 240 V / 1 phase, 9 kW / 240 V / 1 phase: 40.3 lbs; 6 kW / 240 V / 1 phase: 35.9 lbs

Installation Clearances

Installation Clearances
Ceiling-Clearance Reference Height Above Finished Floor

29.53 in
Ceiling-Clearance Reference Plane

Top Of Rocks
Combustible Radial Clearance

10.6 kW / 240 V / 1 phase: 4.33 in; 6 kW / 240 V / 1 phase: 2.36 in; 9 kW / 240 V / 1 phase: 3.54 in
Minimum Installation Envelope Width

10.6 kW / 240 V / 1 phase: 26.77 in; 6 kW / 240 V / 1 phase: 22.84 in; 9 kW / 240 V / 1 phase: 25.2 in
Minimum Spacing from Adjacent Surfaces

10.6 kW / 240 V / 1 phase: 4.33 in; 6 kW / 240 V / 1 phase: 2.36 in; 9 kW / 240 V / 1 phase: 3.54 in
Top of Rocks Above Finished Floor

29.53 in

Included & Required

Included & Required
Included Components

10.6 kW / 240 V / 1 phase: 10.5kW Sauna Heater Adjustable Legs Pre-Installed HIVE Air Tunnel Installation and Operation Manual; 6 kW / 240 V / 1 phase: 6.0kW Sauna Heater Adjustable Legs Pre-Installed HIVE Air Tunnel Installation and Operation Manual; 9 kW / 240 V / 1 phase: 9.0kW Sauna Heater Adjustable Legs Pre-Installed HIVE Air Tunnel Installation and Operation Manual
Required, Not Included

UKU Control, 330 lbs stones (Qty 10 x 33 lbs 2 to 4 in stones boxes)

Certifications

Certifications
Certifications & Listings

CE, IPX4, SGS

Warranty

Warranty
Residential Warranty

3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

Use the attached current manual and a qualified installer for final sizing, wiring, clearances, venting, and local-code compliance.

How It Fits

How This Product Fits the System

What it is used for

An electric sauna heater that heats the sauna room and stone mass for traditional löyly. Choose the output from adjusted room volume, then match the exact voltage, phase, circuit, controls, stones, clearances, and ventilation.

What to plan

  • Size from adjusted sauna volume, including the effect of glass, masonry, and other uninsulated surfaces; do not size from floor area alone.
  • Match the selected model's power or fuel, voltage, phase, circuit, wire, control, stone, and venting requirements before ordering.
  • Treat clearances, ceiling reference planes, ventilation, guarding, floor protection, and service access as one room-layout decision.
  • Follow the current installation manual and use a qualified installer.

Required separately

Complete the system with these items.

Designed to work with

Model-specific replacements and compatible system components.

Optional accessories

Optional upgrades and accessories.

Products that use this item

This item is used by the following products.

Sauna packages that offer this heater

Available heater options for these sauna packages.

Other heater options

Compare these options; sizing, power, controls, clearances, and stones may differ.

Attachments
Legacy manuals for older installations

Use these only when the document revision matches the installed product.

Gallery
Huum Hive Mini Rock Basket Electric Sauna Heater
Huum Hive Mini Electric Sauna Heater Filled With Sauna Stones
Huum Hive Mini Heating Elements And Included Center Air Tunnel
Huum Hive Mini Clearance Diagram, Per-Model Safety Distance Table And Bench Embedding Depth, In Inches.
Huum Hive Mini Installed In A Modern Glass-Front Outdoor Sauna
Huum Hive Mini Sauna Heater With Curved Wood Safety Rail

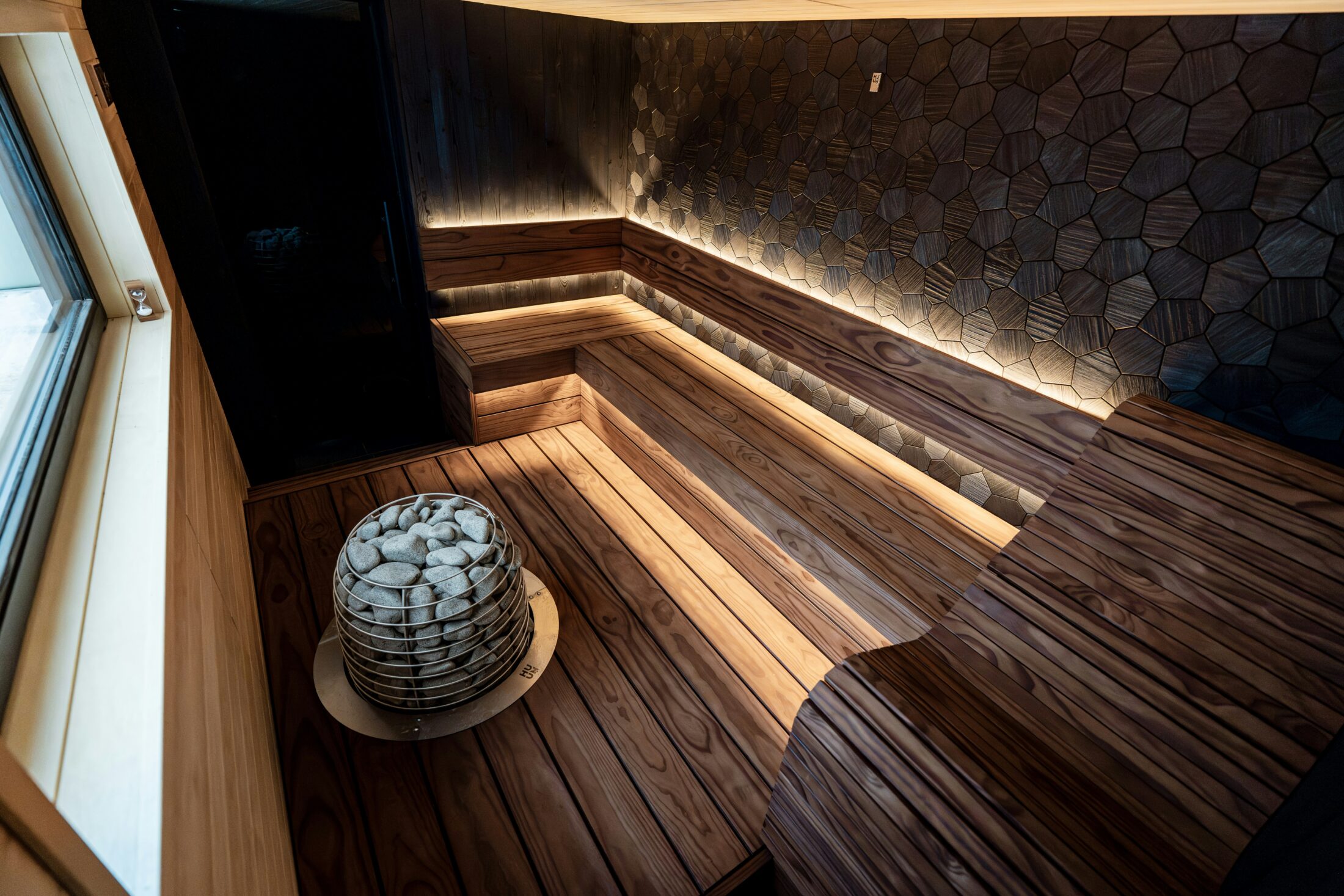

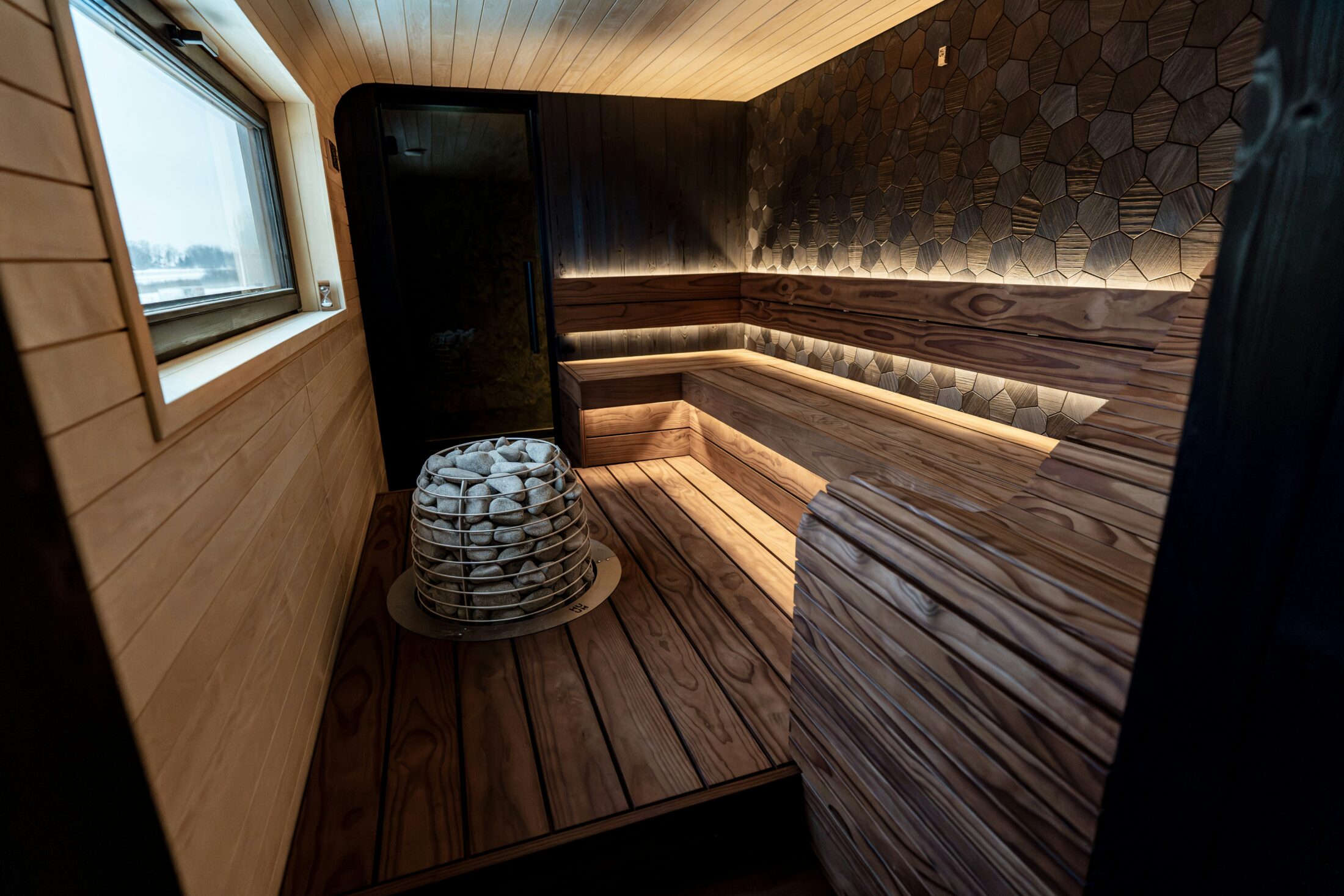

Huum Hive Mini Embedded In A Wood Sauna Platform
Huum Hive Mini Electric Sauna Heater With The Cage Empty, Showing The Stainless Steel Frame And Heating Elements.
Huum Hive Mini Electric Sauna Heater Filled With Rounded Sauna Stones On A Plain Background.
Huum Hive Mini Electric Sauna Heater Shown Beside The Taller Full-Size Huum Hive For Scale.
Huum Hive Mini Electric Sauna Heater Filled With Stones And Fitted With The Round Wooden Huum Rail Hm Safety Rail.

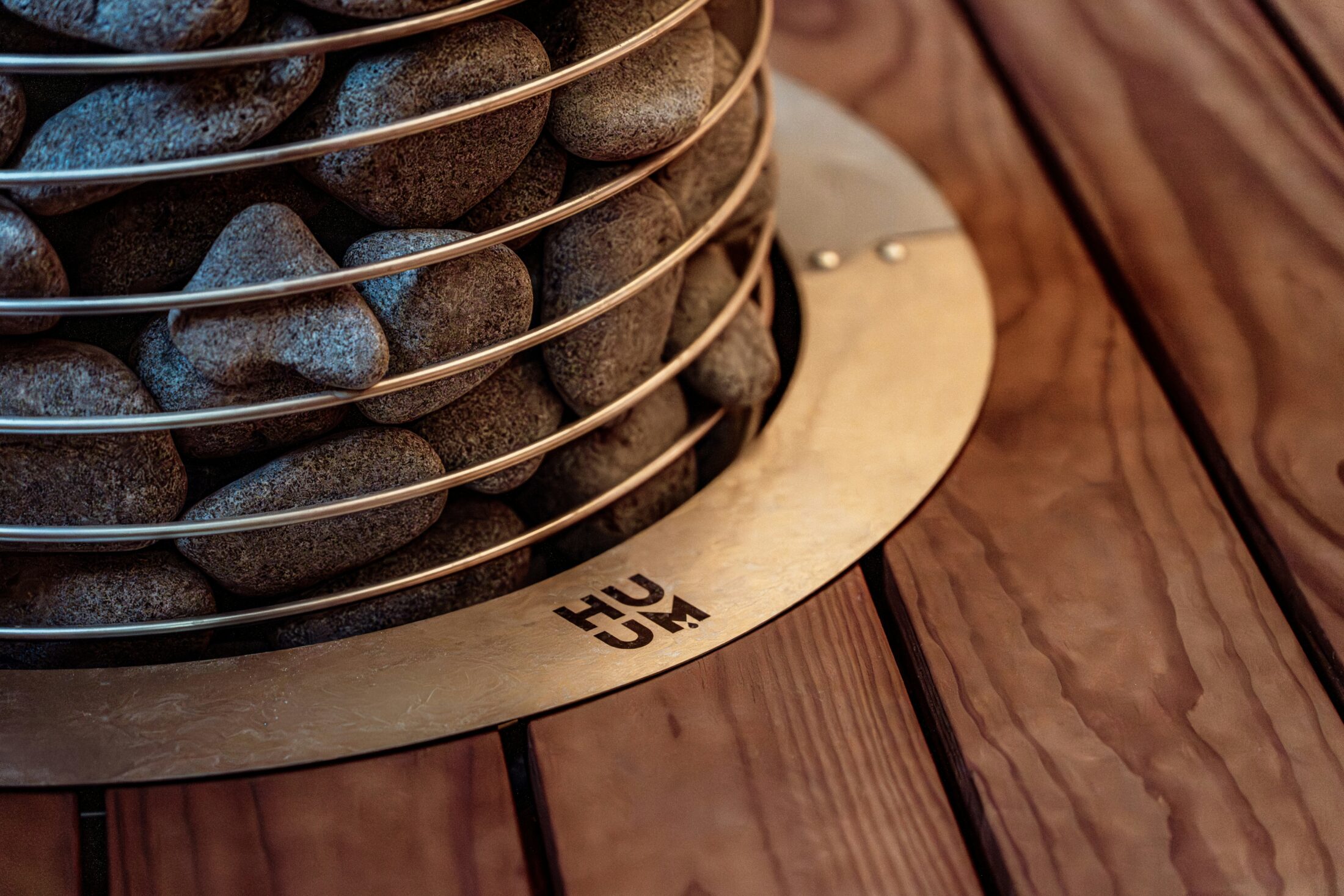

Huum Hive Mini Electric Sauna Heater Set Into A Stainless Steel Floor Embedding Flange In A Wood Sauna Behind A Glass Wall.
Huum Hive Mini Electric Sauna Heater In A Wood Sauna With Tiered Benches And A Tall Window Looking Out To The Sea.
Outdoor Sauna Cabin With A Dark Exterior And Glass Front, Heated By A Huum Hive Mini Electric Sauna Heater.
Huum Hive Mini Electric Sauna Heater With Its Wooden Huum Rail Hm Safety Rail In The Corner Of A Sauna, Beside A Bucket And Ladle.
Huum Hive Mini Electric Sauna Heater Filled With Rounded Sauna Stones, Studio View On A Light Background.
    Fast and Free Shipping

    Free LTL delivery with lift gate service.

    Sizing

    HUUM Sauna Heater Size Calculator

    Powered by HUUM. For personalized help choosing a heater or Saunum system, talk with Sauna Marketplace.

    Product Guide

    The HIVE sauna experience in a smaller footprint

    HIVE Mini is the smaller member of HUUM's stone-first HIVE family. The round basket makes the heater a visual centerpiece while 331 lb of stones store heat and produce the gentle, rich, long-lasting steam that defines the HIVE design. It is a strong fit when you want the feel and appearance of HIVE but do not need the output or 528-lb stone mass of the full-size HIVE.

    The current 2025+ air tunnel version

    Every current HIVE Mini includes HUUM's stainless steel air tunnel as standard equipment. It improves airflow through the center of the heater, supports the heating elements, and helps prevent element overheating. HUUM's product training reports approximately 25% faster room heating and explains that the improved airflow and support are designed to help the elements last longer.

    This is the latest HIVE Mini configuration. The air tunnel, four adjustable legs, and current HIVE installation and operation manual are included with the heater.

    Choose the correct HIVE Mini

    Current U.S. model Room volume Amperage Breaker Copper wire Minimum combustible clearance
    HIVE Mini 6, 6.0 kW 177 to 318 ft³ 25 A 30 A 10 AWG 2.4 in (manual table: 2 2/8 in)
    HIVE Mini 9, 9.0 kW 283 to 460 ft³ 37.5 A 50 A 6 AWG 3.6 in (manual table: 3 17/32 in)
    HIVE Mini 11, 10.6 kW 354 to 566 ft³ 43.75 A 50 A 6 AWG 4.4 in (manual table: 4 11/32 in)

    All three current U.S. models are 240V, single-phase and measure 18 1/8 inches in diameter by 29 17/32 inches high. The manual requires 47 1/4 inches from the top of the heater to the ceiling. For a floor-mounted HIVE Mini, the heater height plus that clearance produces a derived floor-to-ceiling installation envelope of approximately 77 inches. Final sizing, clearances, cable selection, and installation must follow the current U.S. manual and local code.

    What is included and what is required

    Included

    • HUUM HIVE Mini electric sauna heater
    • Four adjustable legs
    • Current-generation air tunnel
    • Current installation and operation manual

    Required and sold separately

    Recommended planning accessories

    • HUUM HIVE safety rail, selecting Rail HM for HIVE Mini. HUUM strongly recommends a safety rail around the heater.
    • HUUM HIVE reflector, selecting Reflect HM when the project needs the HIVE Mini version.

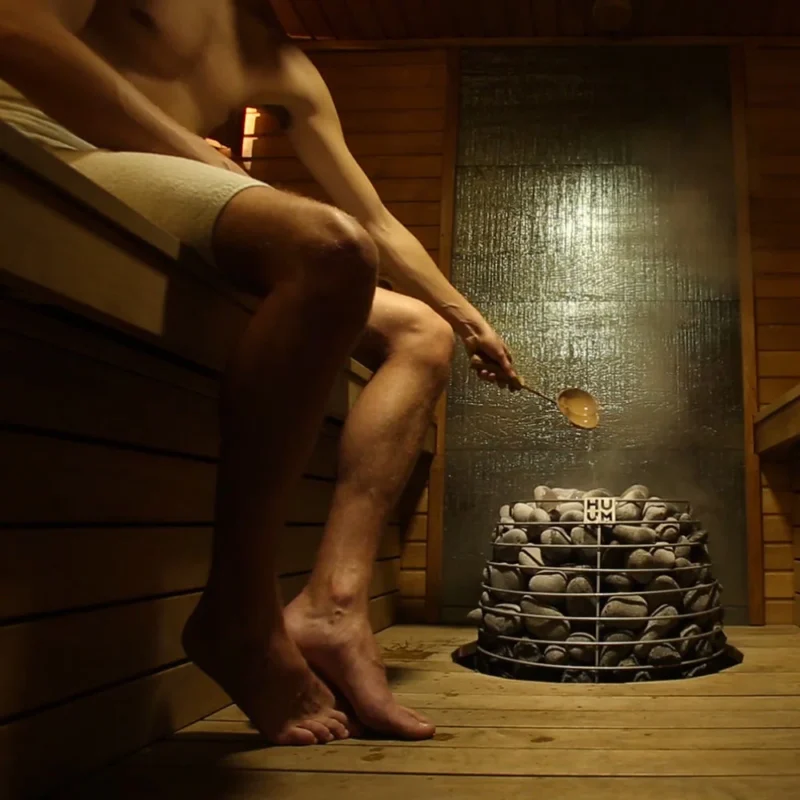

    • HUUM HIVE Mini embedding flange when the heater passes through a bench platform.

    Sizing and installation notes that matter

    • Account for cold surfaces: for each square foot of glass, masonry, tile, brick, concrete, or other uninsulated surface, add 3.3 cubic feet to the calculated sauna volume before selecting the heater.
    • Plan around roughly one hour of warm-up: HUUM says a properly insulated, correctly sized room usually reaches bathing temperature in about an hour. Wi-Fi UKU control lets you start the heater before you enter the sauna.
    • Embedding is allowed: at least 13 25/32 inches, or 13.8 in, of the heater must remain above the bench surface. Use the correct HIVE Mini flange and preserve every manual clearance.
    • No extension box is required for these models: the current 240V HIVE Mini 6, 9, and 11 are within the current UKU's direct capacity. The full-size 12, 15, and 18 kW HIVE models are a different system.

    Load the stones correctly

    Use only clean, durable 2 to 4-inch sauna stones. HUUM's product training instructs installers to keep the air tunnel clear of stones while covering the heating elements completely. Place stones loosely enough for air to move through the heater, do not force stones between the elements, and inspect and repack the stone bed at least annually as stones settle and degrade.

    Warranty

    HUUM's current limited warranty is 3 years for private use and 1 year for commercial use. Heating elements, accessories, sauna stones, and controller sensors are excluded. A licensed professional electrician must install and connect the system, and proof may be required for a claim. Open the current warranty and manuals in the Manuals & Documents tab for the complete terms.

    HIVE Mini questions

    Does HIVE Mini include the controller and stones?

    No. The heater, adjustable legs, air tunnel, and heater manual are included. A compatible UKU control and ten boxes of Stones 24 are required and sold separately.

    Why does HIVE Mini use so many stones?

    The large stone mass stores heat and increases the stone surface available for water. That is what gives HIVE Mini its gentle, abundant, long-lasting steam instead of a sharper burst from a low-stone heater.

    Which model should I choose?

    Start with the finished interior volume, add the manual's 3.3 ft³ adjustment for every square foot of cold or uninsulated surface, then choose the model whose full range contains the adjusted volume. When a room sits near a boundary, review the construction, glazing, ventilation, and desired warm-up time with Sauna Marketplace before ordering.

    Can designers download a HIVE Mini model?

    Yes. HUUM provides DWG, OBJ, SKP, IFC, and 3DS files, including versions with the safety rail, on the official HIVE Mini resources page.

    HUUM HIVE Mini Electric Sauna Heater | 6, 9 & 10.6 kW

    (1 customer review)

    HUUM HIVE Mini puts 331 lb of stones into a compact 18 1/8-inch floor heater for gentle, long-lasting steam. The current 2025+ version includes HUUM’s stainless steel air tunnel, engineered to improve airflow, speed warm-up, support the heating elements, and help them last longer. Choose 6, 9, or 10.6 kW for current 240V U.S. room ranges of 177 to 566 cubic feet. A HUUM UKU control and ten 33-lb boxes of 2 to 4-inch stones are required and sold separately.

    We recommend UKU Wi-Fi Glass, preselected for new packages.

    Build A Quote:

    CLIFF Core DROP HIVE HIVE Mini STEEL

    See your heater and options in 3D ↑

    Fast and Free Shipping!

    Most HUUM HIVE packages leave our Chicago warehouse in 2 to 3 business days. They travel by freight to the distribution hub nearest you, and the carrier calls you to book a delivery window. Plan on someone being there to receive it.

    Choose a HUUM UKU controller (required)

    Your heater will not run without a UKU. Local mounts outside the hot room and runs the sauna from its own panel. Wi-Fi does the same and adds scheduling and remote start from the HUUM app, which is what you want when the sauna is not ten steps from the couch. Every finish below is the same controller underneath, so pick on looks and budget. Already own a UKU? Take the first option and we will check yours against this heater before anything ships. We recommend UKU Wi-Fi Glass, preselected for new packages.

    I already own a compatible HUUM UKU controller package I already own a compatible HUUM UKU controller package UKU Local, Black +$1,062.00 UKU Local, BlackWall-mounted UKU display for turning the heater on and setting time and temperature. UKU Local, Wood +$1,375.00 UKU Local, WoodWall-mounted UKU display for turning the heater on and setting time and temperature. UKU Wi-Fi, Black +$1,324.00 UKU Wi-Fi, BlackWall-mounted UKU display, plus remote control by app over Wi-Fi. The HUUM app is free with the Wi-Fi package. UKU Wi-Fi, Wood +$1,637.00 UKU Wi-Fi, WoodWall-mounted UKU display, plus remote control by app over Wi-Fi. The HUUM app is free with the Wi-Fi package. UKU Wi-Fi, Glass (recommended) +$1,724.00 UKU Wi-Fi, Glass (recommended)Wall-mounted UKU display, plus remote control by app over Wi-Fi. The HUUM app is free with the Wi-Fi package. UKU Wi-Fi, Mirror +$1,987.00 UKU Wi-Fi, MirrorWall-mounted UKU display, plus remote control by app over Wi-Fi. The HUUM app is free with the Wi-Fi package. UKU Wi-Fi, Gold +$1,987.00 UKU Wi-Fi, GoldWall-mounted UKU display, plus remote control by app over Wi-Fi. The HUUM app is free with the Wi-Fi package. UKU Wi-Fi, Glass (recommended)(+$1,724.00)
    Add the required stones: HIVE Mini 6/9/10.6 kW

    The HIVE Mini 6, 9 and 10.6 kW holds about 331 lb of 2 to 4 inch stones, and stones do not come in the box with the heater. That comes to 10 boxes. Stack them loosely so air can move between them and the elements stay covered, and plan on restacking once a year.

    I already have the approved 2–4 inch stones for HIVE Mini 6/9/10.6 kW I already have the approved 2–4 inch stones for HIVE Mini 6/9/10.6 kW 10 × 33-lb boxes of HUUM STONES 24 (330 lb nominal supplied) +$800.00 10 × 33-lb boxes of HUUM STONES 24 (330 lb nominal supplied)(+$800.00)
    Add-Ons
    Free Quote For Sauna Wood

    Did you know Sauna Marketplace specializes in premium Sauna Woods? Whether you’re looking for the highest grade material, a specific look, or to save money we have something for you.

    Share your selected options and add-ons. Prices and availability are confirmed when the link is opened.

    Plan the details around your heater

    Open an accessory to check its fit, mounting and manual. Rails help prevent accidental contact; they do not replace the heater’s required clearances.

    Installation checklist, manuals and support

    Keep the selected model and required components together before your installer starts.

    Open your installation pack

    Your orders and saved documents · Contact Sauna Marketplace · 844-565-1113

    We added you to this product's waitlist and we'll send you an email when the product is available.

    Leave Waitlist

    This product is currently sold out.

    No worries! Enter your email, and we'll let you know as soon as it's back in stock.

    Fulfillment Partner:

    We handle your order from checkout to delivery. We sell at the lowest price the manufacturers allow, and we're a call away long after it arrives.

    Bathing Distribution Center - Chicago
    Pay over time:

    Choose Affirm at checkout to see your payment options. Approval and terms depend on eligibility.

    Pay with HSA/FSA:

    We teamed up with FLEX to make HSA/FSA payments easier than ever.

    HUUM

    What HUUM HIVE Mini owners say

    Public reviews and notes owners sent our team, word for word. Names are shortened to a first name and last initial, or to initials.

    “The consultations were a tremendous help in our final stove selection, and the whole process was easy. We felt well supported when making this decision and purchase.”

    Lawrence F.

    “Excellent service and consultation”

    Dennis A. · HUUM HIVE Flow owner

    “We fired it up for the first time tonight and everything is great.”

    Emily S. · HUUM HIVE owner

    “Love the drop 7.5! Buying experience was great.”

    L. J. · About the HUUM DROP

    “I couldn't be happier with the service at SaunaMarketplace, Ben was incredibly thorough with his service and expertise and guided me through every step of the purchase process.”

    T. H.

    “First of all I want to say Ben was fantastic and very informative with all the products on his website. He recommended the Saunum Air and this was the best decision for my 6x8 ft 7 feet high cedar sauna. I got the 7kw with Wi-Fi and the power is plenty. I can take a dry sauna with no water on the rocks or add water and it becomes a steam room. The best part is when you turn the fan on and add water you can sit at lower level and not get too hot or cold. … I have been in saunas most of my life and Saunum changes the game. It is built solidly and pumps out tons of heat. I would recommend this unit big time Saunum hit it out of the park with the fan system. … Before you buy a sauna heater make sure you talk to Ben about this unit and the benefits.”

    Bob H. · About the Saunum AIR

    “Great service - easy delivery!”

    Matthew H. · Harvia M3 owner

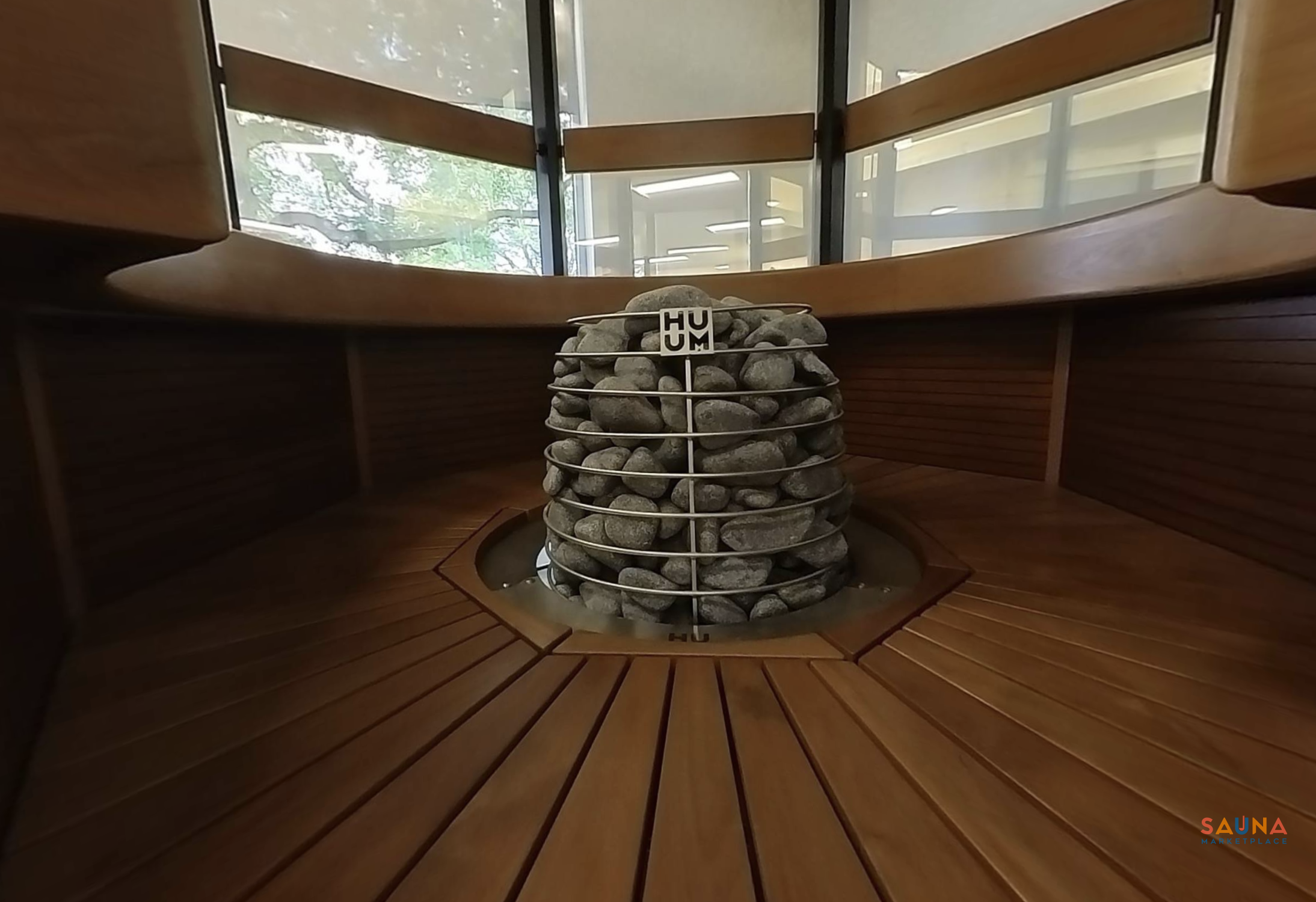

    Heart of the Sauna: check out this HIVE MINI inside one of our favorite prebuilt saunas, the Haljas Hele Single:

    What to Expect

    • Freight Shipping w/ Liftgate Service

    Shipping is free in the continental US.  Please get in touch with us or check-out for Canada, Alaska, and Island shipping.

    Free

    • Compatibility Check

    We look for any issues with your order.

    Same Day

    • ready to ship package Ready to Ship

    Warehouse schedules shipment

    1 Day

    • Delivered

    Freight delivery with tracking. Our trusted shipping partners will contact you to schedule.

    8-14 Days

    • 'Whatever-It-Takes' Support

    Unlimited access to tech support from SaunaMarketplace.com and HUUM.

    Support Details

    This order is fulfilled through our US distribution network.  That means you have full access to their top-notch customer service and tech support, as well as SaunaMarketplace.com and HUUM support.  We're with you and your contractors until it's operating as it should, no matter what.

    Before your order ships, we provide contact information and reference numbers for each.

    • Warranty: 3 Years Private / 1 Year Commercial

    HUUM Warranty does not include heating elements. SaunaMarketplace.com offers supplemental 2 year coverage for heating elements (additional charge).

    Warranty Docs

    HUUM Heater Warranty

    SaunaMarketplace.com Elements Warranty (Additional Cost)

    Why buy a HUUM Sauna Heater from Sauna Marketplace?

    Current HUUM product guide

    Use the current Product Guide and Manuals & Documents sections on this page for verified model selection, sizing, installation, and warranty information.

    Marketplace Knowledgebase

    13 Videos

    Even Better Embedded

    You'll want to keep your heater low and your benches high for the best sauna experience.  We recommend building an elevated "false floor" and embedding your HUUM HIVE Mini.

    Then build a foot bench, and final bench above that floor level and you will have a dramatically improved sauna. Ask us how to get free shipping for your sauna floor and bench materials, along with your HUUM heater.

    huum hive embedded flange

    Planning guides: Sauna heater calculatorElectric sauna heater reviews

    Expert help that stays with you

    Small details become expensive problems once installation begins. We ask the questions early, so a mismatched part, an overlooked requirement or an installation issue gets caught while it is still easy to fix.

    Our job does not end when your order ships. We stay available through installation and beyond. If something needs attention, we stay involved, work the problem, and help see it through.

    We want you to feel good about choosing Sauna Marketplace long after your first session, and confident recommending us to a friend. That standard guides the advice we give, the products we sell, and the way we take care of our customers.

    Sauna and heater customers also receive free shipping on sauna accessories for life.

    Planning a sauna, or need help with one you purchased from us? Our founders have built saunas from the crate up and both run saunas at home. New customers and existing Sauna Marketplace sauna and heater owners can Open the 3D planner.

    Includes

    What Is Included

    10.6 KW

    Included with purchase

    10.5 kW sauna heater adjustable legs pre-installed hive air tunnel installation and operation manual.

    Required separately

    UKU control, 330 lb stones (quantity 10 × 33 lb 2 to 4 in stones boxes).

    6 KW

    Included with purchase

    6.0 kW sauna heater adjustable legs pre-installed hive air tunnel installation and operation manual.

    Required separately

    UKU control, 330 lb stones (quantity 10 × 33 lb 2 to 4 in stones boxes).

    9 KW

    Included with purchase

    9.0 kW sauna heater adjustable legs pre-installed hive air tunnel installation and operation manual.

    Required separately

    UKU control, 330 lb stones (quantity 10 × 33 lb 2 to 4 in stones boxes).

    Contents vary by configuration. Check the row for the option selected above.

    Technical Specifications

    Technical Specifications

    At a Glance

    At a Glance
    Heat Source

    Electric
    Sauna Room Size

    6 kW: 177 to 318 cu ft · 9 kW: 283 to 460 cu ft · 10.6 kW: 354 to 566 cu ft
    Sauna Ceiling Height

    At least 77 in floor to ceiling
    Power

    6, 9 and 10.6 kW
    Power Supply

    240 V single-phase or 208 V single-phase
    Controls

    Wall control
    Phone App

    Yes, with the Wi-Fi control
    Mounting

    Floor-standing
    Stones

    331 lb
    Warranty

    3 years home use, 1 year commercial use (HUUM Limited Warranty v4)
    Made in

    Estonia

    Model & Application

    Model & Application
    Brand

    HUUM
    Catalog Product

    HUUM HIVE Mini Electric Sauna Heater | 6, 9 & 10.6 kW
    Heater Type

    Electric sauna heater
    Model Number

    10.6 kW / 240 V / 1 phase: HIVE MINI 11; 6 kW / 240 V / 1 phase: HIVE MINI 6; 9 kW / 240 V / 1 phase: HIVE MINI 9
    SKU / Part Number

    10.6 kW / 240 V / 1 phase: H1002032; 6 kW / 240 V / 1 phase: H1002012; 9 kW / 240 V / 1 phase: H1002022

    Sauna Sizing

    Sauna Sizing
    Maximum Room Volume

    10.6 kW / 240 V / 1 phase: 566 ft³; 6 kW / 240 V / 1 phase: 318 ft³; 9 kW / 240 V / 1 phase: 460 ft³
    Minimum Room Volume

    10.6 kW / 240 V / 1 phase: 354 ft³; 6 kW / 240 V / 1 phase: 177 ft³; 9 kW / 240 V / 1 phase: 283 ft³

    Electrical

    Electrical
    Minimum Circuit

    10.6 kW / 240 V / 1 phase, 9 kW / 240 V / 1 phase: 50 A; 6 kW / 240 V / 1 phase: 30 A
    Phase

    1 phase
    Rated Current

    10.6 kW / 240 V / 1 phase: 43.75 A; 6 kW / 240 V / 1 phase: 25 A; 9 kW / 240 V / 1 phase: 37.5 A
    Rated Power

    10.6 kW / 240 V / 1 phase: 10.6 kW; 6 kW / 240 V / 1 phase: 6 kW; 9 kW / 240 V / 1 phase: 9 kW
    Supply Voltage

    240 V
    Wire Size

    10.6 kW / 240 V / 1 phase, 9 kW / 240 V / 1 phase: 6 AWG; 6 kW / 240 V / 1 phase: 10 AWG

    Dimensions & Weight

    Dimensions & Weight
    Assembled Dimensions

    18.1"D x 29.5"H
    Heater Diameter

    18.11 in
    Heater Height

    29.53 in
    Minimum Host-Room Height

    76.77 in
    Product Weight

    10.6 kW / 240 V / 1 phase, 9 kW / 240 V / 1 phase: 40.3 lbs; 6 kW / 240 V / 1 phase: 35.9 lbs

    Installation Clearances

    Installation Clearances
    Ceiling-Clearance Reference Height Above Finished Floor

    29.53 in
    Ceiling-Clearance Reference Plane

    Top Of Rocks
    Combustible Radial Clearance

    10.6 kW / 240 V / 1 phase: 4.33 in; 6 kW / 240 V / 1 phase: 2.36 in; 9 kW / 240 V / 1 phase: 3.54 in
    Minimum Installation Envelope Width

    10.6 kW / 240 V / 1 phase: 26.77 in; 6 kW / 240 V / 1 phase: 22.84 in; 9 kW / 240 V / 1 phase: 25.2 in
    Minimum Spacing from Adjacent Surfaces

    10.6 kW / 240 V / 1 phase: 4.33 in; 6 kW / 240 V / 1 phase: 2.36 in; 9 kW / 240 V / 1 phase: 3.54 in
    Top of Rocks Above Finished Floor

    29.53 in

    Included & Required

    Included & Required
    Included Components

    10.6 kW / 240 V / 1 phase: 10.5kW Sauna Heater Adjustable Legs Pre-Installed HIVE Air Tunnel Installation and Operation Manual; 6 kW / 240 V / 1 phase: 6.0kW Sauna Heater Adjustable Legs Pre-Installed HIVE Air Tunnel Installation and Operation Manual; 9 kW / 240 V / 1 phase: 9.0kW Sauna Heater Adjustable Legs Pre-Installed HIVE Air Tunnel Installation and Operation Manual
    Required, Not Included

    UKU Control, 330 lbs stones (Qty 10 x 33 lbs 2 to 4 in stones boxes)

    Certifications

    Certifications
    Certifications & Listings

    CE, IPX4, SGS

    Warranty

    Warranty
    Residential Warranty

    3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

    Use the attached current manual and a qualified installer for final sizing, wiring, clearances, venting, and local-code compliance.

    How It Fits

    How This Product Fits the System

    What it is used for

    An electric sauna heater that heats the sauna room and stone mass for traditional löyly. Choose the output from adjusted room volume, then match the exact voltage, phase, circuit, controls, stones, clearances, and ventilation.

    What to plan

    • Size from adjusted sauna volume, including the effect of glass, masonry, and other uninsulated surfaces; do not size from floor area alone.
    • Match the selected model's power or fuel, voltage, phase, circuit, wire, control, stone, and venting requirements before ordering.
    • Treat clearances, ceiling reference planes, ventilation, guarding, floor protection, and service access as one room-layout decision.
    • Follow the current installation manual and use a qualified installer.

    Required separately

    Complete the system with these items.

    Designed to work with

    Model-specific replacements and compatible system components.

    Optional accessories

    Optional upgrades and accessories.

    Products that use this item

    This item is used by the following products.

    Sauna packages that offer this heater

    Available heater options for these sauna packages.

    Other heater options

    Compare these options; sizing, power, controls, clearances, and stones may differ.

    Attachments
    Legacy manuals for older installations

    Use these only when the document revision matches the installed product.

    Gallery
    Huum Hive Mini Rock Basket Electric Sauna Heater
    Huum Hive Mini Electric Sauna Heater Filled With Sauna Stones
    Huum Hive Mini Heating Elements And Included Center Air Tunnel
    Huum Hive Mini Clearance Diagram, Per-Model Safety Distance Table And Bench Embedding Depth, In Inches.
    Huum Hive Mini Installed In A Modern Glass-Front Outdoor Sauna
    Huum Hive Mini Sauna Heater With Curved Wood Safety Rail
    Huum Hive Mini Embedded In A Wood Sauna Platform
    Huum Hive Mini Electric Sauna Heater With The Cage Empty, Showing The Stainless Steel Frame And Heating Elements.
    Huum Hive Mini Electric Sauna Heater Filled With Rounded Sauna Stones On A Plain Background.
    Huum Hive Mini Electric Sauna Heater Shown Beside The Taller Full-Size Huum Hive For Scale.
    Huum Hive Mini Electric Sauna Heater Filled With Stones And Fitted With The Round Wooden Huum Rail Hm Safety Rail.
    Huum Hive Mini Electric Sauna Heater Set Into A Stainless Steel Floor Embedding Flange In A Wood Sauna Behind A Glass Wall.
    Huum Hive Mini Electric Sauna Heater In A Wood Sauna With Tiered Benches And A Tall Window Looking Out To The Sea.
    Outdoor Sauna Cabin With A Dark Exterior And Glass Front, Heated By A Huum Hive Mini Electric Sauna Heater.
    Huum Hive Mini Electric Sauna Heater With Its Wooden Huum Rail Hm Safety Rail In The Corner Of A Sauna, Beside A Bucket And Ladle.
    Huum Hive Mini Electric Sauna Heater Filled With Rounded Sauna Stones, Studio View On A Light Background.
      Fast and Free Shipping

      Free LTL delivery with lift gate service.

      Sizing

      HUUM Sauna Heater Size Calculator

      Powered by HUUM. For personalized help choosing a heater or Saunum system, talk with Sauna Marketplace.

      Product Guide

      The HIVE sauna experience in a smaller footprint

      HIVE Mini is the smaller member of HUUM's stone-first HIVE family. The round basket makes the heater a visual centerpiece while 331 lb of stones store heat and produce the gentle, rich, long-lasting steam that defines the HIVE design. It is a strong fit when you want the feel and appearance of HIVE but do not need the output or 528-lb stone mass of the full-size HIVE.

      The current 2025+ air tunnel version

      Every current HIVE Mini includes HUUM's stainless steel air tunnel as standard equipment. It improves airflow through the center of the heater, supports the heating elements, and helps prevent element overheating. HUUM's product training reports approximately 25% faster room heating and explains that the improved airflow and support are designed to help the elements last longer.

      This is the latest HIVE Mini configuration. The air tunnel, four adjustable legs, and current HIVE installation and operation manual are included with the heater.

      Choose the correct HIVE Mini

      Current U.S. model Room volume Amperage Breaker Copper wire Minimum combustible clearance
      HIVE Mini 6, 6.0 kW 177 to 318 ft³ 25 A 30 A 10 AWG 2.4 in (manual table: 2 2/8 in)
      HIVE Mini 9, 9.0 kW 283 to 460 ft³ 37.5 A 50 A 6 AWG 3.6 in (manual table: 3 17/32 in)
      HIVE Mini 11, 10.6 kW 354 to 566 ft³ 43.75 A 50 A 6 AWG 4.4 in (manual table: 4 11/32 in)

      All three current U.S. models are 240V, single-phase and measure 18 1/8 inches in diameter by 29 17/32 inches high. The manual requires 47 1/4 inches from the top of the heater to the ceiling. For a floor-mounted HIVE Mini, the heater height plus that clearance produces a derived floor-to-ceiling installation envelope of approximately 77 inches. Final sizing, clearances, cable selection, and installation must follow the current U.S. manual and local code.

      What is included and what is required

      Included

      • HUUM HIVE Mini electric sauna heater
      • Four adjustable legs
      • Current-generation air tunnel
      • Current installation and operation manual

      Required and sold separately

      Recommended planning accessories

      • HUUM HIVE safety rail, selecting Rail HM for HIVE Mini. HUUM strongly recommends a safety rail around the heater.
      • HUUM HIVE reflector, selecting Reflect HM when the project needs the HIVE Mini version.
      • HUUM HIVE Mini embedding flange when the heater passes through a bench platform.

      Sizing and installation notes that matter

      • Account for cold surfaces: for each square foot of glass, masonry, tile, brick, concrete, or other uninsulated surface, add 3.3 cubic feet to the calculated sauna volume before selecting the heater.
      • Plan around roughly one hour of warm-up: HUUM says a properly insulated, correctly sized room usually reaches bathing temperature in about an hour. Wi-Fi UKU control lets you start the heater before you enter the sauna.
      • Embedding is allowed: at least 13 25/32 inches, or 13.8 in, of the heater must remain above the bench surface. Use the correct HIVE Mini flange and preserve every manual clearance.
      • No extension box is required for these models: the current 240V HIVE Mini 6, 9, and 11 are within the current UKU's direct capacity. The full-size 12, 15, and 18 kW HIVE models are a different system.

      Load the stones correctly

      Use only clean, durable 2 to 4-inch sauna stones. HUUM's product training instructs installers to keep the air tunnel clear of stones while covering the heating elements completely. Place stones loosely enough for air to move through the heater, do not force stones between the elements, and inspect and repack the stone bed at least annually as stones settle and degrade.

      Warranty

      HUUM's current limited warranty is 3 years for private use and 1 year for commercial use. Heating elements, accessories, sauna stones, and controller sensors are excluded. A licensed professional electrician must install and connect the system, and proof may be required for a claim. Open the current warranty and manuals in the Manuals & Documents tab for the complete terms.

      HIVE Mini questions

      Does HIVE Mini include the controller and stones?

      No. The heater, adjustable legs, air tunnel, and heater manual are included. A compatible UKU control and ten boxes of Stones 24 are required and sold separately.

      Why does HIVE Mini use so many stones?

      The large stone mass stores heat and increases the stone surface available for water. That is what gives HIVE Mini its gentle, abundant, long-lasting steam instead of a sharper burst from a low-stone heater.

      Which model should I choose?

      Start with the finished interior volume, add the manual's 3.3 ft³ adjustment for every square foot of cold or uninsulated surface, then choose the model whose full range contains the adjusted volume. When a room sits near a boundary, review the construction, glazing, ventilation, and desired warm-up time with Sauna Marketplace before ordering.

      Can designers download a HIVE Mini model?

      Yes. HUUM provides DWG, OBJ, SKP, IFC, and 3DS files, including versions with the safety rail, on the official HIVE Mini resources page.

      1 review for HUUM HIVE Mini Electric Sauna Heater | 6, 9 & 10.6 kW

      1. Verified owner Lawrence (verified owner) –

        It’s a beaut!

        (1) (0)
      Return To Top

      THIS IS A GREAT CHOICE! We think you'd also like:

      HUUM HIVE Rock Basket Electric Sauna Heater 12kw 15kw 18kw

      HUUM HIVE Electric Sauna Heater with Included Air Tunnel | 12, 15 & 18 kW

      HUUM
      12 kW
      15 kW
      18 kW
      Price range: $2,848.00 through $3,356.00
      This product has multiple variants. The options may be chosen on the product page
      Compare
