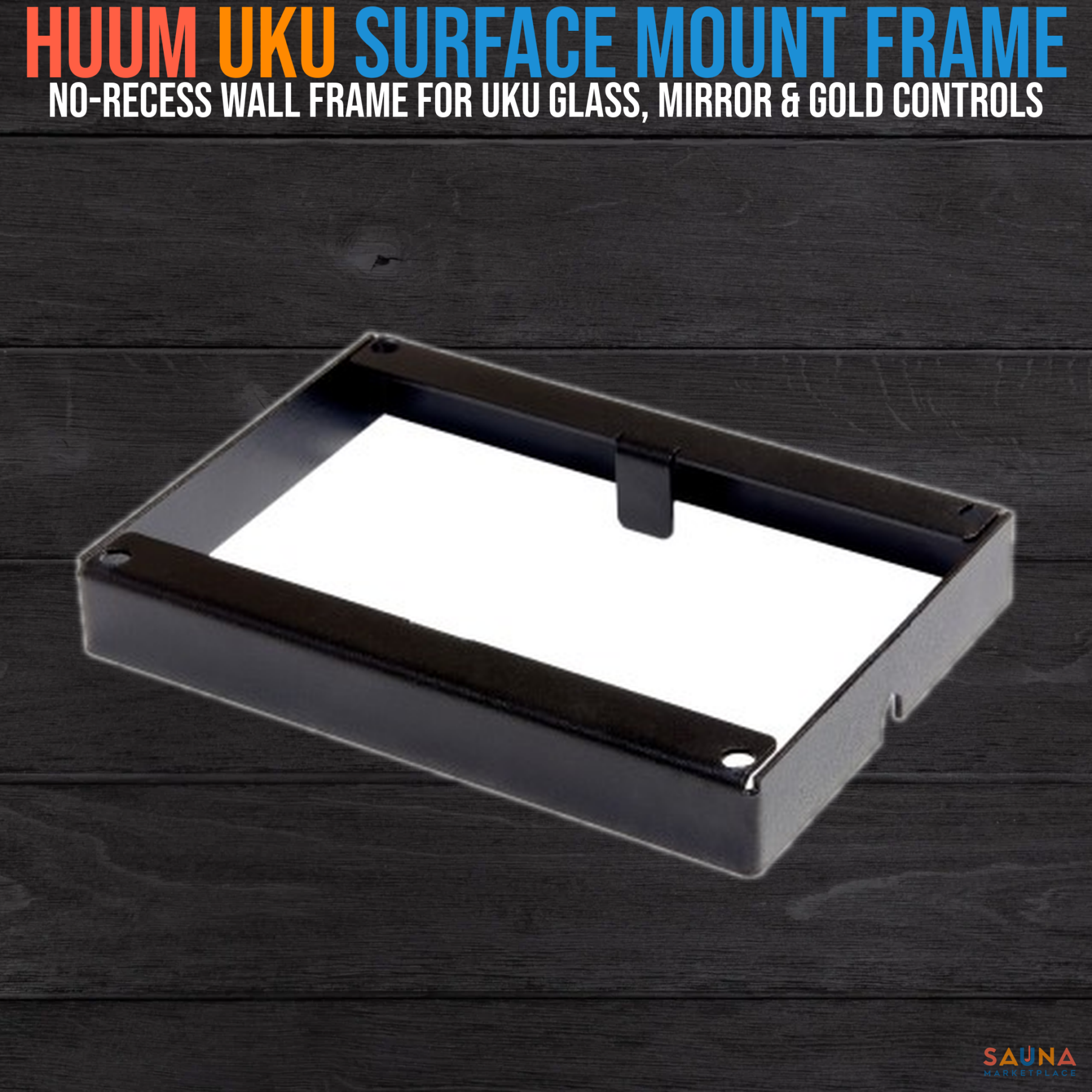

Huum Uku Surface Mounting Frame For Glass, Mirror And Gold Sauna Controls On Black Sauna Cladding.
Huum Uku Surface Mounting Frame | Uku Glass, Mirror And Gold - Image 2
Click to enlarge
Expert help that stays with you

Whether you’re choosing one component or planning the whole room, small details can become expensive problems once installation begins. We know the products we sell and the questions to ask early, helping catch mismatched components, overlooked requirements, and installation issues while they are still easy to fix.

Our job does not end when your order ships. We stay available through installation and beyond. If something needs attention, we stay involved, work the problem, and help see it through.

We want you to feel good about choosing Sauna Marketplace long after your first session, and confident recommending us to a friend. That standard guides the advice we give, the products we sell, and the way we take care of our customers.

Sauna and heater customers also receive free shipping on sauna accessories for life.

Planning a sauna, or need help with one you purchased from us? Our founders have assembled many of the saunas we sell, visited the manufacturers, and use these products every day. New customers and existing Sauna Marketplace sauna and heater owners can Book a Ben consultation.

Specs
Weight5 lbs
Dimensions3.35 × 4.72 × 0.47 in
Includes

What Is Included

All configurations

Included with purchase

UKU frame, installation manual.

Contents vary by configuration. Check the row for the option selected above.

How It Fits

How This Product Fits the System

What it is used for

The external control system for compatible HUUM electric heaters. Select the correct local or Wi-Fi package and add an extension box when the heater load requires one.

What to plan

  • Match heater family, voltage, phase, maximum load, power unit, sensors, and control generation as one system.
  • Confirm whether the selected package includes the display, main module, sensors, cables, and any required extension box.
  • Sensor placement, door interlock, remote-start rules, and cable routing must follow the current control manual.

Designed to work with

Model-specific replacements and compatible system components.

Products that use this item

This item is used by the following products.

Attachments
Gallery
Huum Uku Surface Mounting Frame For Glass, Mirror And Gold Sauna Controls On Black Sauna Cladding.
Huum Uku Surface Mounting Frame | Uku Glass, Mirror And Gold - Image 2
Click to enlarge

    HUUM UKU Surface Mounting Frame | UKU Glass, Mirror and Gold

    Stainless steel bezel that mounts a HUUM UKU Glass, Mirror or Gold control panel flat on the wall, with no recess cut into the wall.

    Build Your Quote:

    $103.00

    Share your selected heater size and add-ons. Prices and availability are confirmed when the link is opened.

    Zero Interest Payments:

    Buy Now, Pay Later with premium financing packages only available on Sauna Marketplace.

    Pay with HSA/FSA:

    We teamed up with FLEX to make HSA/FSA payments easier than ever.

    HUUM

    The HUUM UKU surface mounting frame is a stainless steel bezel used when a UKU Glass, Mirror or Gold control panel is installed directly onto the wall surface rather than recessed into it. HUUM describes it as enabling the panel to be attached to the wall without prior deepening of the wall.

    Use it either to complete a new installation where cutting into the wall is not practical, such as a finished room or a cabin with thin staves, or to change the mounting style of a UKU control that is already in place.

    The rear housing of the glass panel seats inside the frame with the screw holes lined up, bent edges facing the panel and the cable opening facing the wall. The cable opening must face downwards. The frame is screwed to the wall and the glass panel is then fitted to it.

    Fits UKU Glass, Mirror and Gold panels only. The UKU control is sold separately. Limited 5-year warranty.
