Specs

Weight	3.1 lbs
Dimensions	26.0 × 10.0 × 2.0 in
Model	Flange HM
Part Number	H3002022
Material	Stainless steel
Included Components	HIVE Mini Embedding Flange, Installation manual, 5-Year limited warranty
Installation Manual	Installation Resources
Residential Warranty	Limited 5-Year Warranty
UPC	4745090279139
For use with	HIVE Mini sauna heaters
Inside diameter	18.31 in
Outside diameter	24.61 in

Includes

What Is Included

Includes the product and configuration selected above. Hardware, controls, stones, venting, and accessories are not included unless specifically listed.

See How It Fits for required and compatible products.

How It Fits

How This Product Fits the System

What it is used for

A heater-system accessory for the application shown above. Match the model, part number, dimensions, and installation instructions before ordering.

What to plan

Start with the heater, chimney, or control model, not the brand alone, then confirm the accessory part number and configuration.
Optional accessories are not required unless the selected product or installation manual says otherwise.
Replacement and installation parts must follow the current system manual, clearances, and local code.

Products that use this item

This item is used by the following products.

HUUM HIVE Mini Electric Sauna Heater | 6, 9 & 10.6 kW Optional accessory for the linked product.

Gallery

Click Image, Then Scroll! For the best experience, click on any image then swipe or use arrow keys to browse.

HUUM Flange HM | HIVE Mini Embedding Flange

Name: HUUM Flange HM | HIVE Mini Embedding Flange | SaunaMarketplace.com
SKU: H3002022
Price: 384.00 USD
Availability: InStock

Stainless steel embedding flange for the HUUM HIVE Mini electric heater, used when the heater is set partly down into the sauna bench. Measures 18.31 in inside diameter and 24.61 in outside diameter.

Build Your Quote:

$384.00

Zero Interest Payments:

Pay with HSA/FSA:

Built for

HUUM HIVE Mini Electric Sauna Heater | 6, 9 & 10.6 kW
The heater this flange is made for, when it is set partly into the bench. See the full product and build your package →

What’s included

HIVE Mini embedding flange
Installation and operation manual

What it does

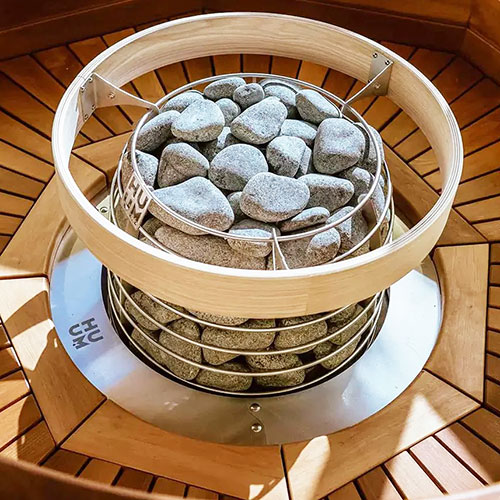

The Flange HM is the trim piece that finishes the opening when a HIVE Mini is installed partly inside the bench. In HUUM’s words: “The embedding flange is useful when you are planning to install your HIVE heater partly inside the sauna bench. It is made of stainless steel and it covers up the wooden edges around the heater, leaving the final result looking refined and smooth.”

Which heater it belongs to

This is the HIVE Mini flange, listed by HUUM under Operating Accessories on the HIVE Mini electric heater page. The full-size HIVE electric heater takes the larger Flange H, at 22.64 in inside diameter against 18.31 in here, so the two are not interchangeable. HIVE Flow is a different, wood-burning family and does not use this part.

Stylishly covers wood edges around embedded heaters
For use with HIVE Mini sauna heaters
Stainless steel construction

Specifications

Model	Flange HM
Part number	H3002022
UPC	4745090279139
For use with	HIVE Mini sauna heaters
Inside diameter	18.31 in
Outside diameter	24.61 in
Material	Stainless steel
Weight	3.1 lb

Common questions

Do I need an embedding flange?

An embedding flange is only needed when the sauna heater is being set partly down inside the bench or platform rather than standing free on the floor. HUUM describes the Flange HM as useful “when you are planning to install your HIVE heater partly inside the sauna bench”, where the stainless ring covers the cut wooden edges around the heater. A HIVE Mini standing openly on the sauna floor does not need one.

What size is the HUUM Flange HM?

The HUUM Flange HM measures 18.31 in inside diameter and 24.61 in outside diameter. It is stainless steel, weighs 3.1 lb, and HUUM specifies it for HIVE Mini sauna heaters.

Will the HIVE Mini flange fit a full-size HIVE heater?

The HIVE Mini flange does not fit the full-size HIVE heater, which takes the separate Flange H. Flange HM (part H3002022) measures 18.31 in inside diameter and 24.61 in outside diameter, while Flange H (part H3003022) measures 22.64 in inside diameter and 28.94 in outside diameter.
