Includes

What Is Included

10.5 KW

Included with purchase

10.5 kW sauna heater 2 prop blocks (for removal of sauna rib slats) installation and operation manual.

Required separately

UKU control, 165 lb stones (quantity 5 × 33 lb of 1" - 2" stones boxes).

6 KW

Included with purchase

6.0 kW sauna heater 2 prop blocks (for removal of sauna rib slats) installation and operation manual.

Required separately

UKU control, 165 lb stones (quantity 5 × 33 lb of 1" - 2" stones boxes).

9 KW

Included with purchase

9.0 kW sauna heater 2 prop blocks (for removal of sauna rib slats) installation and operation manual.

Required separately

UKU control, 165 lb stones (quantity 5 × 33 lb of 1" - 2" stones boxes).

3.5 KW

Included with purchase

3.5 kW sauna heater 2 prop blocks (for removal of sauna rib slats) installation and operation manual.

Required separately

UKU control, 133 lb stones (quantity 4 × 33 lb of 1" - 2" stones boxes).

Contents vary by configuration. Check the row for the option selected above.

Technical Specifications

Technical Specifications

At a Glance

At a Glance
Heat Source

Electric
Sauna Room Size

3.5 kW: 106 to 177 cu ft · 6 kW: 177 to 318 cu ft · 9 kW: 283 to 460 cu ft · 10.5 kW: 354 to 566 cu ft
Sauna Ceiling Height

At least 86.6 in floor to ceiling
Power

3.5, 6, 9 and 10.5 kW
Power Supply

240 V single-phase or 208 V single-phase
Controls

Wall control
Phone App

Yes, with the Wi-Fi control
Mounting

Floor-standing or Wall-mounted
Stones

132 to 165 lb, by size
Warranty

3 years home use, 1 year commercial use (HUUM Limited Warranty v4)
Made in

Estonia

Model & Application

Model & Application
Brand

HUUM
Catalog Product

HUUM CLIFF & CLIFF Mini Electric Sauna Heater | 3.5 to 10.5 kW
Heater Type

Electric sauna heater
Model Number

240 V / 1 phase: CLIFF 11; 6 kW / 240 V / 1 phase: CLIFF 6; 9 kW / 240 V / 1 phase: CLIFF 9; 240 V / 1 phase: CLIFF MINI 4
SKU / Part Number

240 V / 1 phase: H1004032; 6 kW / 240 V / 1 phase: H1004012; 9 kW / 240 V / 1 phase: H1004022; 240 V / 1 phase: H1005012

Sauna Sizing

Sauna Sizing
Maximum Room Volume

240 V / 1 phase: 566 ft³; 6 kW / 240 V / 1 phase: 318 ft³; 9 kW / 240 V / 1 phase: 460 ft³; 240 V / 1 phase: 177 ft³
Minimum Room Volume

240 V / 1 phase: 354 ft³; 6 kW / 240 V / 1 phase: 177 ft³; 9 kW / 240 V / 1 phase: 283 ft³; 240 V / 1 phase: 106 ft³

Electrical

Electrical
Minimum Circuit

240 V / 1 phase, 9 kW / 240 V / 1 phase: 50 A; 6 kW / 240 V / 1 phase: 30 A; 240 V / 1 phase: 20 A
Phase

1 phase
Rated Current

240 V / 1 phase: 43.75 A; 6 kW / 240 V / 1 phase: 25 A; 9 kW / 240 V / 1 phase: 37.5 A; 240 V / 1 phase: 14.58 A
Rated Power

6 kW / 240 V / 1 phase: 6 kW; 9 kW / 240 V / 1 phase: 9 kW
Supply Voltage

240 V
Wire Size

240 V / 1 phase, 9 kW / 240 V / 1 phase: 8 AWG; 6 kW / 240 V / 1 phase: 10 AWG; 240 V / 1 phase: 12 AWG

Dimensions & Weight

Dimensions & Weight
Assembled Dimensions

240 V / 1 phase, 6 kW / 240 V / 1 phase, 9 kW / 240 V / 1 phase: 11.25" W x 11.25" W x 38.25" H; 240 V / 1 phase: 6.75" W x 11.5" D x 38.5" H
Heater Depth

240 V / 1 phase, 6 kW / 240 V / 1 phase, 9 kW / 240 V / 1 phase: 10.63 in; 240 V / 1 phase: 6.3 in
Heater Height

38.39 in
Heater Weight

37.5 lb
Heater Width

10.63 in
Minimum Host-Room Height

85.63 in
Product Weight

240 V / 1 phase: 37.5 lbs; 6 kW / 240 V / 1 phase, 9 kW / 240 V / 1 phase: 35 lbs; 240 V / 1 phase: 33 lbs

Installation Clearances

Installation Clearances
Ceiling-Clearance Reference Height Above Finished Floor

38.39 in
Ceiling-Clearance Reference Plane

Top Of Rocks
Left-Side Clearance

240 V / 1 phase: 14.96 in; 6 kW / 240 V / 1 phase, 240 V / 1 phase: 2.36 in; 9 kW / 240 V / 1 phase: 9.45 in
Right-Side Clearance

240 V / 1 phase: 14.96 in; 6 kW / 240 V / 1 phase, 240 V / 1 phase: 2.36 in; 9 kW / 240 V / 1 phase: 9.45 in
Combustible Side Clearance

240 V / 1 phase: 14.96 in; 6 kW / 240 V / 1 phase, 240 V / 1 phase: 2.36 in; 9 kW / 240 V / 1 phase: 9.45 in
Minimum Installation Envelope Width

240 V / 1 phase: 40.55 in; 6 kW / 240 V / 1 phase, 240 V / 1 phase: 15.35 in; 9 kW / 240 V / 1 phase: 29.53 in
Top of Rocks Above Finished Floor

38.39 in

Included & Required

Included & Required
Included Components

240 V / 1 phase: 10.5kW sauna heater 2 prop blocks (for removal of sauna rib slats) Installation and operation manual; 6 kW / 240 V / 1 phase: 6.0kW sauna heater 2 prop blocks (for removal of sauna rib slats) Installation and operation manual; 9 kW / 240 V / 1 phase: 9.0kW sauna heater 2 prop blocks (for removal of sauna rib slats) Installation and operation manual; 240 V / 1 phase: 3.5kW sauna heater 2 prop blocks (for removal of sauna rib slats) Installation and operation manual
Required, Not Included

240 V / 1 phase, 6 kW / 240 V / 1 phase, 9 kW / 240 V / 1 phase: UKU Control, 165 lbs stones (Qty 5 x 33 lbs of 1" - 2" stones boxes); 240 V / 1 phase: UKU Control, 133 lbs stones (Qty 4 x 33 lbs of 1" - 2" stones boxes)

Certifications

Certifications
Certifications & Listings

CE, IPX4, SGS

Warranty

Warranty
Residential Warranty

3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

Use the attached current manual and a qualified installer for final sizing, wiring, clearances, venting, and local-code compliance.

How It Fits

How This Product Fits the System

What it is used for

An electric sauna heater that heats the sauna room and stone mass for traditional löyly. Choose the output from adjusted room volume, then match the exact voltage, phase, circuit, controls, stones, clearances, and ventilation.

What to plan

  • Size from adjusted sauna volume, including the effect of glass, masonry, and other uninsulated surfaces; do not size from floor area alone.
  • Match the selected model's power or fuel, voltage, phase, circuit, wire, control, stone, and venting requirements before ordering.
  • Treat clearances, ceiling reference planes, ventilation, guarding, floor protection, and service access as one room-layout decision.
  • Follow the current installation manual and use a qualified installer.

Required separately

Complete the system with these items.

Designed to work with

Model-specific replacements and compatible system components.

Optional accessories

Optional upgrades and accessories.

Sauna packages that offer this heater

Available heater options for these sauna packages.

Other heater options

Compare these options; sizing, power, controls, clearances, and stones may differ.

Attachments
Legacy manuals for older installations

Use these only when the document revision matches the installed product.

Gallery
Huum Cliff Electric Sauna Heater Shown Large With A Smaller Cliff Mini On Black Sauna Cladding, With Verified Kw, Cubic-Foot Coverage, And Dimensions.
Huum Cliff Electric Sauna Heater Filled With Stones
Huum Cliff Mini Wall-Mounted Electric Sauna Heater

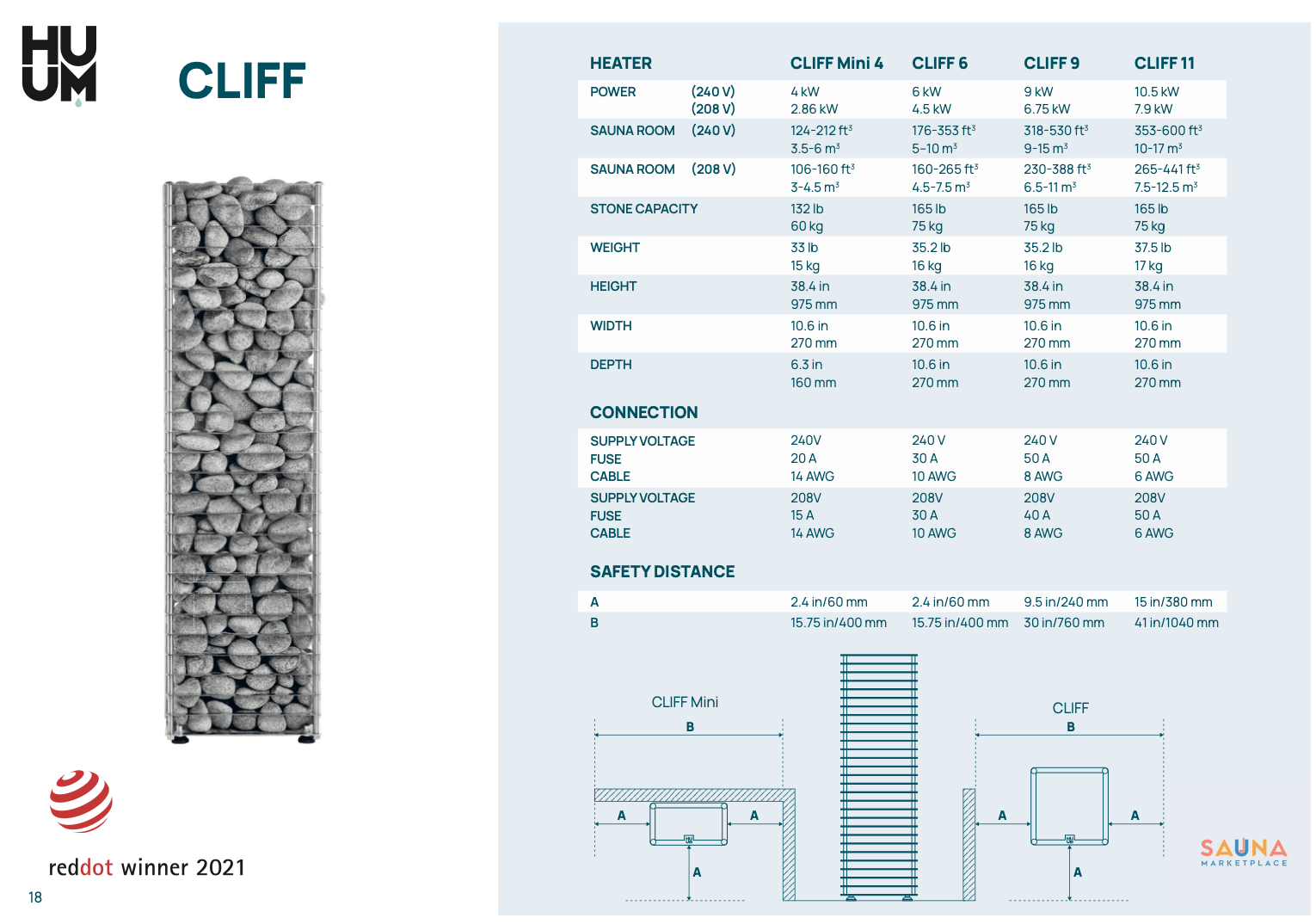

Huum Cliff And Cliff Mini Clearance Diagram And Per-Model Safety Distance Table, In Inches.

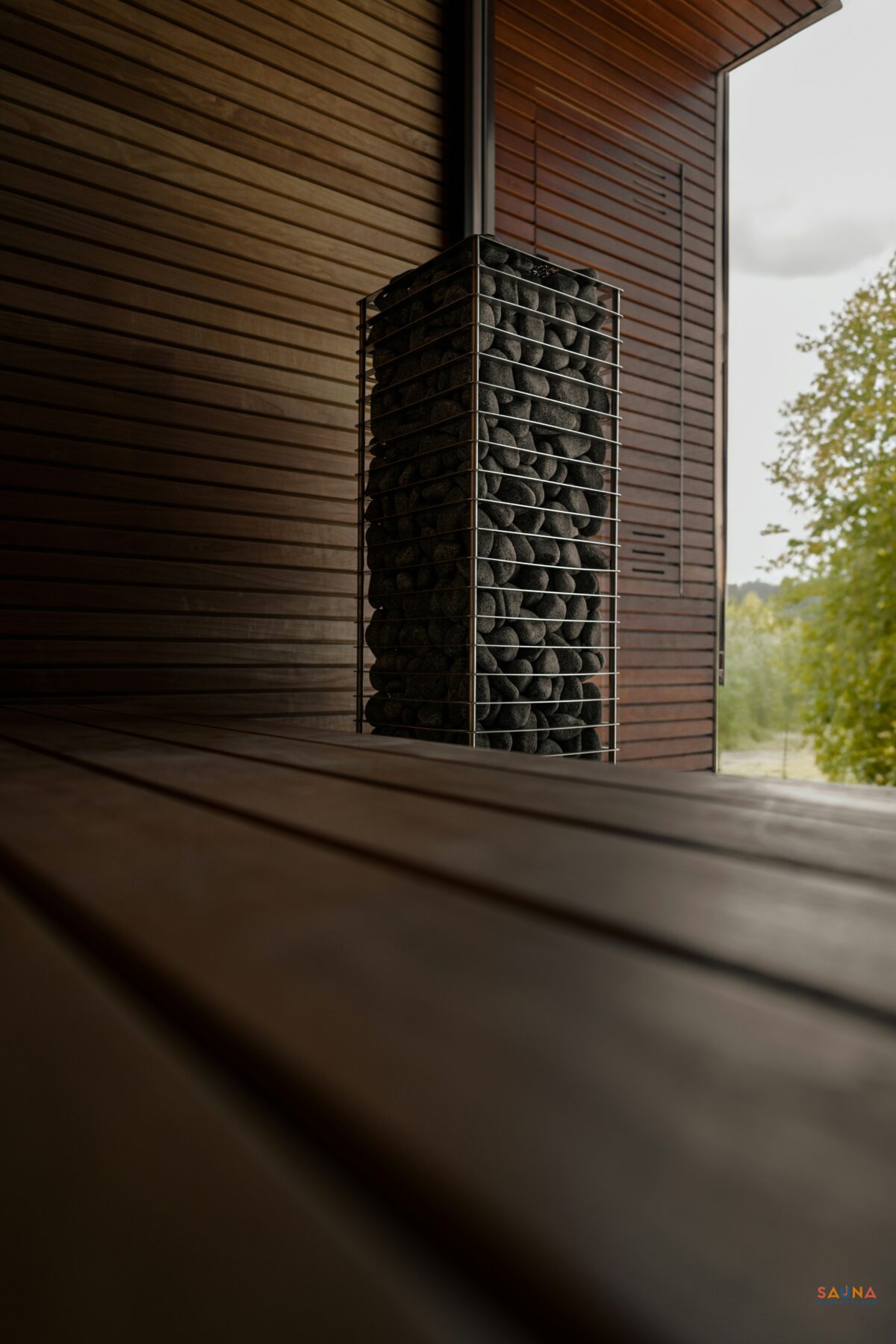

Huum Cliff Installed In A Sauna

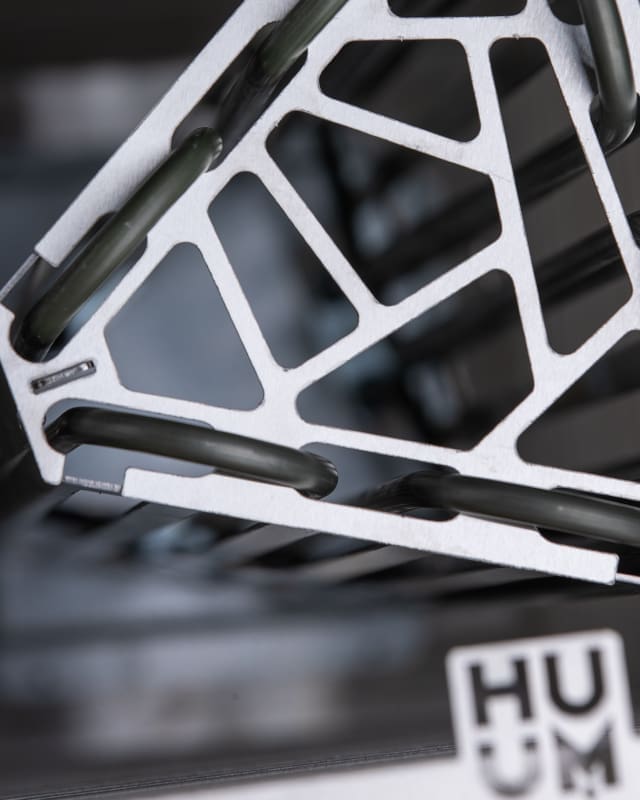

Close-Up Of The Perforated Element Plate And Heating Elements Inside The Huum Cliff Sauna Heater.
Close-Up Of Sauna Stones Inside The Slotted Steel Frame Of The Huum Cliff Sauna Heater.
Detail Of The Steel Frame And Huum Badge On The Huum Cliff Mini Electric Sauna Heater.
Looking Down At The Sauna Stones In The Top Of The Huum Cliff Electric Sauna Heater.
Huum Cliff Electric Sauna Heater Without Stones, Showing The Vertical Heating Elements.
Close-Up Of The Rounded Sauna Stones Held In The Huum Cliff Steel Frame.
Detail Of The Huum Badge And Slotted Steel Frame On The Huum Cliff Sauna Heater.

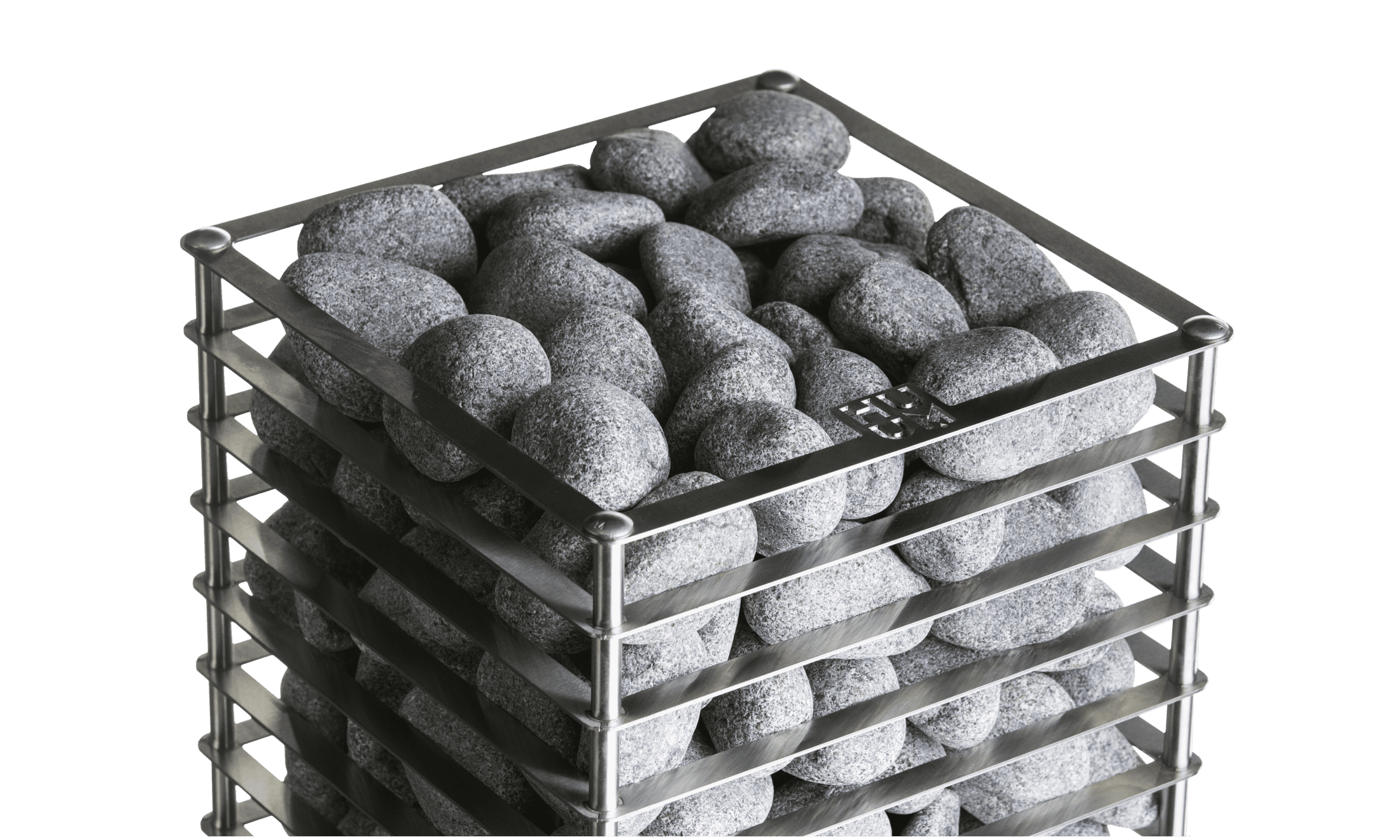

Top Detail Of The Huum Cliff Mini Electric Sauna Heater Stone Cage, Showing The Heating Elements And Stainless Steel Frame.
Huum Cliff Mini Electric Sauna Heater Without Stones, Its Heating Elements Visible Inside The Tall Stainless Steel Cage.
Huum Cliff Electric Sauna Heater Without Stones, Showing The Heating Elements Inside The Tall Square Stainless Steel Cage.
Huum Cliff And Huum Steel Electric Sauna Heaters Side By Side Without Stones, Comparing The Open Cliff Cage With The Slotted Steel Body.
Huum Cliff Electric Sauna Heater Filled With Sauna Stones, Full-Height Studio View On White.
Huum Cliff Mini Electric Sauna Heater Filled With Sauna Stones, Photographed On A White Background.

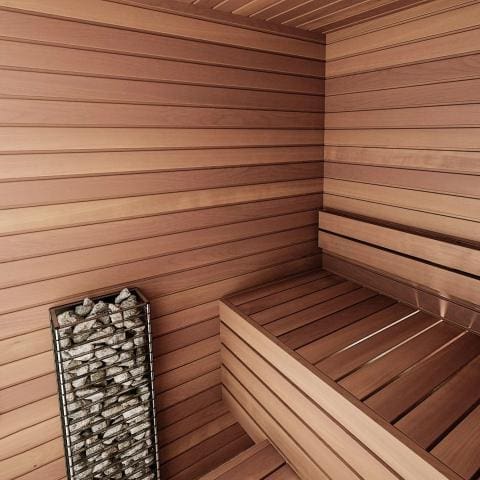

Huum Cliff Mini Electric Sauna Heater Inside A Small Wood Sauna Cabin With A Glass Door.
Full-Height Studio View Of The Huum Cliff Mini Electric Sauna Heater Filled With Sauna Stones.
Huum Cliff Electric Sauna Heater Beside White Sauna Benches Lit With Blue Led Light.

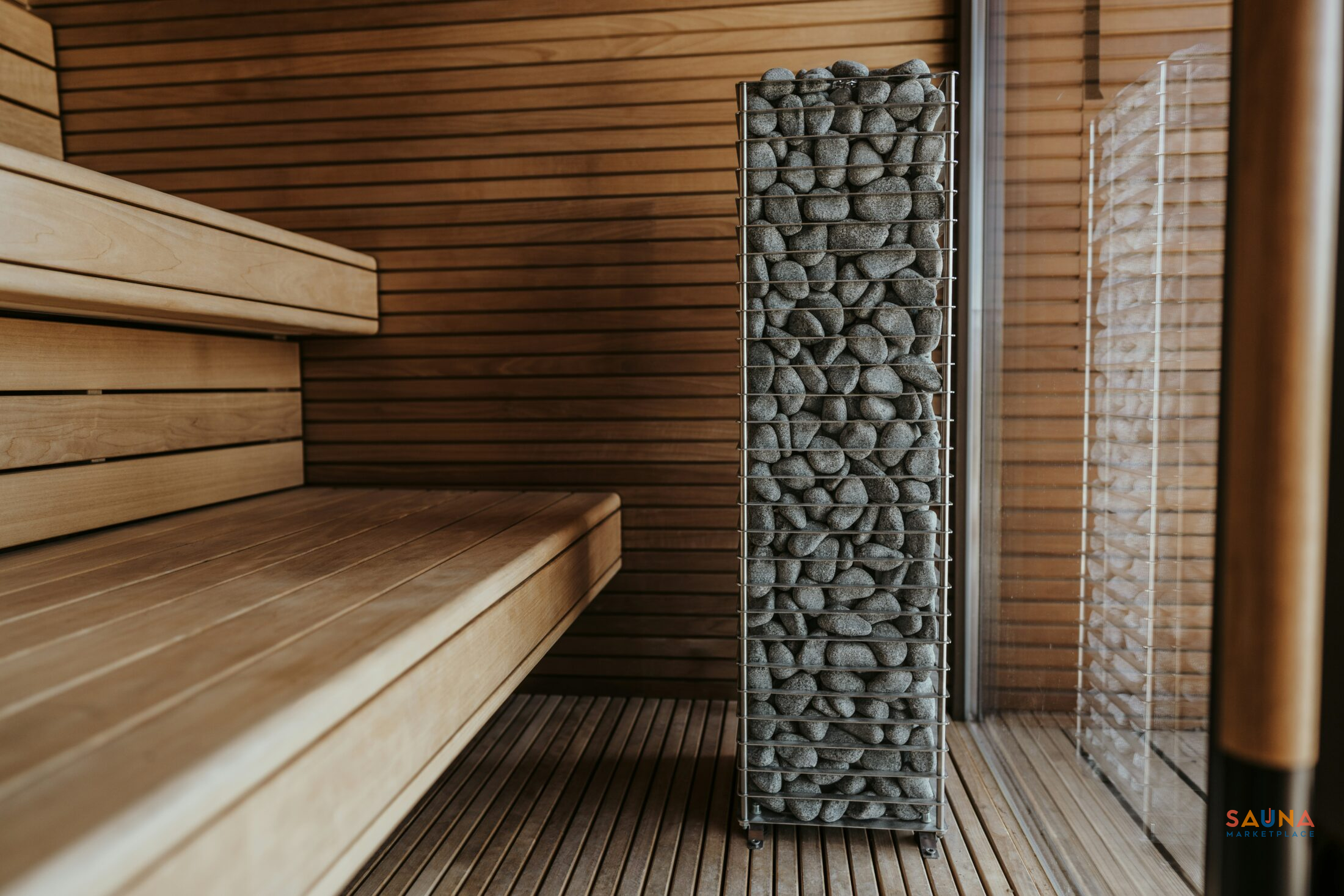

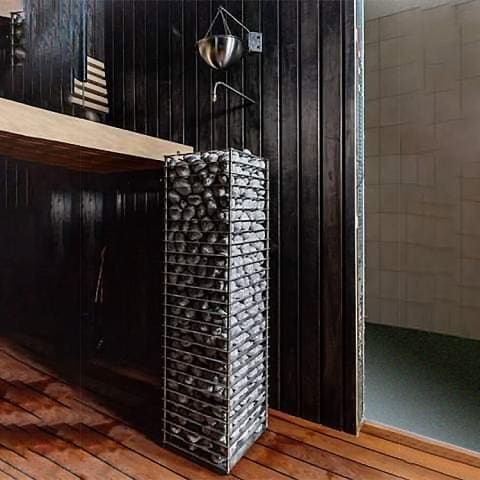

Huum Cliff Electric Sauna Heater Installed Against The Dark Wood Wall Of A Sauna, Beside A Bench.

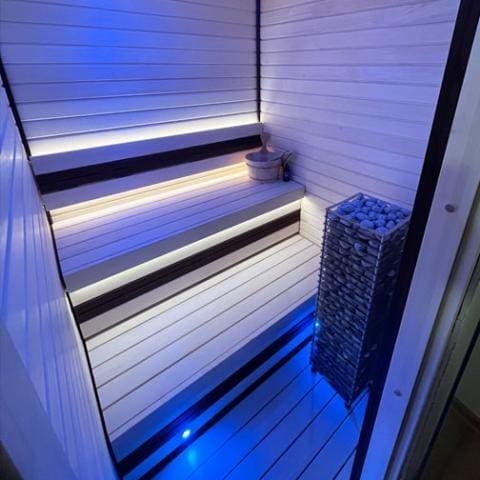

Huum Cliff Electric Sauna Heater Next To Tiered Sauna Benches With Blue Led Strip Lighting.

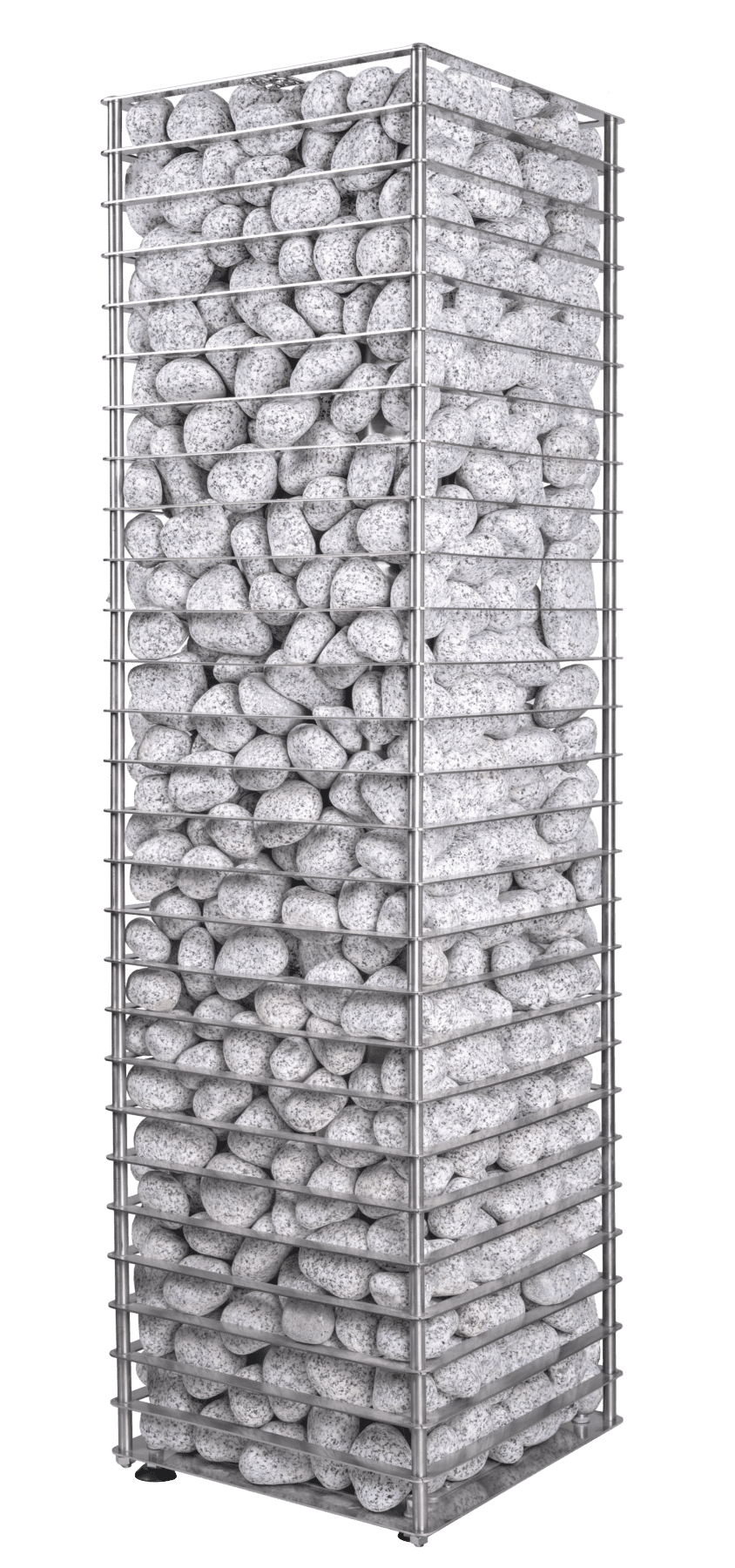

Full-Height Studio View Of The Huum Cliff Electric Sauna Heater Filled With Sauna Stones.

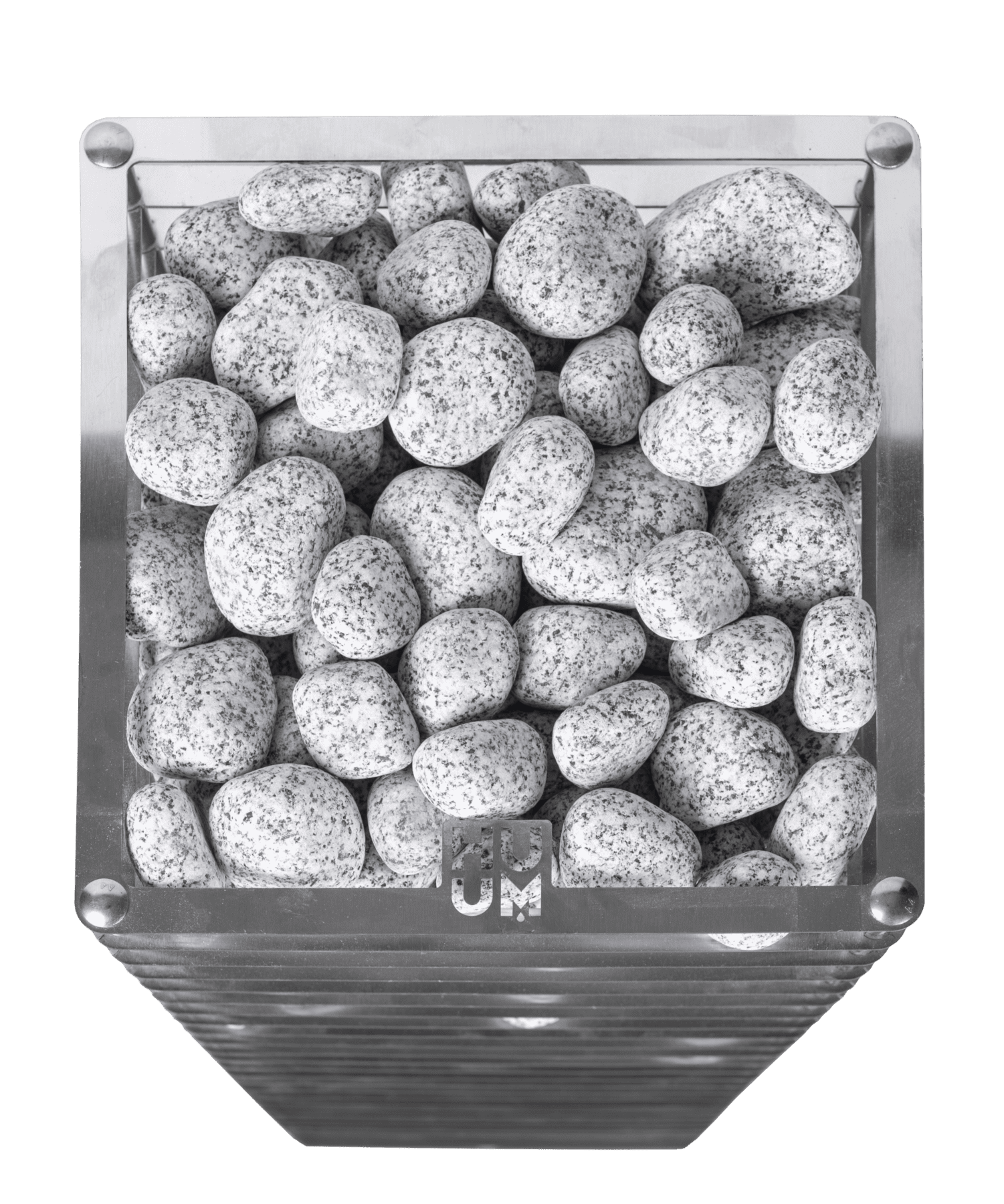

Top-Down View Of The Sauna Stones Inside The Square Stainless Steel Cage Of The Huum Cliff Electric Sauna Heater.

    HUUM CLIFF & CLIFF Mini Electric Sauna Heater | 3.5 to 10.5 kW

    HUUM CLIFF brings a tall, open stone surface to rooms where floor area and clearances are tight. Choose wall-mounted CLIFF Mini 3.5 kW or floor-standing CLIFF 6, 9, and 10.5 kW for current U.S. manual room ranges from 106 to 566 cubic feet. UKU control and model-specific 1 to 2-inch stones are required and sold separately.

    We recommend UKU Wi-Fi Glass, preselected for new packages.

    Build A Quote:

    CLIFF Core DROP HIVE HIVE Mini STEEL

    See your heater and options in 3D ↑

    Choose a HUUM UKU controller (required)

    Your heater will not run without a UKU. Local mounts outside the hot room and runs the sauna from its own panel. Wi-Fi does the same and adds scheduling and remote start from the HUUM app, which is what you want when the sauna is not ten steps from the couch. Every finish below is the same controller underneath, so pick on looks and budget. Already own a UKU? Take the first option and we will check yours against this heater before anything ships. We recommend UKU Wi-Fi Glass, preselected for new packages.

    I already own a compatible HUUM UKU controller package I already own a compatible HUUM UKU controller package UKU Local, Black +$1,062.00 UKU Local, BlackWall-mounted UKU display for turning the heater on and setting time and temperature. UKU Local, Wood +$1,375.00 UKU Local, WoodWall-mounted UKU display for turning the heater on and setting time and temperature. UKU Wi-Fi, Black +$1,324.00 UKU Wi-Fi, BlackWall-mounted UKU display, plus remote control by app over Wi-Fi. The HUUM app is free with the Wi-Fi package. UKU Wi-Fi, Wood +$1,637.00 UKU Wi-Fi, WoodWall-mounted UKU display, plus remote control by app over Wi-Fi. The HUUM app is free with the Wi-Fi package. UKU Wi-Fi, Glass (recommended) +$1,724.00 UKU Wi-Fi, Glass (recommended)Wall-mounted UKU display, plus remote control by app over Wi-Fi. The HUUM app is free with the Wi-Fi package. UKU Wi-Fi, Mirror +$1,987.00 UKU Wi-Fi, MirrorWall-mounted UKU display, plus remote control by app over Wi-Fi. The HUUM app is free with the Wi-Fi package. UKU Wi-Fi, Gold +$1,987.00 UKU Wi-Fi, GoldWall-mounted UKU display, plus remote control by app over Wi-Fi. The HUUM app is free with the Wi-Fi package. UKU Wi-Fi, Glass (recommended)(+$1,724.00)
    Add the required stones: CLIFF Mini 3.5 kW

    The CLIFF Mini 3.5 kW holds about 132 lb of 1 to 2 inch stones, and stones do not come in the box with the heater. That comes to 4 boxes. Stack them loosely so air can move between them and the elements stay covered, and plan on restacking once a year.

    I already have the approved 1–2 inch stones for CLIFF Mini 3.5 kW I already have the approved 1–2 inch stones for CLIFF Mini 3.5 kW 4 × 33-lb boxes of HUUM STONES 12 (132 lb supplied) +$320.00 4 × 33-lb boxes of HUUM STONES 12 (132 lb supplied)(+$320.00)
    Add the required stones: CLIFF 6/9/10.5 kW

    The CLIFF 6, 9 and 10.5 kW holds about 165 lb of 1 to 2 inch stones, and stones do not come in the box with the heater. That comes to 5 boxes. Stack them loosely so air can move between them and the elements stay covered, and plan on restacking once a year.

    I already have the approved 1–2 inch stones for CLIFF 6/9/10.5 kW I already have the approved 1–2 inch stones for CLIFF 6/9/10.5 kW 5 × 33-lb boxes of HUUM STONES 12 (165 lb supplied) +$400.00 5 × 33-lb boxes of HUUM STONES 12 (165 lb supplied)(+$400.00)
    Add Flange to embed heater in bench or floor
    None Embedding Flange for CLIFF/STEEL Series Sauna Heaters +$331.00
    Rail C – Safety Rail for CLIFF Series Sauna Heaters
    None Safety Rail for CLIFF Series Sauna Heaters +$409.00
    Add Reflect C – Allows for heater installation closer to wall
    None Reflec C - Allows for heater installation closer to wall +$294.00
    Cable Extensions

    Add flexibility to your installation with 75′ cables.

    Free quote for Sauna Wood

    Did you know Sauna Marketplace specializes in premium Sauna Woods? Whether you’re looking for the highest grade material, a specific look, or to save money we have something for you.

    Share your selected options and add-ons. Prices and availability are confirmed when the link is opened.

    Plan the details around your heater

    Open an accessory to check its fit, mounting and manual. Rails help prevent accidental contact; they do not replace the heater’s required clearances.

    Choose your heater size above. These accessories are for full-size CLIFF; they do not fit CLIFF Mini.

    Installation checklist, manuals and support

    Keep the selected model and required components together before your installer starts.

    Open your installation pack

    Your orders and saved documents · Contact Sauna Marketplace · 844-565-1113

    We added you to this product's waitlist and we'll send you an email when the product is available.

    Leave Waitlist

    This product is currently sold out.

    No worries! Enter your email, and we'll let you know as soon as it's back in stock.

    Fulfillment Partner:

    We handle your order from checkout to delivery. We sell at the lowest price the manufacturers allow, and we're a call away long after it arrives.

    Bathing Distribution Center - Chicago
    Pay over time:

    Choose Affirm at checkout to see your payment options. Approval and terms depend on eligibility.

    Pay with HSA/FSA:

    We teamed up with FLEX to make HSA/FSA payments easier than ever.

    HUUM
    Why buy a HUUM Sauna Heater from Sauna Marketplace?

    Why choose HUUM CLIFF

    CLIFF is the HUUM stone tower for narrow rooms. Its open sides keep the stones in view, and the slender body and short clearances leave more space for benches and walking.

    Choose the correct model

    ModelRoom sizeCurrent drawBreakerWireStones
    CLIFF Mini, 3.5 kW (wall-mounted)106 to 177 cu ft14.58 A20 A12 AWG132 lb, 4 boxes
    CLIFF 6 kW177 to 318 cu ft25 A30 A10 AWG165 lb, 5 boxes
    CLIFF 9 kW283 to 460 cu ft37.5 A50 A8 AWG165 lb, 5 boxes
    CLIFF 10.5 kW354 to 566 cu ft43.75 A50 A8 AWG165 lb, 5 boxes

    All CLIFF models take 1 to 2-inch stones. CLIFF Mini is 12.2 in wide, 6.3 in deep and 38.4 in tall and hangs on the wall. Full-size CLIFF is 10.6 in wide, 10.6 in deep and 38.4 in tall and stands on the floor.

    What completes the system

    • A HUUM UKU Local or UKU Wi-Fi control
    • Stones: 4 boxes for CLIFF Mini, 5 boxes for full-size CLIFF
    • Installation by a licensed electrician with heat-resistant cable

    HUUM’s limited warranty is 3 years for private use and 1 year for commercial use. Heating elements, accessories, stones and controller sensors are excluded.

    No reviews of this product yet

    Bought this one? Yours would be the first. Every rating goes through the same check before it appears.

    Reviews of Sauna Marketplace

    What customers say about working with our team. Names are shortened to a first name and last initial, or to initials.

    ★★★★★

    “Thank you for the great customer service! I really appreciate it!”

    Thomas J.
    ★★★★★

    “I appreciate your stellar customer service!!!”

    Jeff H.
    ★★★★★

    “The Ben(s) have been absolutely amazing to work with. From emails, to phone calls, to (late) night texts, they have literally answered every question with care, complete accuracy and honesty. And, sometimes a bit of humor. Seriously, couldn't recommend them and the entire SaunaMarketplace team highly enough if you are in the market for a sauna, a heater or any type of related item.”

    Peter G.

    Write a review

    Bought it from us? Your review shows as a verified buyer. Every rating goes through the same check before it appears, and your name is shortened to a first name and last initial.

    Your rating

    You have to be logged in to be able to add photos to your review.

    Planning guides: Sauna heater calculatorElectric sauna heater reviews

    Expert help that stays with you

    Small details become expensive problems once installation begins. We ask the questions early, so a mismatched part, an overlooked requirement or an installation issue gets caught while it is still easy to fix.

    Our job does not end when your order ships. We stay available through installation and beyond. If something needs attention, we stay involved, work the problem, and help see it through.

    We want you to feel good about choosing Sauna Marketplace long after your first session, and confident recommending us to a friend. That standard guides the advice we give, the products we sell, and the way we take care of our customers.

    Sauna and heater customers also receive free shipping on sauna accessories for life.

    Planning a sauna, or need help with one you purchased from us? Our founders have built saunas from the crate up and both run saunas at home. New customers and existing Sauna Marketplace sauna and heater owners can Open the 3D planner.

    Includes

    What Is Included

    10.5 KW

    Included with purchase

    10.5 kW sauna heater 2 prop blocks (for removal of sauna rib slats) installation and operation manual.

    Required separately

    UKU control, 165 lb stones (quantity 5 × 33 lb of 1" - 2" stones boxes).

    6 KW

    Included with purchase

    6.0 kW sauna heater 2 prop blocks (for removal of sauna rib slats) installation and operation manual.

    Required separately

    UKU control, 165 lb stones (quantity 5 × 33 lb of 1" - 2" stones boxes).

    9 KW

    Included with purchase

    9.0 kW sauna heater 2 prop blocks (for removal of sauna rib slats) installation and operation manual.

    Required separately

    UKU control, 165 lb stones (quantity 5 × 33 lb of 1" - 2" stones boxes).

    3.5 KW

    Included with purchase

    3.5 kW sauna heater 2 prop blocks (for removal of sauna rib slats) installation and operation manual.

    Required separately

    UKU control, 133 lb stones (quantity 4 × 33 lb of 1" - 2" stones boxes).

    Contents vary by configuration. Check the row for the option selected above.

    Technical Specifications

    Technical Specifications

    At a Glance

    At a Glance
    Heat Source

    Electric
    Sauna Room Size

    3.5 kW: 106 to 177 cu ft · 6 kW: 177 to 318 cu ft · 9 kW: 283 to 460 cu ft · 10.5 kW: 354 to 566 cu ft
    Sauna Ceiling Height

    At least 86.6 in floor to ceiling
    Power

    3.5, 6, 9 and 10.5 kW
    Power Supply

    240 V single-phase or 208 V single-phase
    Controls

    Wall control
    Phone App

    Yes, with the Wi-Fi control
    Mounting

    Floor-standing or Wall-mounted
    Stones

    132 to 165 lb, by size
    Warranty

    3 years home use, 1 year commercial use (HUUM Limited Warranty v4)
    Made in

    Estonia

    Model & Application

    Model & Application
    Brand

    HUUM
    Catalog Product

    HUUM CLIFF & CLIFF Mini Electric Sauna Heater | 3.5 to 10.5 kW
    Heater Type

    Electric sauna heater
    Model Number

    240 V / 1 phase: CLIFF 11; 6 kW / 240 V / 1 phase: CLIFF 6; 9 kW / 240 V / 1 phase: CLIFF 9; 240 V / 1 phase: CLIFF MINI 4
    SKU / Part Number

    240 V / 1 phase: H1004032; 6 kW / 240 V / 1 phase: H1004012; 9 kW / 240 V / 1 phase: H1004022; 240 V / 1 phase: H1005012

    Sauna Sizing

    Sauna Sizing
    Maximum Room Volume

    240 V / 1 phase: 566 ft³; 6 kW / 240 V / 1 phase: 318 ft³; 9 kW / 240 V / 1 phase: 460 ft³; 240 V / 1 phase: 177 ft³
    Minimum Room Volume

    240 V / 1 phase: 354 ft³; 6 kW / 240 V / 1 phase: 177 ft³; 9 kW / 240 V / 1 phase: 283 ft³; 240 V / 1 phase: 106 ft³

    Electrical

    Electrical
    Minimum Circuit

    240 V / 1 phase, 9 kW / 240 V / 1 phase: 50 A; 6 kW / 240 V / 1 phase: 30 A; 240 V / 1 phase: 20 A
    Phase

    1 phase
    Rated Current

    240 V / 1 phase: 43.75 A; 6 kW / 240 V / 1 phase: 25 A; 9 kW / 240 V / 1 phase: 37.5 A; 240 V / 1 phase: 14.58 A
    Rated Power

    6 kW / 240 V / 1 phase: 6 kW; 9 kW / 240 V / 1 phase: 9 kW
    Supply Voltage

    240 V
    Wire Size

    240 V / 1 phase, 9 kW / 240 V / 1 phase: 8 AWG; 6 kW / 240 V / 1 phase: 10 AWG; 240 V / 1 phase: 12 AWG

    Dimensions & Weight

    Dimensions & Weight
    Assembled Dimensions

    240 V / 1 phase, 6 kW / 240 V / 1 phase, 9 kW / 240 V / 1 phase: 11.25" W x 11.25" W x 38.25" H; 240 V / 1 phase: 6.75" W x 11.5" D x 38.5" H
    Heater Depth

    240 V / 1 phase, 6 kW / 240 V / 1 phase, 9 kW / 240 V / 1 phase: 10.63 in; 240 V / 1 phase: 6.3 in
    Heater Height

    38.39 in
    Heater Weight

    37.5 lb
    Heater Width

    10.63 in
    Minimum Host-Room Height

    85.63 in
    Product Weight

    240 V / 1 phase: 37.5 lbs; 6 kW / 240 V / 1 phase, 9 kW / 240 V / 1 phase: 35 lbs; 240 V / 1 phase: 33 lbs

    Installation Clearances

    Installation Clearances
    Ceiling-Clearance Reference Height Above Finished Floor

    38.39 in
    Ceiling-Clearance Reference Plane

    Top Of Rocks
    Left-Side Clearance

    240 V / 1 phase: 14.96 in; 6 kW / 240 V / 1 phase, 240 V / 1 phase: 2.36 in; 9 kW / 240 V / 1 phase: 9.45 in
    Right-Side Clearance

    240 V / 1 phase: 14.96 in; 6 kW / 240 V / 1 phase, 240 V / 1 phase: 2.36 in; 9 kW / 240 V / 1 phase: 9.45 in
    Combustible Side Clearance

    240 V / 1 phase: 14.96 in; 6 kW / 240 V / 1 phase, 240 V / 1 phase: 2.36 in; 9 kW / 240 V / 1 phase: 9.45 in
    Minimum Installation Envelope Width

    240 V / 1 phase: 40.55 in; 6 kW / 240 V / 1 phase, 240 V / 1 phase: 15.35 in; 9 kW / 240 V / 1 phase: 29.53 in
    Top of Rocks Above Finished Floor

    38.39 in

    Included & Required

    Included & Required
    Included Components

    240 V / 1 phase: 10.5kW sauna heater 2 prop blocks (for removal of sauna rib slats) Installation and operation manual; 6 kW / 240 V / 1 phase: 6.0kW sauna heater 2 prop blocks (for removal of sauna rib slats) Installation and operation manual; 9 kW / 240 V / 1 phase: 9.0kW sauna heater 2 prop blocks (for removal of sauna rib slats) Installation and operation manual; 240 V / 1 phase: 3.5kW sauna heater 2 prop blocks (for removal of sauna rib slats) Installation and operation manual
    Required, Not Included

    240 V / 1 phase, 6 kW / 240 V / 1 phase, 9 kW / 240 V / 1 phase: UKU Control, 165 lbs stones (Qty 5 x 33 lbs of 1" - 2" stones boxes); 240 V / 1 phase: UKU Control, 133 lbs stones (Qty 4 x 33 lbs of 1" - 2" stones boxes)

    Certifications

    Certifications
    Certifications & Listings

    CE, IPX4, SGS

    Warranty

    Warranty
    Residential Warranty

    3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

    Use the attached current manual and a qualified installer for final sizing, wiring, clearances, venting, and local-code compliance.

    How It Fits

    How This Product Fits the System

    What it is used for

    An electric sauna heater that heats the sauna room and stone mass for traditional löyly. Choose the output from adjusted room volume, then match the exact voltage, phase, circuit, controls, stones, clearances, and ventilation.

    What to plan

    • Size from adjusted sauna volume, including the effect of glass, masonry, and other uninsulated surfaces; do not size from floor area alone.
    • Match the selected model's power or fuel, voltage, phase, circuit, wire, control, stone, and venting requirements before ordering.
    • Treat clearances, ceiling reference planes, ventilation, guarding, floor protection, and service access as one room-layout decision.
    • Follow the current installation manual and use a qualified installer.

    Required separately

    Complete the system with these items.

    Designed to work with

    Model-specific replacements and compatible system components.

    Optional accessories

    Optional upgrades and accessories.

    Sauna packages that offer this heater

    Available heater options for these sauna packages.

    Other heater options

    Compare these options; sizing, power, controls, clearances, and stones may differ.

    Attachments
    Legacy manuals for older installations

    Use these only when the document revision matches the installed product.

    Gallery
    Huum Cliff Electric Sauna Heater Shown Large With A Smaller Cliff Mini On Black Sauna Cladding, With Verified Kw, Cubic-Foot Coverage, And Dimensions.
    Huum Cliff Electric Sauna Heater Filled With Stones
    Huum Cliff Mini Wall-Mounted Electric Sauna Heater
    Huum Cliff And Cliff Mini Clearance Diagram And Per-Model Safety Distance Table, In Inches.
    Huum Cliff Installed In A Sauna
    Close-Up Of The Perforated Element Plate And Heating Elements Inside The Huum Cliff Sauna Heater.
    Close-Up Of Sauna Stones Inside The Slotted Steel Frame Of The Huum Cliff Sauna Heater.
    Detail Of The Steel Frame And Huum Badge On The Huum Cliff Mini Electric Sauna Heater.
    Looking Down At The Sauna Stones In The Top Of The Huum Cliff Electric Sauna Heater.
    Huum Cliff Electric Sauna Heater Without Stones, Showing The Vertical Heating Elements.
    Close-Up Of The Rounded Sauna Stones Held In The Huum Cliff Steel Frame.
    Detail Of The Huum Badge And Slotted Steel Frame On The Huum Cliff Sauna Heater.
    Top Detail Of The Huum Cliff Mini Electric Sauna Heater Stone Cage, Showing The Heating Elements And Stainless Steel Frame.
    Huum Cliff Mini Electric Sauna Heater Without Stones, Its Heating Elements Visible Inside The Tall Stainless Steel Cage.
    Huum Cliff Electric Sauna Heater Without Stones, Showing The Heating Elements Inside The Tall Square Stainless Steel Cage.
    Huum Cliff And Huum Steel Electric Sauna Heaters Side By Side Without Stones, Comparing The Open Cliff Cage With The Slotted Steel Body.
    Huum Cliff Electric Sauna Heater Filled With Sauna Stones, Full-Height Studio View On White.
    Huum Cliff Mini Electric Sauna Heater Filled With Sauna Stones, Photographed On A White Background.
    Huum Cliff Mini Electric Sauna Heater Inside A Small Wood Sauna Cabin With A Glass Door.
    Full-Height Studio View Of The Huum Cliff Mini Electric Sauna Heater Filled With Sauna Stones.
    Huum Cliff Electric Sauna Heater Beside White Sauna Benches Lit With Blue Led Light.
    Huum Cliff Electric Sauna Heater Installed Against The Dark Wood Wall Of A Sauna, Beside A Bench.
    Huum Cliff Electric Sauna Heater Next To Tiered Sauna Benches With Blue Led Strip Lighting.
    Full-Height Studio View Of The Huum Cliff Electric Sauna Heater Filled With Sauna Stones.
    Top-Down View Of The Sauna Stones Inside The Square Stainless Steel Cage Of The Huum Cliff Electric Sauna Heater.
      Return To Top

      THIS IS A GREAT CHOICE! We think you'd also like:

      HUUM STEEL floor-standing sauna heater in 6, 9, and 10.5 kW sizes

      HUUM STEEL Electric Sauna Heater | 6, 9 & 10.5 kW

      HUUM
      6 kW
      9 kW
      10.5 kW
      Price range: $2,033.00 through $2,391.00
      This product has multiple variants. The options may be chosen on the product page
      Compare
