Includes

What Is Included

All configurations

Included with purchase

Sauna heater, temperature sensor, installation and operation manual.

Required separately

200 lb of split-face sauna stones (quantity 5 × 44 lb of 2 to 4 in stones), fenix digital control, lty45 extension unit.

Contents vary by configuration. Check the row for the option selected above.

Technical Specifications

Technical Specifications

Model & Application

Model & Application
Brand

Harvia

Catalog Product

Harvia Virta Pro 16 | 240V Single‑Phase Commercial Sauna Heater

Heater Type

Electric sauna heater

Model Number

VIRTA PRO HL160E

SKU / Part Number

HL16U1UL

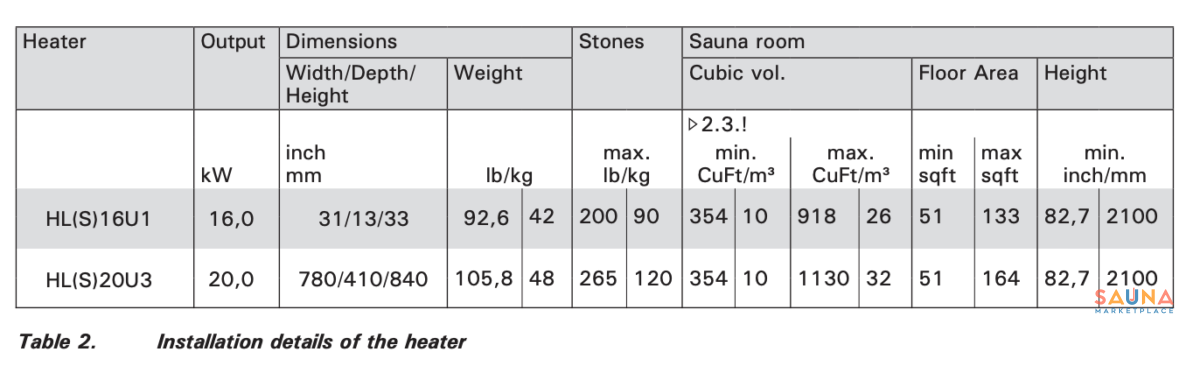

Sauna Sizing

Sauna Sizing
Maximum Room Volume

918 ft³

Minimum Room Volume

354 ft³

Electrical

Electrical
Phase

1 phase

Rated Current

66.7 A

Supply Voltage

240 V

Dimensions & Weight

Dimensions & Weight
Depth

13"

Heater Depth

13 in

Heater Height

33 in

Heater Weight

92.6 lb

Heater Width

31 in

Maximum Host-Room Height

90 in

Minimum Host-Room Height

82.7 in

Product Weight

92.6 lbs

Stone Capacity & Performance

Stone Capacity & Performance
Stone Capacity

200 lb

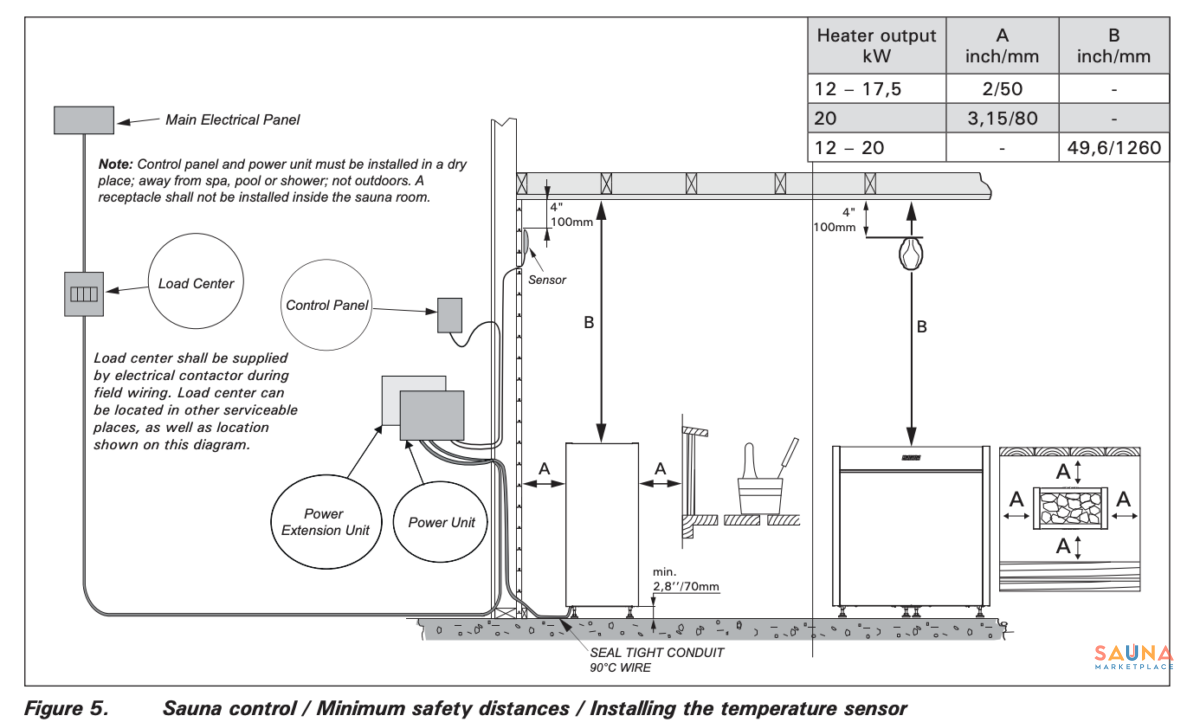

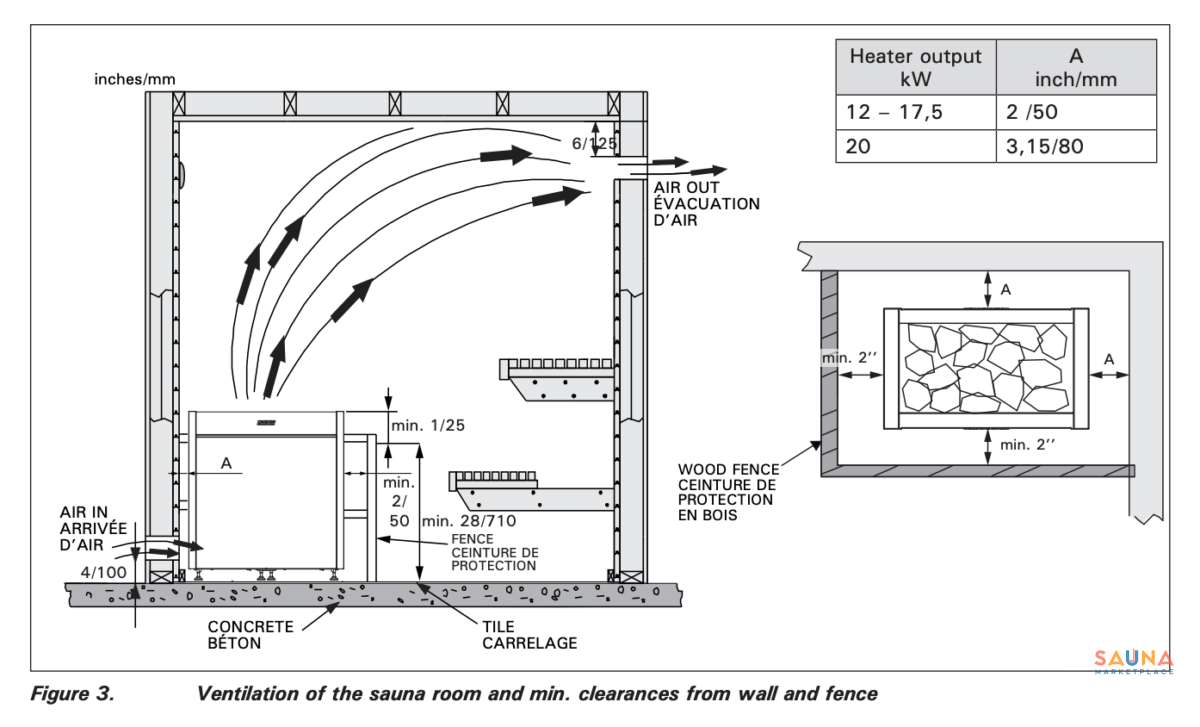

Installation Clearances

Installation Clearances
Ceiling-Clearance Reference Height Above Finished Floor

33 in

Ceiling-Clearance Reference Plane

Heater Top

Minimum Ceiling Clearance Above Reference Plane

49.6 in

Front Clearance

2 in

Rear Clearance

2 in

Left-Side Clearance

2 in

Right-Side Clearance

2 in

Minimum Spacing from Adjacent Surfaces

2 in

Included & Required

Included & Required
Included Components

Sauna Heater, Temperature Sensor, Installation and Operation Manual, 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Required, Not Included

200 lbs of Split-Face Sauna Stones (Qty 5 x 44 lbs of 2 to 4 in stones), Fenix Digital Control, LTY45 Extension Unit

Certifications

Certifications
Certifications & Listings

ETL

Use the attached current manual and a qualified installer for final sizing, wiring, clearances, venting, and local-code compliance.

How It Fits

How This Product Fits the System

What it is used for

An electric sauna heater that heats the sauna room and stone mass for traditional löyly. Choose the output from adjusted room volume, then match the exact voltage, phase, circuit, controls, stones, clearances, and ventilation.

What to plan

  • Size from adjusted sauna volume, including the effect of glass, masonry, and other uninsulated surfaces; do not size from floor area alone.
  • Match the selected model's power or fuel, voltage, phase, circuit, wire, control, stone, and venting requirements before ordering.
  • Treat clearances, ceiling reference planes, ventilation, guarding, floor protection, and service access as one room-layout decision.
  • Follow the current installation manual and use a qualified installer.

Designed to work with

Model-specific replacements and compatible system components.

Other heater options

Compare these options; sizing, power, controls, clearances, and stones may differ.

Attachments
Gallery

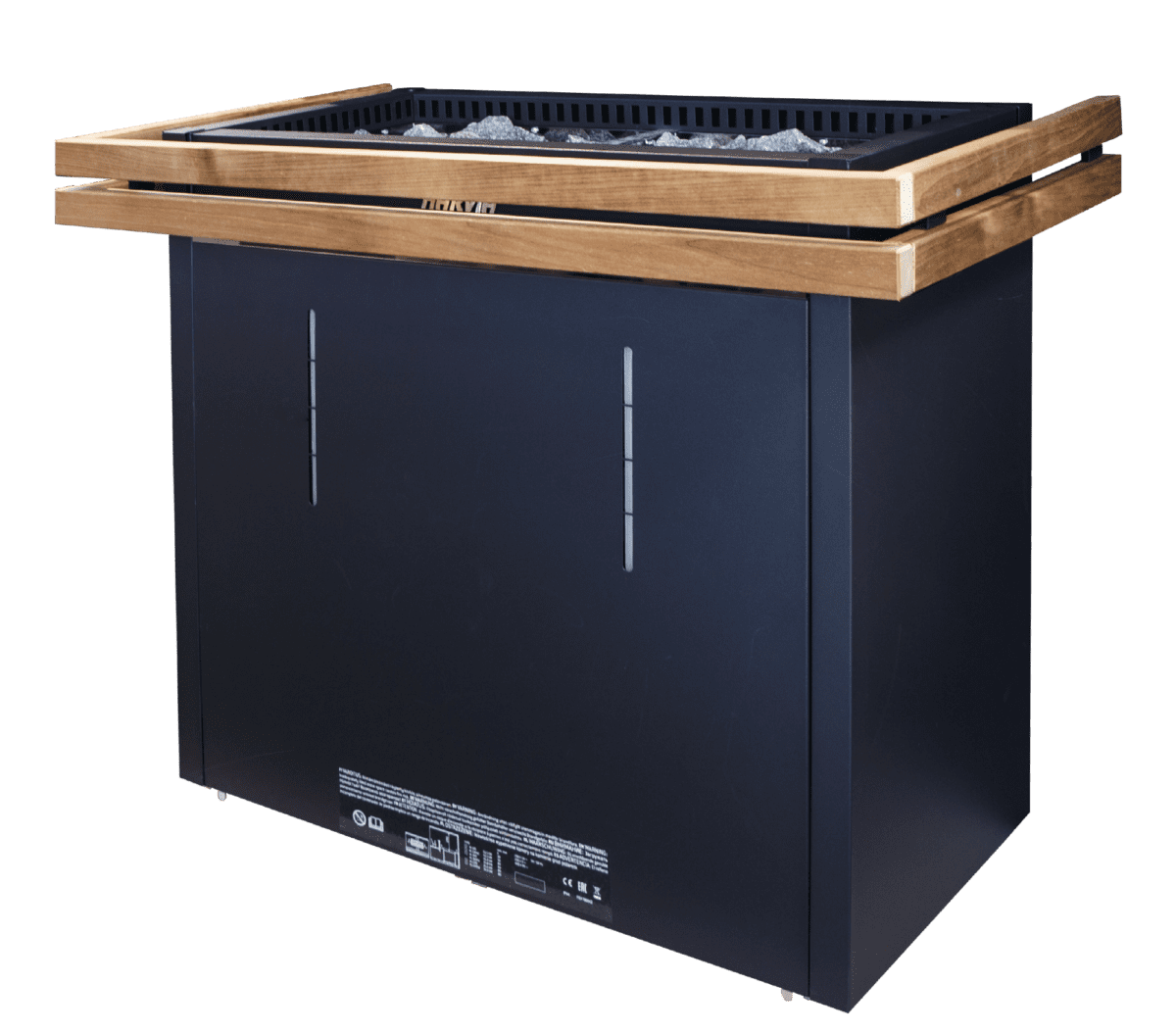

Harvia Virta Pro 16 | 240V Single‑Phase Commercial Sauna Heater

This is our go-to recommendation for both commercial saunas and large home saunas where reliability, safety, and everyday performance are essential. With a sleek black outer shell, easy maintenance access, and extended Harvia warranty this heater will keep your people coming back for more. Have an even larger commercial sauna? Double or triple up on this heater for any space. Like all Harvia Virta or Club models, maintenance and serviceability are unrivaled.

Build A Quote:

Add rocks
None Recommended Harvia Stones +$270.00 Recommended Harvia Stones with White Decorative Stones On Top - Amazing Contrast! +$300.00
Add Controller
None Harvia CX45 Xenio Controller With Wi-Fi Enabled Xenio Controller +$1,254.00

Data Cable Extension, 65 ft

65 ft Data Cable Extension

Relocate your Harvia Xenio or Fenix control panel up to 65 ft from the main module. Includes RJ-10 cable with connectors. This extension lets you install the control panel in your house or garage for maximum convenience.

None 65 ft Data Cable Extension +$130.00

Share your selected heater size and add-ons. Prices and availability are confirmed when the link is opened.

Fulfillment Partner:

We partner with distributors and manufacturers who guarantee the lowest prices, fastest delivery, and additional 'whatever-it-takes' support.

Bathing Distribution Center - Chicago
Zero Interest Payments:

Buy Now, Pay Later with premium financing packages only available on Sauna Marketplace.

Pay with HSA/FSA:

We teamed up with FLEX to make HSA/FSA payments easier than ever.

An Elegant Heater For Demanding Commercial Use

Powerful Heating: With a 20 kW capacity, this heater is ideal for large commercial saunas, efficiently heating spaces up to approximately 1,130 cubic feet.

Durable Construction: Built with high-quality materials to withstand continuous use near swimming pools or saltwater.  The integrated double wall provides safety and further protects the heater components.

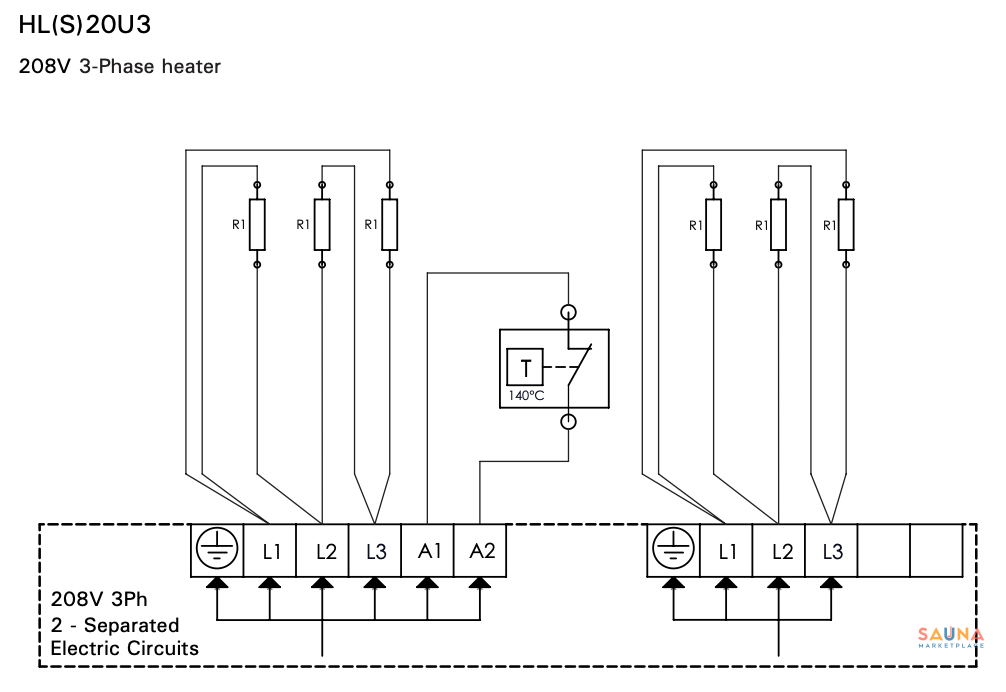

Three-Phase Connection: The 208V three-phase configuration ensures stable and efficient power distribution, UL-Listed and tailored for commercial properties.

Large Stone Capacity: Accommodates up to 264 lbs of sauna stones (4–6 inches in size), providing excellent heat retention and steam generation.  Pair with Harvia Autodose to provide steam and aroma on a schedule, or at the touch of a button.  This ensures only clean water is used, making heating elements last longer.

Easy Maintenance: Designed with user-friendly access to heating elements and components for hassle-free upkeep.

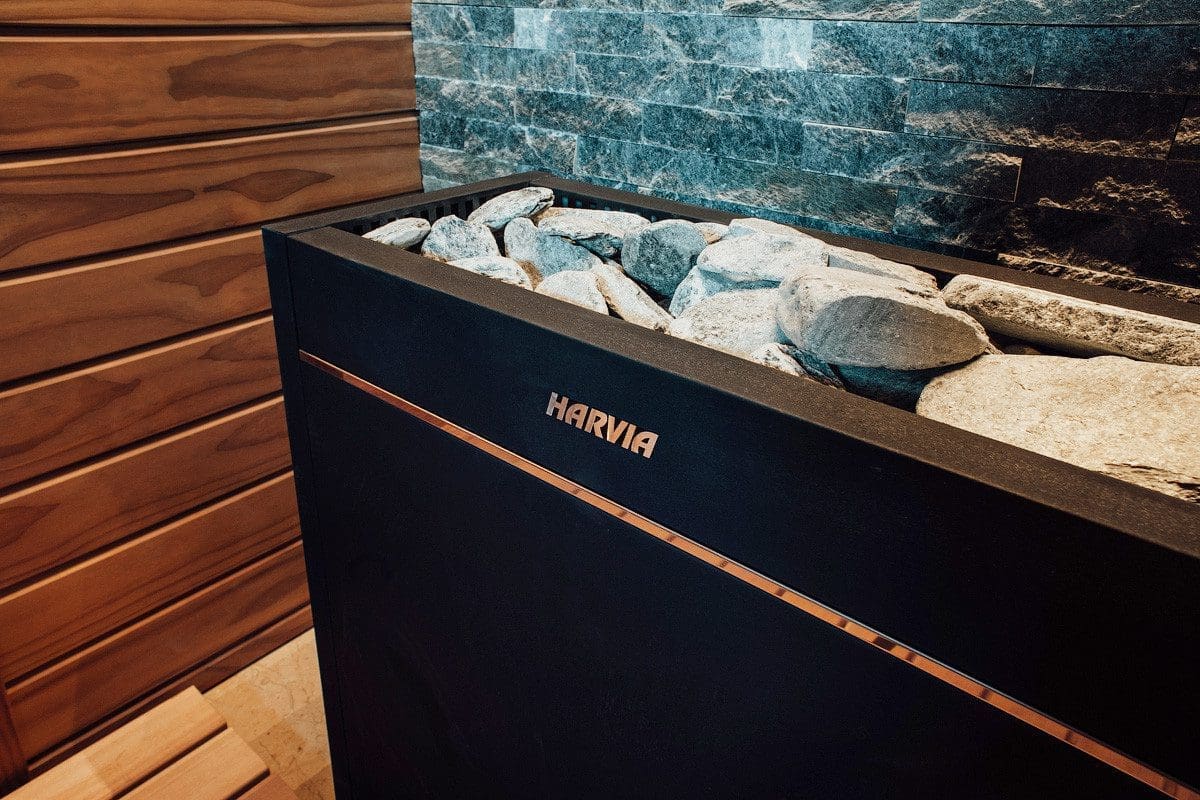

High Performance Heating

The Harvia Virta Pro electric sauna heaters offer ample heating power for large saunas, perfect for use in health clubs, spas, hotels, and apartment buildings.

Harvia Technology

Core Technologies: Virta Pro heaters use industrial-grade, serviceable heating elements, and a unique direct rock-to-heating element contact design for maximum efficiency.

Complete Control

Harvia control units are easy to use, please the eye and complement the design of the room. The control of other features of the facility, such as lighting, can be connected to the same control unit. And because this is Harvia, Wi-Fi is an option.

Pro-Class Experience

The sleek and stylish Virta Pro heaters ensure a high-quality, professional sauna experience.

Harvia Autodose Compatible

Harvia Autodose puts the perfect sauna conditions and fragrances at your fingertips.

Control Your New Harvia Virta Like a Pro, Remotely With the MyHarvia App

Wi-Fi Enabled Option
