EOS
EOS has engineered sauna systems in Germany for more than 80 years. Its North American lineup at Sauna Marketplace centers on the award-winning Mythos design-heater series: the Mythos S35 (7.5 or 9 kW, 208 or 240 V) for small and mid-size cabins and the Mythos S45 (12 or 15 kW, 208 V three-phase) for larger private and commercial rooms. Every EOS heater pairs with a separate matching EOS US control system. Full comparison, sizing guidance, controls, and official documents below.

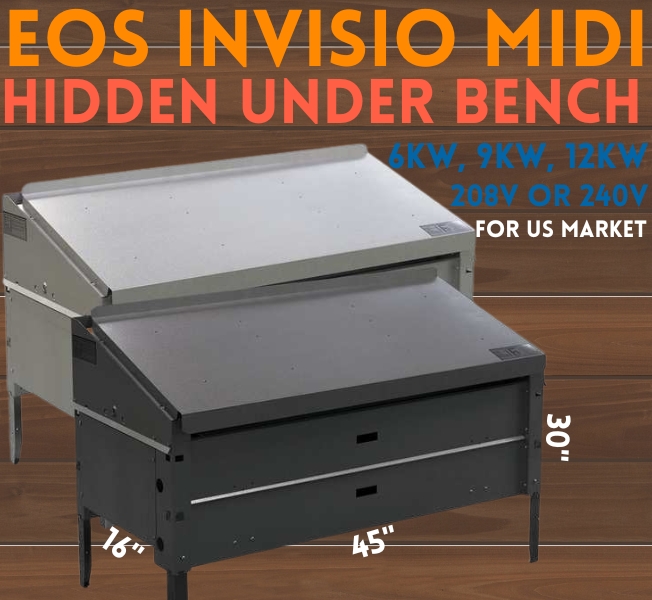

EOS Invisio Midi Under-Bench Sauna Heater | 6 / 9 / 12 kW
Price range: $5,641.00 through $5,860.00The heater your guests never see. The EOS Invisio Midi, from Germany’s 80-year sauna engineering house, installs under the bench behind a builder-made dividing wall: heat rises through the supplied 48.8-inch protective grill, and water reaches the hidden stones through an included trough, hose, and internal stainless channel. 6, 9, or 12 kW covers rooms from about 35 to 102 sq ft; stainless steel or anthracite; every variant a genuine EOS North America SKU. Requires the matching 9 kW (6/9 kW heaters) or 15 kW (12 kW heater, 208V 3-Phase only) EOS USA control system, sold separately – select below. Dividing wall and bench are builder-supplied; stones selected separately. Ships freight via EOS’s official US distribution; lead time confirmed with your order.
EOS Mythos S45 Design Sauna Heater | 12 / 15 kW
$10,441.00The statement heater for big rooms. The EOS Mythos S45 scales the iF Design Award-winning Mythos design to 12 or 15 kW at 208V three-phase: a 99 lb published stone load, a 24-piece hand-cut Cubius soapstone crown, and a finished-on-every-side body still only 14.6 inches deep. Covers EOS room ranges from 80 to 142 sq ft, private or commercial. Requires one matching 15 kW EOS USA control system (sold separately, select below); no power extension needed. Ships freight via EOS’s official US distribution; lead time confirmed with your order.
EOS Mythos S35 Design Sauna Heater | 7.5 / 9 kW
Price range: $8,438.00 through $8,774.00A heater your room is built around. The EOS Mythos S35 is the iF Design Award-winning cubist heater from Germany’s 80-year sauna house: a 33-inch pillar, only 14.6 inches deep, finished on every side and crowned with 20 hand-cut Cubius soapstones. A 77 lb published stone load delivers soft, steady loyly in rooms from 45 to 80 sq ft. 7.5 or 9 kW, 208V or 240V, four US finishes, every variant a genuine EOS North America SKU. Requires the matching 9 kW EOS USA control system (sold separately, select below). Ships freight via EOS’s official US distribution; lead time confirmed with your order.
About EOS
EOS brings more than 80 years of sauna engineering to a North America-specific heater and control platform. Designed and made in Germany, each system pairs deliberate industrial design with serviceable construction, digital safety control, and model-specific installation guidance for residential and commercial sauna projects.
Every EOS heater is a purpose-built system: the heater pairs with a separate matching EOS North America control panel and power box, a mandatory temperature sensor with safety limiter, contact protection, and a planned ventilation path. That system approach is what makes the installation predictable for your electrician and sauna builder.
Mythos S35 vs. Mythos S45
Both Mythos heaters share the same award-winning cubist design language, finished exterior, stainless rock store, geometric Cubius stone crown, front service access, and shallow 14.6-inch depth. The difference is scale: width, output, stone mass, and the rooms they serve.
| Mythos S35 | Mythos S45 | |
|---|---|---|
| Outputs | 7.5 or 9 kW | 12 or 15 kW |
| Electrical service | 208 V 3-phase or 240 V 2-line, 60 Hz | 208 V 3-phase, 60 Hz only |
| Dimensions (H x W x D) | 33.1 x 16.5 x 14.6 in | 33.1 x 19.7 x 14.6 in |
| Published stone filling | 77 lb | 99 lb |
| Cubius crown | 20 geometric pieces | 24 geometric pieces |
| EOS room range (6.2 ft reference height) | 45.2–79.7 sq ft | 79.7–142 sq ft |
| Matching power box | 9 kW EOS USA | 15 kW EOS USA |
| Finishes | Matte Black, Matte White, Anthracite, Anthracite + Brushed Stainless | |
Sizing an EOS Mythos heater
| Model / output | EOS cabin floor-area range | Approx. reference volume |
|---|---|---|
| S35 — 7.5 kW | 45.2–67.8 sq ft at 6.2 ft | 280–420 cu ft |
| S35 — 9 kW | 50.5–79.7 sq ft at 6.2 ft | 313–494 cu ft |
| S45 — 12 kW | 79.7–102.3 sq ft at 6.2 ft | 494–634 cu ft |
| S45 — 15 kW | 102.3–142 sq ft at 6.2 ft | 634–880 cu ft |
Controls: required and sold separately
No current EOS US heater includes its control. Every Mythos installation needs a matching EOS North America control system — a Touch 3 (7-inch color touch panel with separate power box) or an EmoTec D kit (compact TFT panel with jog dial, sensor, cables, and power box). The S35 pairs with a 9 kW power box and the S45 with a 15 kW power box, in the exact voltage of your heater and service — a 240 V heater must never be paired with 208 V control hardware, and vice versa. The panel and power box mount outside the hot room; the digital temperature sensor with safety limiter comes with the control system.
Installation planning at a glance
- Indoor installation only, on a level, noncombustible floor.
- Minimum cabin interior height 74.8 in; at least 35.4 in from heater top to a horizontal ceiling.
- 1.6 in minimum clearance at front, rear, and each side of the body; nonmetallic contact protection (guard) wherever touch exposure exists.
- Low air inlet approximately 2–3.9 in above the floor and an output-specific vent opening.
- Ceiling-mounted sensor centered over the heater; final wiring by a licensed electrician per the current North America installation manual, nameplates, NEC, and local code.
Service and replacement parts
EOS publishes replacement parts for long-term service. Mythos heating elements are replaceable through the front terminal box behind the removable design panel, and Cubius crown sets are available as replacement/design kits in black, white, and natural — including single Loop 4 infusion stones. Contact us for current part availability.
Official EOS North America documents
- Mythos S35 Data Sheet (North America)
- Mythos S45 Data Sheet (North America)
- Mythos Installation Manual (North America)
EOS frequently asked questions
Are controls included with EOS heaters?
No. Select the matching Touch 3 or EmoTec D control with the exact 208 or 240 V, 9 or 15 kW power hardware for your heater. Heater prices are heater-only.
Can I use a 240 V heater on 208 V service?
No. Heater and power-box voltage must match your project's electrical service and the nameplates exactly. The S45 is 208 V three-phase only.
Are sauna stones included?
The Mythos system uses conventional natural stones in the rock store plus the geometric Cubius crown on top. Package contents are verified before shipment — we confirm the exact stone and Cubius contents of your carton with the distributor before your order ships.
Is a safety guard optional?
Compliant contact protection is required by the installation manual wherever touch exposure exists. An EOS Mythos guard rail is available; four-sided configurations are supported.
What warranty applies?
Manufacturer/distributor warranty terms apply. Contact us for the current policy for your exact model before purchase.
