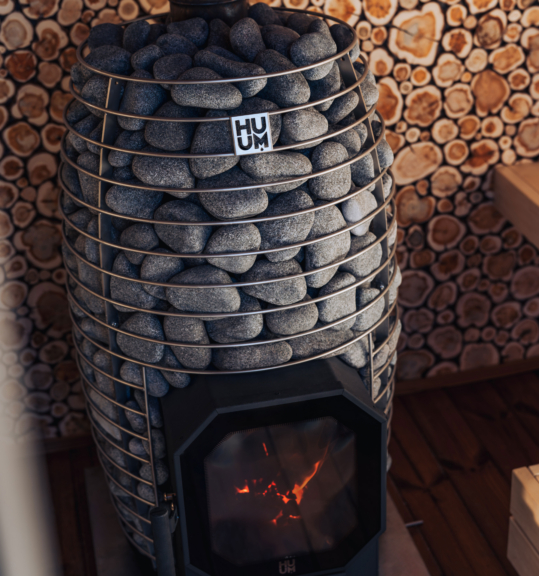

Huum Hive Flow Installed In A Wood Sauna
Huum Hive Flow Stone Basket And Firebox Detail
Fire Burning Behind The Glass Firebox Door Of The Huum Hive Flow Wood-Burning Sauna Stove.
Close-Up Of The Door Handle And Hinge On The Huum Hive Flow Wood-Burning Sauna Stove.
Side View Of The Huum Hive Flow Ls Wood-Burning Sauna Stove With Its Through-Wall Firebox.
Huum Hive Flow Wood-Burning Sauna Stove Alight Beside The Benches Of A Wood-Clad Sauna.
Huum Hive Flow Wood-Burning Sauna Stove Standing Against A Stacked Log Wall.
Huum Hive Flow Wood-Burning Sauna Stove With A Fire Lit, Seen On A Timber Sauna Deck.
Click to enlarge
Expert help that stays with you

Whether you’re choosing one component or planning the whole room, small details can become expensive problems once installation begins. We know the products we sell and the questions to ask early, helping catch mismatched components, overlooked requirements, and installation issues while they are still easy to fix.

Our job does not end when your order ships. We stay available through installation and beyond. If something needs attention, we stay involved, work the problem, and help see it through.

We want you to feel good about choosing Sauna Marketplace long after your first session, and confident recommending us to a friend. That standard guides the advice we give, the products we sell, and the way we take care of our customers.

Sauna and heater customers also receive free shipping on sauna accessories for life.

Planning a sauna, or need help with one you purchased from us? Our founders have assembled many of the saunas we sell, visited the manufacturers, and use these products every day. New customers and existing Sauna Marketplace sauna and heater owners can Book a Ben consultation.

Includes

What Is Included

HIVE FLOW

Included with purchase

Sauna stove metal grate heat resistant glove splints metal fixing plates (2) ash grate cleaning hatches (2) ash drawer installation and operational manual.

Required separately

330 lb stones (quantity 10 × 33 lb 2 to 4 in stones boxes).

HIVE FLOW LS

Included with purchase

Sauna stove metal grate heat resistant glove splints metal fixing plates (2) ash grate cleaning hatches (2) ash drawer installation and operational manual.

Required separately

330 lb stones (quantity 10 × 33 lb 2 to 4 in stones boxes).

HIVE FLOW MINI

Included with purchase

Sauna stove metal grate heat resistant glove splints metal fixing plates (2) ash grate cleaning hatches (2) ash drawer installation and operational manual.

Required separately

231 lb stones (quantity 7 × 33 lb 2 to 4 in stones boxes).

HIVE FLOW MINI LS

Included with purchase

Sauna stove metal grate heat resistant glove splints metal fixing plates (2) ash grate cleaning hatches (2) ash drawer installation and operational manual.

Required separately

231 lb stones (quantity 7 × 33 lb 2 to 4 in stones boxes).

Contents vary by configuration. Check the row for the option selected above.

Technical Specifications

Technical Specifications

Model & Application

Model & Application
Brand

HUUM
Catalog Product

HUUM HIVE Flow Wood-Burning Sauna Stove | Mini, Full & LS
Heater Type

Wood-burning sauna stove
Model Number

9.8 kW: HIVE FLOW; 9.8 kW: HIVE FLOW LS; 8.5 kW: HIVE FLOW MINI; 8.5 kW: HIVE FLOW MINI LS
SKU / Part Number

9.8 kW: H1015012; 9.8 kW: H1016012; 8.5 kW: H1017012; 8.5 kW: H1018012

Sauna Sizing

Sauna Sizing
Maximum Room Volume

9.8 kW: 635 ft³; 8.5 kW: 494 ft³
Minimum Room Volume

9.8 kW: 282 ft³; 8.5 kW: 212 ft³

Electrical

Electrical
Rated Power

9.8 kW: 9.8 kW; 8.5 kW: 8.5 kW

Dimensions & Weight

Dimensions & Weight
Assembled Dimensions

9.8 kW: 20.7"W x 24.8"D x 34.8"H; 9.8 kW: 20.7"W x 29.5"D x 34.8"H; 8.5 kW: 17.7"W x 21.1"D x 34.8"H; 8.5 kW: 17.7"W x 26.5"D x 34.8"H
Heater Depth

9.8 kW: 23.07 in; 9.8 kW: 27.8 in; 8.5 kW: 19.41 in; 8.5 kW: 24.13 in
Heater Height

34.8 in
Heater Weight

119 lb
Heater Width

9.8 kW: 20.71 in; 8.5 kW: 17.72 in
Minimum Host-Room Height

74.17 in
Product Weight

9.8 kW: 148 lbs; 9.8 kW: 161 lbs; 8.5 kW: 119 lbs; 8.5 kW: 130 lbs

Installation Clearances

Installation Clearances
Ceiling-Clearance Reference Height Above Finished Floor

34.8 in
Ceiling-Clearance Reference Plane

Stove Top
Front Clearance

19.68 in
Rear Clearance

5.91 in
Left-Side Clearance

5.91 in
Right-Side Clearance

5.91 in
Combustible-Floor Base Ventilation Gap

1.18 in
Combustible-Floor Protection Front Depth

15.75 in
Combustible-Floor Protection Minimum Width

9.8 kW: 16.54 in; 8.5 kW: 14.96 in
Combustible-Floor Protection Side Extension

3.94 in
Combustible Side Clearance

5.91 in
Minimum Installation Envelope Width

9.8 kW: 32.52 in; 8.5 kW: 29.53 in
Noncombustible Wall Clearance

1.97 in
Top of Rocks Above Finished Floor

34.8 in

Installation

Installation
Flue Outlet Diameter

4.49 in

Included & Required

Included & Required
Included Components

Sauna Stove Metal Grate Heat Resistant Glove Splints Metal Fixing Plates (2) Ash Grate Cleaning Hatches (2) Ash Drawer Installation and Operational Manual 5-Year Limited Warranty (excluding elements)
Required, Not Included

9.8 kW: 330 lbs stones (Qty 10 x 33 lbs 2 to 4 in stones boxes); 8.5 kW: 231 lbs stones (Qty 7 x 33 lbs 2 to 4 in stones boxes)

Certifications

Certifications
Certifications & Listings

Bimschv 2, CE

Warranty

Warranty
Residential Warranty

3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

Use the attached current manual and a qualified installer for final sizing, wiring, clearances, venting, and local-code compliance.

How It Fits

How This Product Fits the System

What it is used for

A wood-burning sauna heater that heats the room and stone mass for traditional löyly. Treat the stove, chimney, floor protection, clearances, combustion air, ventilation, and stones as one installation system.

What to plan

  • Size from adjusted sauna volume, including the effect of glass, masonry, and other uninsulated surfaces; do not size from floor area alone.
  • Match the selected model's power or fuel, voltage, phase, circuit, wire, control, stone, and venting requirements before ordering.
  • Treat clearances, ceiling reference planes, ventilation, guarding, floor protection, and service access as one room-layout decision.
  • Follow the current installation manual and use a qualified installer.

Required separately

Complete the system with these items.

Designed to work with

Model-specific replacements and compatible system components.

Optional accessories

Optional upgrades and accessories.

Attachments
Legacy manuals for older installations

Use these only when the document revision matches the installed product.

Gallery
Huum Hive Flow And Hive Flow Mini
Huum Hive Flow Wood-Burning Sauna Stove
Huum Hive Flow Clearance Diagram And Per-Model Safety Distance Table, In Inches.
Huum Hive Flow Installed In A Wood Sauna
Huum Hive Flow Stone Basket And Firebox Detail
Fire Burning Behind The Glass Firebox Door Of The Huum Hive Flow Wood-Burning Sauna Stove.
Close-Up Of The Door Handle And Hinge On The Huum Hive Flow Wood-Burning Sauna Stove.
Side View Of The Huum Hive Flow Ls Wood-Burning Sauna Stove With Its Through-Wall Firebox.
Huum Hive Flow Wood-Burning Sauna Stove Alight Beside The Benches Of A Wood-Clad Sauna.
Huum Hive Flow Wood-Burning Sauna Stove Standing Against A Stacked Log Wall.
Huum Hive Flow Wood-Burning Sauna Stove With A Fire Lit, Seen On A Timber Sauna Deck.
Click to enlarge
    Fast and Free Shipping!

    Delivered thoughtfully from Illinois through our freight partners.  Deliveries typically take 12-16 days within the continental US.

    HUUM HIVE Flow Wood-Burning Sauna Stove | Mini, Full & LS

    HIVE FLOW HIVE Wood

    HUUM HIVE Flow is the current high-efficiency wood-stove family, using a staged combustion path to transfer more heat into the sauna and stones before exhaust reaches the chimney. Choose 8.5 kW Mini or 9.8 kW full-size models, each available in standard or LS through-wall loading versions, for rooms from 212 to 635 cubic feet.

    Build Your Quote:

    HIVE FLOW HIVE Wood

    Price range: $2,898.00 through $3,221.00

    Add the required stones: HIVE Flow Mini / Mini LS

    The HIVE Flow Mini and Mini LS holds about 231 lb of 2 to 4 inch stones, and stones do not come in the box with the heater. That comes to 7 boxes. Stack them loosely so air can move between them, and plan on restacking once a year.

    I already have the approved 2–4 inch stones for HIVE Flow Mini / Mini LS 7 × 33-lb boxes of HUUM STONES 24 (231 lb supplied) +$560.00 7 × 33-lb boxes of HUUM STONES 24 (231 lb supplied)(+$560.00)
    Add the required stones: HIVE Flow / Flow LS

    The HIVE Flow and Flow LS holds about 330 lb of 2 to 4 inch stones, and stones do not come in the box with the heater. That comes to 10 boxes. Stack them loosely so air can move between them, and plan on restacking once a year.

    I already have the approved 2–4 inch stones for HIVE Flow / Flow LS 10 × 33-lb boxes of HUUM STONES 24 (330 lb supplied) +$800.00 10 × 33-lb boxes of HUUM STONES 24 (330 lb supplied)(+$800.00)
    Mounting Collar for LS Stoves

    Required for fire box pass through for Flow LS and Mini LS HUUM Stoves

    None Stainless Steel +$416.00 Flat Black +$472.00
    HUUM Cage

    Add additional rocks surrounding the pipe above your stove for even greater thermal efficiency, steam surface area, and – because it’s cool!

    None Stone Cage for HIVE Series Sauna Stoves, fits 88 lbs of rocks. +$396.00 Stone Cage With 99 LBS of Rocks +$498.00 Double Stone Cage with 198 LBS of Rocks +$996.00
    Chimney
    None Euro 4.5" to USA 6" Pipe Adapter to Source Local Chimney +$95.00 HUUM Through Ceiling Chimney Kit +$1,342.00 HUUM Barrel or Flat Roof Chimney Kit +$1,559.00 HUUM Through Wall Chimney Kit +$1,670.00
    Protective Floor Plate
    None Protective Floor Plate for HIVE Flow Series Sauna Stoves +$647.00 HUUM HIVE Protective Bedding with Leveling Feeet +$404.00
    Free Quote For Sauna Wood

    Did you know Sauna Marketplace specializes in premium Sauna Woods? Whether you’re looking for the highest grade material, a specific look, or to save money we have something for you.

    Share your selected heater size and add-ons. Prices and availability are confirmed when the link is opened.

    We added you to this product's waitlist and we'll send you an email when the product is available.

    Leave Waitlist

    This product is currently sold out.

    No worries! Enter your email, and we'll let you know as soon as it's back in stock.

    Zero Interest Payments:

    Buy Now, Pay Later with premium financing packages only available on Sauna Marketplace.

    Pay with HSA/FSA:

    We teamed up with FLEX to make HSA/FSA payments easier than ever.

    HUUM
    HUUM HIVE FLOW 3d animation

    Marketplace Knowledgebase

    6 Videos

    Current HUUM product guide

    Use the current Product Guide and Manuals & Documents sections on this page for verified model selection, sizing, installation, and warranty information.

    Safety Clearances and Drawings

    HUUM Safety Clearances
