Includes

What Is Included

13

Included with purchase

Wood-fired sauna stove installation and operation manual.

Required separately

198 lb stones (quantity 6 × 33 lb 2 to 4 in stones boxes).

17

Included with purchase

Wood-fired sauna stove installation and operation manual.

Required separately

286 lb stones (quantity 9 × 33 lb 2 to 4 in stones boxes).

17 LS

Included with purchase

Wood-fired sauna stove installation and operation manual.

Required separately

286 lb stones (quantity 9 × 33 lb 2 to 4 in stones boxes).

Contents vary by configuration. Check the row for the option selected above.

Technical Specifications

Technical Specifications

At a Glance

At a Glance
Heat Source

Wood-burning
Sauna Room Size

13: 212 to 459 cu ft · 17: 283 to 565 cu ft · 17 LS: 283 to 565 cu ft
Sauna Ceiling Height

At least 76.8 in floor to ceiling
Power

13 and 17 kW
Mounting

Floor-standing
Loading

Inside the sauna or Through the wall, from the next room
Stones

199 to 287 lb, by size
Warranty

3 years home use, 1 year commercial use (HUUM Limited Warranty v4)
Made in

Estonia

Model & Application

Model & Application
Brand

HUUM
Catalog Product

HUUM HIVE Wood-Burning Sauna Stove | 13, 17 & 17 LS
Heater Type

Wood-burning sauna stove
Model Number

13 kW: HIVE WOOD 13; 17 kW: HIVE WOOD 17; 17 kW: HIVE WOOD 17 LS
SKU / Part Number

13 kW: H1008012; 17 kW: H1009012; 17 kW: H1010012

Sauna Sizing

Sauna Sizing
Maximum Room Volume

13 kW: 459 ft³; 17 kW: 565 ft³
Minimum Room Volume

13 kW: 212 ft³; 17 kW: 283 ft³

Electrical

Electrical
Rated Power

13 kW: 13 kW; 17 kW: 17 kW

Fuel & Venting

Fuel & Venting
Maximum Log Length

13 kW: 11.81 in; 17 kW: 15.75 in

Dimensions & Weight

Dimensions & Weight
Assembled Dimensions

13 kW: 17.7"W x 18.11"D x 29.6"H; 17 kW: 21.9"W x 23.2"D x 29.6"H; 17 kW: 21.9"W x 29.1"D x 29.6"H
Heater Diameter

13 kW: 17.72 in; 17 kW: 21.85 in
Heater Height

29.53 in
Heater Weight

13 kW: 99 lb; 17 kW: 154 lb
Minimum Host-Room Height

76.77 in
Product Weight

13 kW: 104 lbs; 17 kW: 143 lbs; 17 kW: 170 lbs

Installation Clearances

Installation Clearances
Ceiling-Clearance Reference Height Above Finished Floor

29.53 in
Ceiling-Clearance Reference Plane

Top Of Rocks
Front Clearance

13 kW: 35.43 in; 17 kW: 39.37 in
Rear Clearance

13 kW: 9.84 in; 17 kW: 19.68 in
Left-Side Clearance

13 kW: 7.48 in; 17 kW: 19.68 in
Right-Side Clearance

13 kW: 7.48 in; 17 kW: 19.68 in
Combustible-Floor Protection Added Width Beyond Door

23.62 in
Combustible-Floor Protection Front Depth

15.75 in
Combustible Side Clearance

13 kW: 7.48 in; 17 kW: 19.68 in
Noncombustible Wall Clearance

3.94 in
Top of Rocks Above Finished Floor

29.53 in

Through-Wall Installation (17 LS)

Through-Wall Installation (17 LS)
Wall Opening, Minimum

17 LS: 18.9 in tall x 12.6 in wide. HUUM adds 0.8 in of air gap to door height D 18.1 in and door width G 11.8 in.
Wall Material

Non-combustible (stone, concrete). HUUM recommends mineral-wool insulation around the furnace bushing.
Firebox Extension Projection

17 LS: 7.3 in beyond the stove body; the standard door projects 1.4 in.
Loading-Side Floor Protection

If the floor in front of the furnace door is combustible: non-combustible protection 23.63 in wider than the 11.8 in door and at least 15.75 in deep.

Installation

Installation
Flue Outlet Diameter

4.53 in

Included & Required

Included & Required
Included Components

Wood-fired sauna stove Installation and operation manual
Required, Not Included

13 kW: 198 lbs stones (Qty 6 x 33 lbs 2 to 4 in stones boxes); 17 kW: 286 lbs stones (Qty 9 x 33 lbs 2 to 4 in stones boxes)

Certifications

Certifications
Certifications & Listings

CE

Warranty

Warranty
Residential Warranty

3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

Use the attached current manual and a qualified installer for final sizing, wiring, clearances, venting, and local-code compliance.

How It Fits

How This Product Fits the System

What it is used for

A wood-burning sauna heater that heats the room and stone mass for traditional löyly. Treat the stove, chimney, floor protection, clearances, combustion air, ventilation, and stones as one installation system.

What to plan

  • 17 LS through-wall: the furnace bushing passes through a non-combustible wall (stone, concrete) opening at least 18.9 in tall x 12.6 in wide; the extension projects 7.3 in from the stove body. Insulate the bushing with mineral wool and protect a combustible floor on the loading side.
  • Size from adjusted sauna volume, including the effect of glass, masonry, and other uninsulated surfaces; do not size from floor area alone.
  • Match the selected model's power or fuel, voltage, phase, circuit, wire, control, stone, and venting requirements before ordering.
  • Treat clearances, ceiling reference planes, ventilation, guarding, floor protection, and service access as one room-layout decision.
  • Follow the current installation manual and use a qualified installer.

Required separately

Complete the system with these items.

Designed to work with

Model-specific replacements and compatible system components.

Optional accessories

Optional upgrades and accessories.

Attachments
Legacy manuals for older installations

Use these only when the document revision matches the installed product.

Gallery
Huum Hive Wood 17 Shown Large With Smaller 13 And 17 Ls Real Stove Variants On Black Sauna Cladding, Plus Verified Kw, Cubic-Foot Coverage, And Dimensions.
Huum Hive Wood Wood-Burning Sauna Stove
Huum Hive Wood Clearance Diagram And Per-Model Safety Distance Table, In Inches.

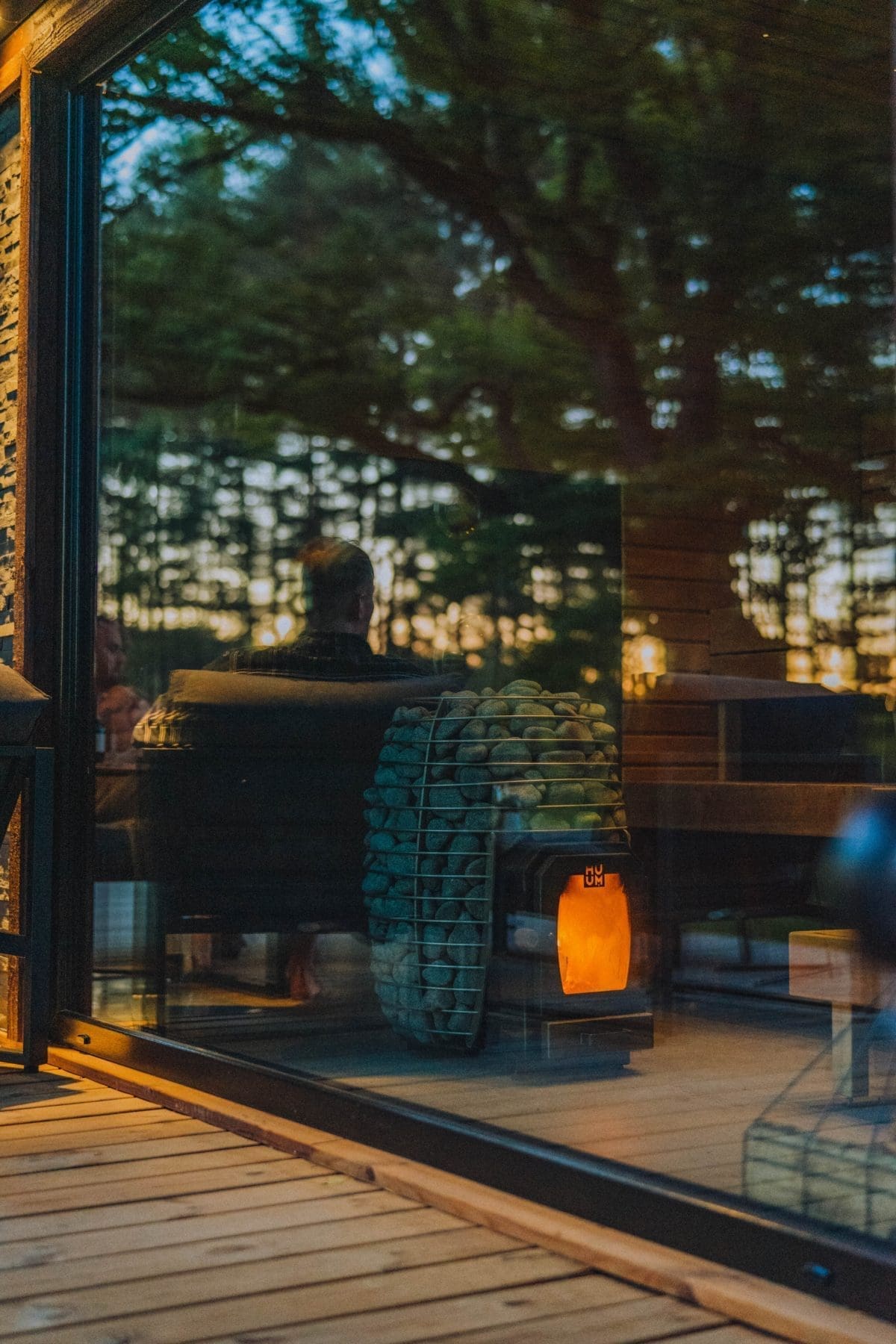

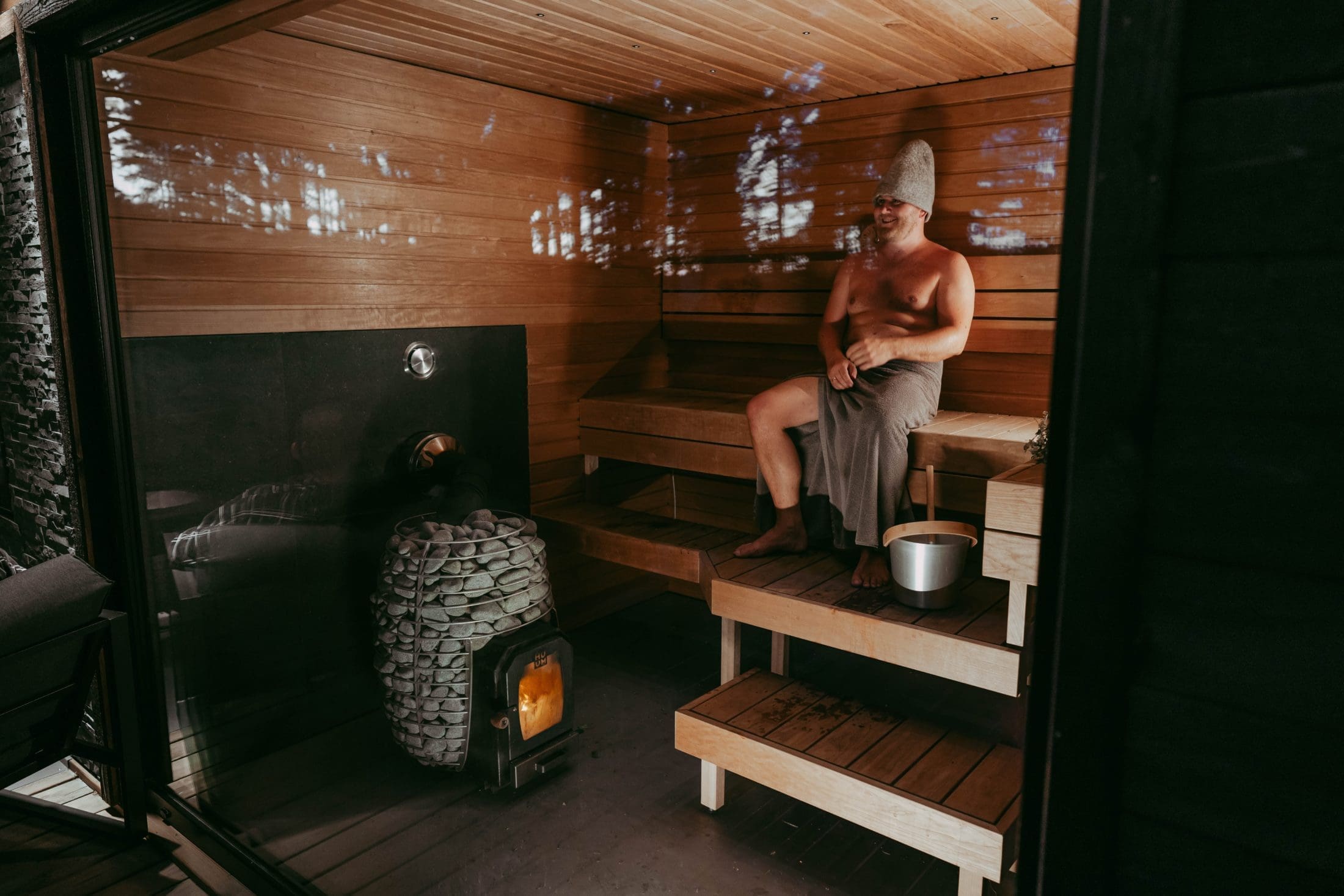

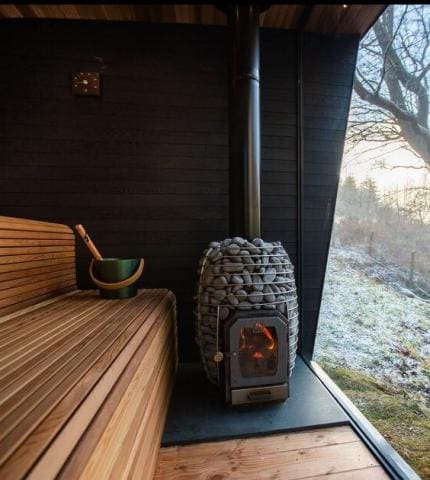

Huum Hive Wood Installed In A Sauna

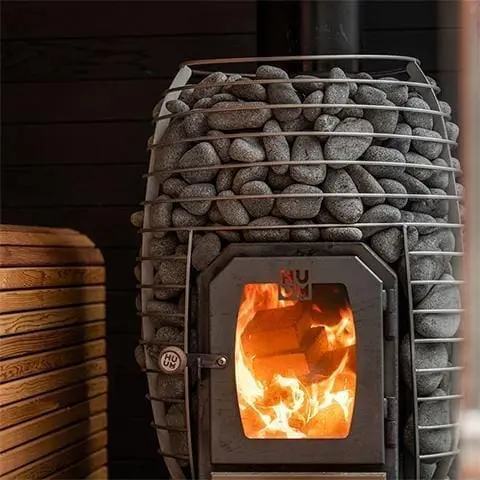

Huum Hive Wood Stove And Stone Basket In Use
Huum Hive Wood 13 Wood-Burning Sauna Stove Surrounded By Its Stone Cage.
Huum Hive Wood 17 Wood-Burning Sauna Stove Surrounded By Its Stone Cage.
Huum Hive Wood 17 Ls Long-Firebox Wood-Burning Sauna Stove Surrounded By Its Stone Cage.
Huum Hive Wood 13 Wood-Burning Sauna Stove With The Stone Cage Empty, Showing The Steel Body.
Huum Hive Wood Wood-Burning Sauna Stove Shown With The Chimney Fitted.

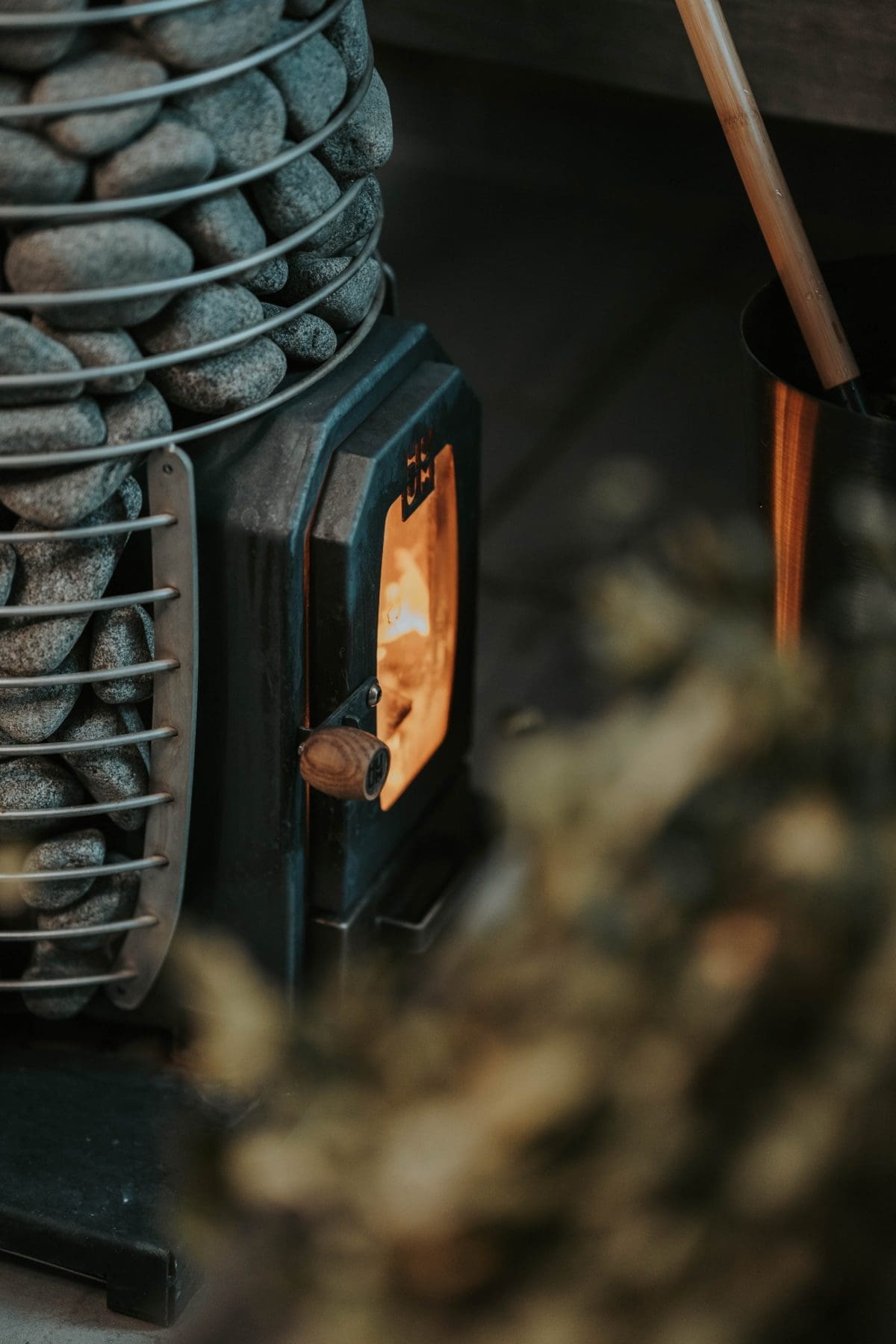

Detail Of The Glass Firebox Door And Wooden Handle On The Huum Hive Wood Sauna Stove.
Close-Up Of The Turned Wooden Door Handle On The Huum Hive Wood Sauna Stove.
Interior Of The Huum Hive Wood Sauna Stove Firebox Seen Through The Stone Cage.
Huum Hive Wood-Burning Sauna Stove Without Stones, Showing The Firebox And Flue Collar Inside The Stainless Steel Rings.

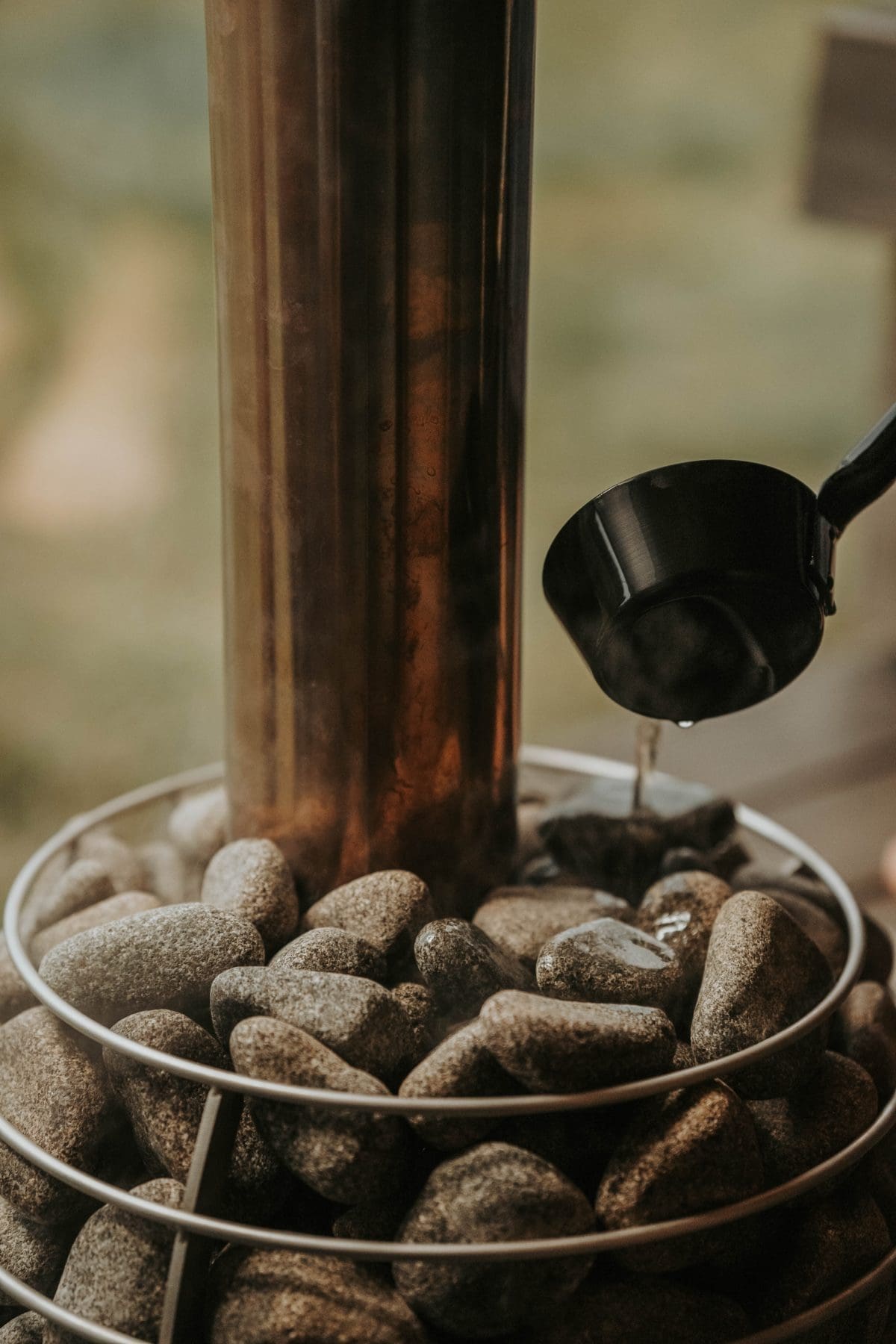

Close-Up Of Sauna Stones Held By The Stainless Steel Bands Of The Huum Hive Wood-Burning Sauna Stove.
Huum Hive Wood-Burning Sauna Stove Filled With Sauna Stones, Front View Of The Firebox Door On White.
Detail Of The Huum Hive Wood-Burning Sauna Stove Firebox Door Frame With The Huum Logo.
The Wooden Huum Door Handle On The Huum Hive Wood-Burning Sauna Stove Firebox, With Sauna Stones Behind It.
Huum Hive Wood 17 Ls Wood-Burning Sauna Stove With A Fire Burning Behind The Glass Firebox Door.

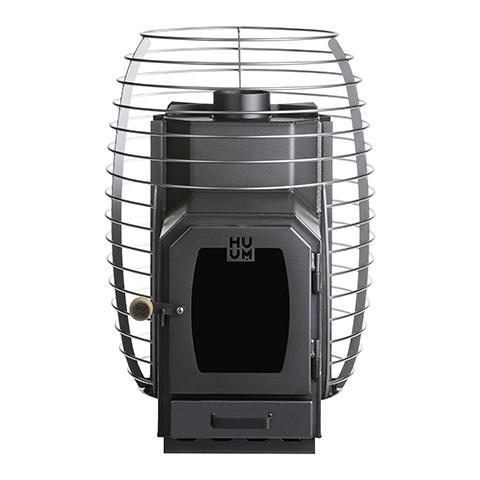

Huum Hive Wood 17 Ls Wood-Burning Sauna Stove Without Stones, Showing The Extended Through-Wall Firebox.
The Wooden Huum Door Handle On A Huum Hive Wood-Burning Sauna Stove, With A Lake View In The Background.

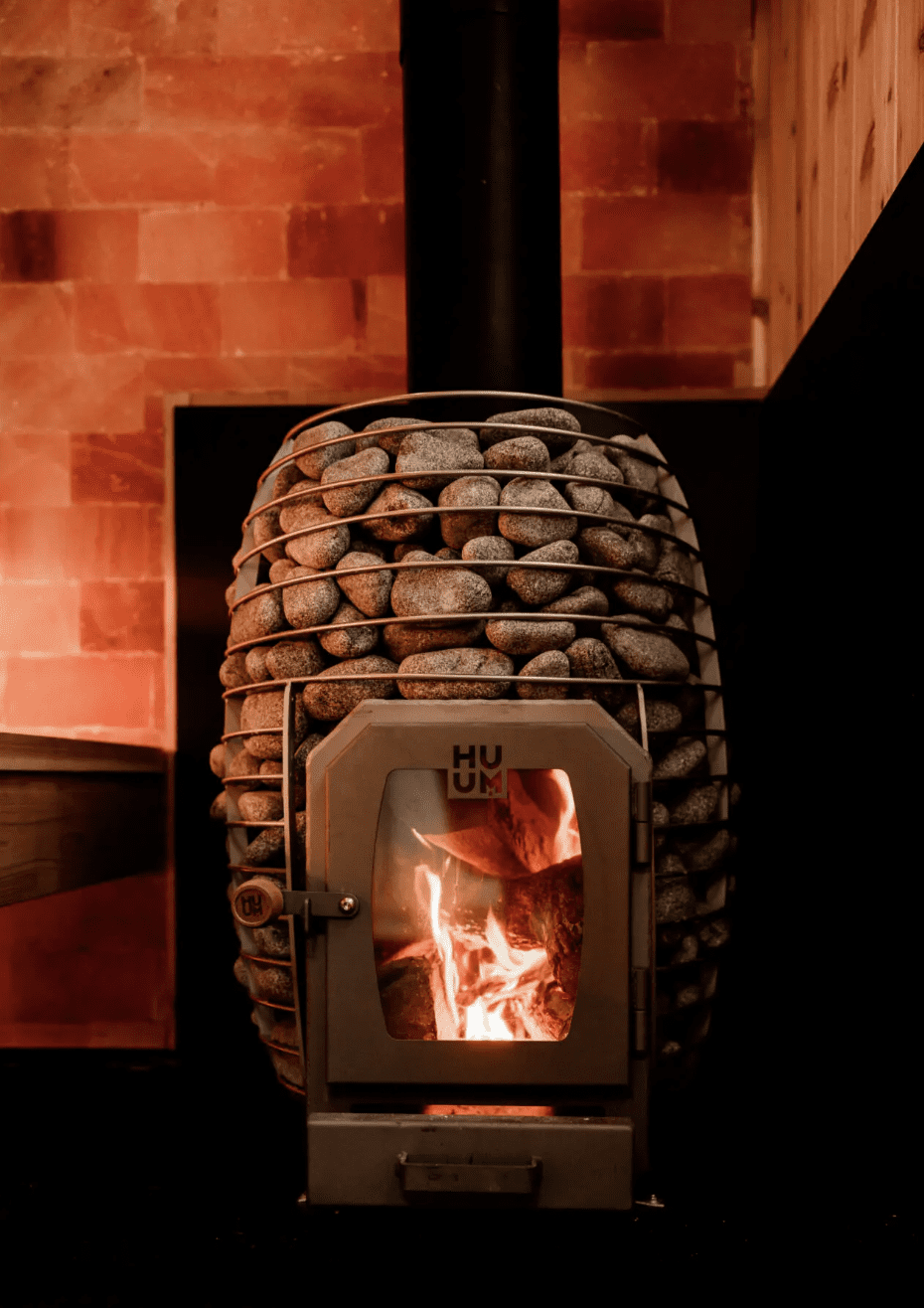

Huum Hive Wood-Burning Sauna Stove With A Fire In The Firebox And Steam Rising From The Stones In A Dark Sauna.

    HUUM HIVE Wood-Burning Sauna Stove | 13, 17 & 17 LS

    HIVE FLOW HIVE Wood

    HUUM HIVE Wood surrounds a heavy firebox with 199 to 287 lb of stones, bringing gentle, water-rich steam to off-grid and wood-fired saunas from 212 to 565 cubic feet. Choose 13 kW, 17 kW, or 17 LS with an extended firebox for feeding from an adjacent room. Stones and a code-compliant chimney system are required and sold separately.

    17 LS wall opening: at least 18.9 in tall x 12.6 in wide through a non-combustible wall; the firebox extension projects 7.3 in from the stove body.

    Build Your Quote:

    HIVE FLOW HIVE Wood

    Price range: $2,150.00 through $2,618.00

    See your heater and options in 3D ↑

    Add the required stones: HIVE Wood 13

    The HIVE Wood 13 holds about 199 lb of 2 to 4 inch stones, and stones do not come in the box with the heater. That comes to 6 boxes. Stack them loosely so air can move between them, and plan on restacking once a year.

    I already have the approved 2–4 inch stones for HIVE Wood 13 I already have the approved 2–4 inch stones for HIVE Wood 13 6 × 33-lb boxes of HUUM STONES 24 (198 lb nominal supplied) +$480.00 6 × 33-lb boxes of HUUM STONES 24 (198 lb nominal supplied)(+$480.00)
    Add the required stones: HIVE Wood 17 / 17 LS

    The HIVE Wood 17 and 17 LS holds about 287 lb of 2 to 4 inch stones, and stones do not come in the box with the heater. That comes to 9 boxes. Stack them loosely so air can move between them, and plan on restacking once a year.

    I already have the approved 2–4 inch stones for HIVE Wood 17 / 17 LS I already have the approved 2–4 inch stones for HIVE Wood 17 / 17 LS 9 × 33-lb boxes of HUUM STONES 24 (297 lb supplied) +$720.00 9 × 33-lb boxes of HUUM STONES 24 (297 lb supplied)(+$720.00)
    HUUM Rock Cage For HUUM HIVE Wood

    The HIVE Stove Stone Cage, designed to complement HUUM wood-burning stoves, is a stainless-steel structure capable of holding up to 88lbs of sauna stones. Its design boosts the efficiency of your sauna by increasing the surface area for water evaporation. It can be stacked for more stone capacity, providing flexibility for your sauna setup.

    None HUUM Cage HSTV For HUUM HIVE Wood +$396.00
    Water Heating

    The HUUM WaterEx is a heat exchanger designed specifically for HIVE sauna stoves. It’s constructed from 0.2 in thick steel and coated with heat-resistant paint for durability. It connects to the water tank via ¾″ male pipes, providing a means of heating water while the sauna is in use. The WaterEx can be placed either on the rear edge or sides of the stove, giving you flexibility in installation.

    None HUUM WaterEx +$211.00
    Sauna Floor Protection

    The HUUM Protective Bed is a key accessory for maintaining the integrity of your sauna setup. Custom-fitted for the HUUM HIVE Wood series, it shields both combustible materials and liquid-based floor heating systems from potential heat damage. Its dark grey finish is designed to blend seamlessly with your HIVE Wood stove. Available in two sizes, the small variant measures 19.7″W x 19.7″D x 0.2″H. This protective bedding offers an essential layer of protection, enhancing the longevity and safety of your HUUM HIVE Wood sauna experience. NOT DESIGNED FOR THROUGH WALL LS MODELS

    None HUUM Protective Bed +$400.00
    Sauna Floor Protection

    The HUUM Protective Bed is a key accessory for maintaining the integrity of your sauna setup. Custom-fitted for the HUUM HIVE Wood series, it shields both combustible materials and liquid-based floor heating systems from potential heat damage. Its dark grey finish is designed to blend seamlessly with your HIVE Wood stove. Available in two sizes, the small variant measures 19.7″W x 19.7″D x 0.2″H. This protective bedding offers an essential layer of protection, enhancing the longevity and safety of your HUUM HIVE Wood sauna experience. NOT DESIGNED FOR THROUGH WALL LS MODELS

    None HUUM Protective Bed +$517.00
    Sauna Floor Protection

    The HUUM Protective Bed is a key accessory for maintaining the integrity of your sauna setup. Custom-fitted for the HUUM HIVE Wood series, it shields both combustible materials and liquid-based floor heating systems from potential heat damage. Its dark grey finish is designed to blend seamlessly with your HIVE Wood stove. Available in two sizes, the small variant measures 19.7″W x 19.7″D x 0.2″H. This protective bedding offers an essential layer of protection, enhancing the longevity and safety of your HUUM HIVE Wood sauna experience. NOT DESIGNED FOR THROUGH WALL LS MODELS

    None HUUM Protective Bed +$647.00
    Sauna Wall Protection

    The HUUM Reflect H and HUUM Reflect HM are purpose-built reflector panels designed for the HIVE series and HIVE Mini series sauna heaters respectively. These reflector panels allow you to install your HUUM HIVE Wood sauna heater closer to the wall, maximizing space without compromising safety. Each reflector panel is constructed from high-quality stainless steel, ensuring durability and longevity. As a bonus, the reflectors can be interconnected for added flexibility and ease of use. These reflector panels are an essential accessory to consider when setting up your HUUM HIVE Wood sauna, and the appropriate one will be provided based on the heater model you order.

    None HUUM Reflect +$328.00
    Sauna Wall Protection

    The HUUM Reflect H and HUUM Reflect HM are purpose-built reflector panels designed for the HIVE series and HIVE Mini series sauna heaters respectively. These reflector panels allow you to install your HUUM HIVE Wood sauna heater closer to the wall, maximizing space without compromising safety. Each reflector panel is constructed from high-quality stainless steel, ensuring durability and longevity. As a bonus, the reflectors can be interconnected for added flexibility and ease of use. These reflector panels are an essential accessory to consider when setting up your HUUM HIVE Wood sauna, and the appropriate one will be provided based on the heater model you order.

    None HUUM Reflect +$302.00

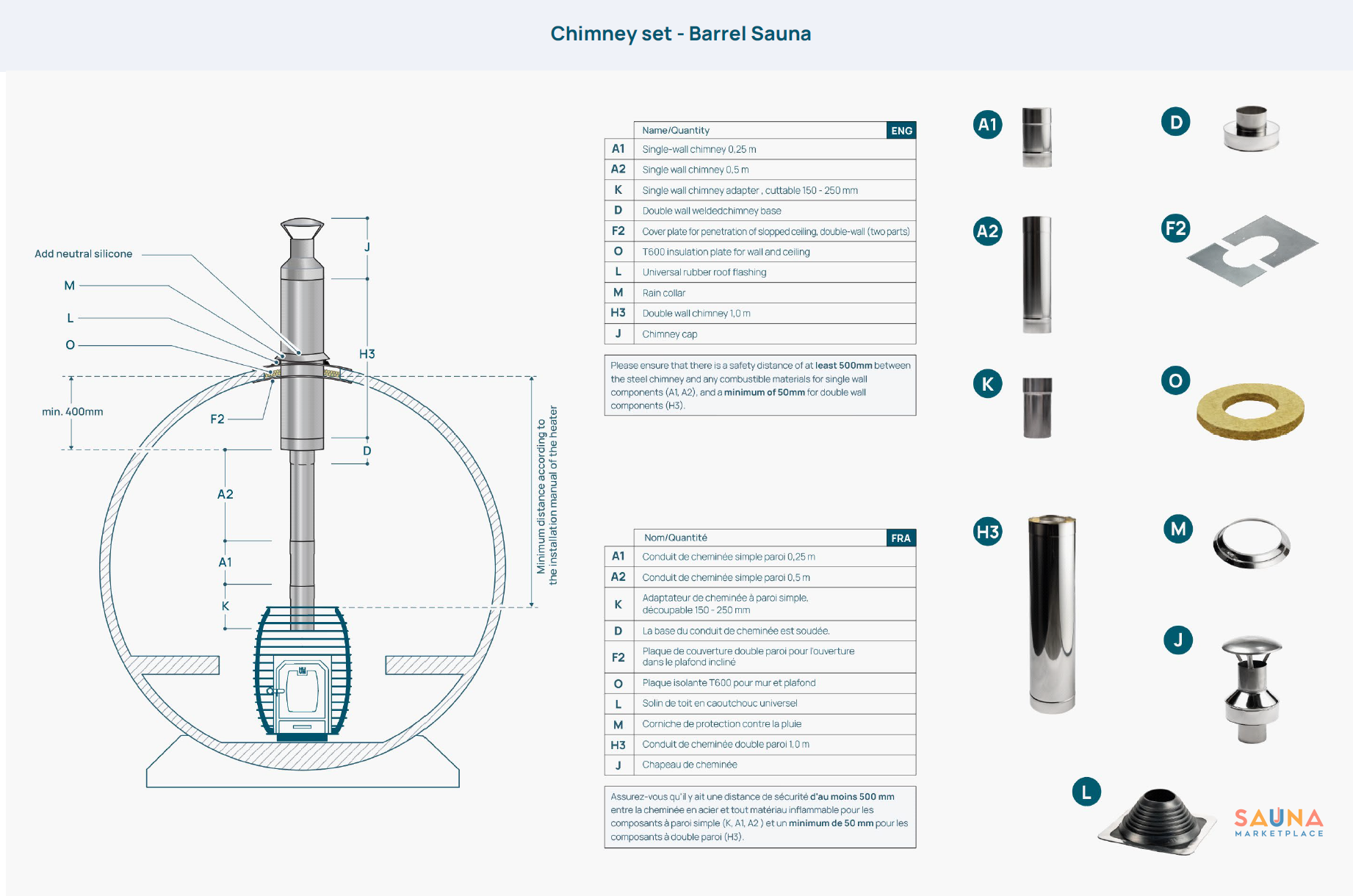

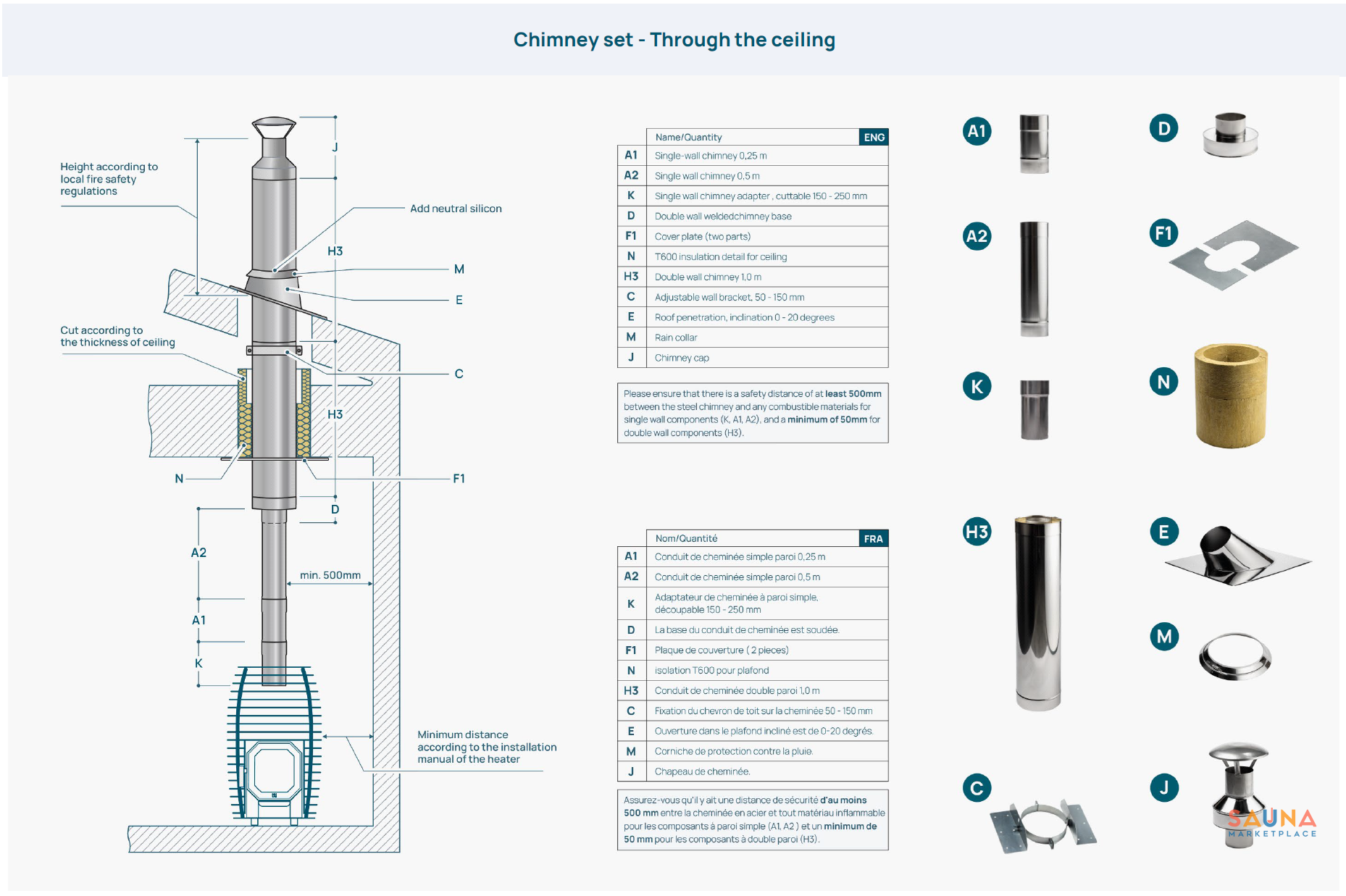

    Compatible Chimney Kits

    All chimney kits from HUUM and Harvia work great with the HUUM HIVE Wood. See below for specs.

    None HUUM Sloped Roof Chimney Kit - Stainless Steel +$1,342.00 HUUM Barrel Sauna Chimney Kit - Stainless Steel +$1,559.00 HUUM Thru-Wall Chimney Kit - Stainless Steel +$1,670.00
    Free Quote For Sauna Wood

    Did you know Sauna Marketplace specializes in premium Sauna Woods? Whether you’re looking for the highest grade material, a specific look, or to save money we have something for you.

    Share your selected options and add-ons. Prices and availability are confirmed when the link is opened.

    Installation checklist, manuals and support

    Keep the selected model and required components together before your installer starts.

    Open your installation pack

    Your orders and saved documents · Contact Sauna Marketplace · 844-565-1113

    We added you to this product's waitlist and we'll send you an email when the product is available.

    Leave Waitlist

    This product is currently sold out.

    No worries! Enter your email, and we'll let you know as soon as it's back in stock.

    Pay over time:
    Pay with HSA/FSA:
    HUUM

    HUUM HIVE HEAT

    The HUUM HIVE Wood Series encapsulates the essence of the sauna experience - the captivating power of fire, the rejuvenating warmth of steam, and the primal delight of wood. Showcasing a blend of modern engineering and traditional aesthetics, the HUUM HIVE Wood stoves are less about efficiency and more about the immersive sauna experience they offer.

    The HUUM HIVE Wood Series invites you to a truly authentic sauna journey with three distinct models catering to different needs and preferences.

    Powerful Heat Output

    At the heart of the HUUM HIVE Wood Series are its generous kilowatt ratings. The HIVE Wood 13 is rated at 13 kW, while the HIVE Wood 17 and HIVE Wood 17 LS boast an impressive 17 kW power. This robust performance ensures that you can quickly heat your sauna to the perfect temperature for a deeply relaxing experience.

    Generous Stone Capacity

    Every HUUM HIVE Wood stove is designed with a substantial stone capacity. The HIVE Wood 13 accommodates up to 199 lbs of stones, while the HIVE Wood 17 and 17 LS can hold a hefty 287 lbs. This allows for prolonged heat retention and an outstanding steam production, amplifying your sauna session.

    Spacious Sauna Room Size Compatibility

    The HIVE Wood Series is built to accommodate spacious sauna rooms. The HIVE Wood 13 is perfect for spaces between 212-459 sq ft (6-13 m3), while the HIVE Wood 17 and 17 LS can heat up rooms from 283-565 sq ft (8-16 m3). This makes them suitable for family saunas or communal spaces where you can enjoy the traditional sauna experience with others.

    Beautiful Large Door Glass

    An outstanding feature of the HUUM HIVE Wood series is the large door glass that elegantly showcases the lively dance of the flames inside the stove. This visually enchanting element adds a romantic glow to your sauna room, making your sauna sessions even more soothing and calming.

    Convenient Wood Feeding Options

    HUUM understands that different sauna setups have different needs. Therefore, the HUUM HIVE Wood Series offers inside and outside wood feeding options. The HIVE Wood 13 and HIVE Wood 17 feature inside wood feeding, while the HIVE Wood 17 LS allows for outside wood feeding, catering to the specific installation and safety requirements of your sauna.

    Impeccable Quality

    Designed, engineered, and manufactured in Estonia, the HUUM HIVE Wood series exemplifies top-notch European quality. Each model is crafted with attention to detail, ensuring durability and long-lasting performance. From the sturdy body to the elegantly large door glass, the HIVE Wood series is built to offer you an authentic and exceptional sauna experience.

    With the HUUM HIVE Wood Series, you can create a warm and inviting sanctuary right in your home. The primal charm of wood, the gentle crackling of the fire, and the soothing warmth of the sauna blend together to deliver an unparalleled relaxation experience. Dive into the immersive world of traditional sauna with the HUUM HIVE Wood Series.

    HUUM HIVE Wood Compatible Chimney Kits

    5.0★★★★★
    5 ★
    4 ★
    3 ★
    2 ★
    1 ★

    Reviews from owners

    Reviews left on SaunaMarketplace.com and notes owners sent our team, word for word. Every rating goes through the same check before it appears, and names are shortened to a first name and last initial. A verified buyer bought it here.

    Photos from owners

    Close-up of the HUUM HIVE wood-burning stove and chimney inside a Thermory barrel sauna kit
    A close look at the heater stones and chimney pipe inside this barrel sauna. Photo: Matt B.
    ★★★★★

    This stove exceeded our expectations! I was worried that it wouldn't get our steam room hot enough and wow was I wrong! The heat is incredible and I even prefer the feel compared to other top local stoves.

    Taylor✓ Verified buyerReview on SaunaMarketplace.com
    ★★★★★

    Construction looks great, still completing project unable to comment on performance.

    Lars✓ Verified buyerReview on SaunaMarketplace.com

    Write a review

    Bought it from us? Your review shows as a verified buyer. Every rating goes through the same check before it appears, and your name is shortened to a first name and last initial.

    Your rating

    You have to be logged in to be able to add photos to your review.

    Planning guides: Sauna heater calculatorWood sauna stove guide

    Expert help that stays with you

    Small details become expensive problems once installation begins. We ask the questions early, so a mismatched part, an overlooked requirement or an installation issue gets caught while it is still easy to fix.

    Our job does not end when your order ships. We stay available through installation and beyond. If something needs attention, we stay involved, work the problem, and help see it through.

    We want you to feel good about choosing Sauna Marketplace long after your first session, and confident recommending us to a friend. That standard guides the advice we give, the products we sell, and the way we take care of our customers.

    Sauna and heater customers also receive free shipping on sauna accessories for life.

    Planning a sauna, or need help with one you purchased from us? Our founders have built saunas from the crate up and both run saunas at home. New customers and existing Sauna Marketplace sauna and heater owners can Open the 3D planner.

    Includes

    What Is Included

    13

    Included with purchase

    Wood-fired sauna stove installation and operation manual.

    Required separately

    198 lb stones (quantity 6 × 33 lb 2 to 4 in stones boxes).

    17

    Included with purchase

    Wood-fired sauna stove installation and operation manual.

    Required separately

    286 lb stones (quantity 9 × 33 lb 2 to 4 in stones boxes).

    17 LS

    Included with purchase

    Wood-fired sauna stove installation and operation manual.

    Required separately

    286 lb stones (quantity 9 × 33 lb 2 to 4 in stones boxes).

    Contents vary by configuration. Check the row for the option selected above.

    Technical Specifications

    Technical Specifications

    At a Glance

    At a Glance
    Heat Source

    Wood-burning
    Sauna Room Size

    13: 212 to 459 cu ft · 17: 283 to 565 cu ft · 17 LS: 283 to 565 cu ft
    Sauna Ceiling Height

    At least 76.8 in floor to ceiling
    Power

    13 and 17 kW
    Mounting

    Floor-standing
    Loading

    Inside the sauna or Through the wall, from the next room
    Stones

    199 to 287 lb, by size
    Warranty

    3 years home use, 1 year commercial use (HUUM Limited Warranty v4)
    Made in

    Estonia

    Model & Application

    Model & Application
    Brand

    HUUM
    Catalog Product

    HUUM HIVE Wood-Burning Sauna Stove | 13, 17 & 17 LS
    Heater Type

    Wood-burning sauna stove
    Model Number

    13 kW: HIVE WOOD 13; 17 kW: HIVE WOOD 17; 17 kW: HIVE WOOD 17 LS
    SKU / Part Number

    13 kW: H1008012; 17 kW: H1009012; 17 kW: H1010012

    Sauna Sizing

    Sauna Sizing
    Maximum Room Volume

    13 kW: 459 ft³; 17 kW: 565 ft³
    Minimum Room Volume

    13 kW: 212 ft³; 17 kW: 283 ft³

    Electrical

    Electrical
    Rated Power

    13 kW: 13 kW; 17 kW: 17 kW

    Fuel & Venting

    Fuel & Venting
    Maximum Log Length

    13 kW: 11.81 in; 17 kW: 15.75 in

    Dimensions & Weight

    Dimensions & Weight
    Assembled Dimensions

    13 kW: 17.7"W x 18.11"D x 29.6"H; 17 kW: 21.9"W x 23.2"D x 29.6"H; 17 kW: 21.9"W x 29.1"D x 29.6"H
    Heater Diameter

    13 kW: 17.72 in; 17 kW: 21.85 in
    Heater Height

    29.53 in
    Heater Weight

    13 kW: 99 lb; 17 kW: 154 lb
    Minimum Host-Room Height

    76.77 in
    Product Weight

    13 kW: 104 lbs; 17 kW: 143 lbs; 17 kW: 170 lbs

    Installation Clearances

    Installation Clearances
    Ceiling-Clearance Reference Height Above Finished Floor

    29.53 in
    Ceiling-Clearance Reference Plane

    Top Of Rocks
    Front Clearance

    13 kW: 35.43 in; 17 kW: 39.37 in
    Rear Clearance

    13 kW: 9.84 in; 17 kW: 19.68 in
    Left-Side Clearance

    13 kW: 7.48 in; 17 kW: 19.68 in
    Right-Side Clearance

    13 kW: 7.48 in; 17 kW: 19.68 in
    Combustible-Floor Protection Added Width Beyond Door

    23.62 in
    Combustible-Floor Protection Front Depth

    15.75 in
    Combustible Side Clearance

    13 kW: 7.48 in; 17 kW: 19.68 in
    Noncombustible Wall Clearance

    3.94 in
    Top of Rocks Above Finished Floor

    29.53 in

    Through-Wall Installation (17 LS)

    Through-Wall Installation (17 LS)
    Wall Opening, Minimum

    17 LS: 18.9 in tall x 12.6 in wide. HUUM adds 0.8 in of air gap to door height D 18.1 in and door width G 11.8 in.
    Wall Material

    Non-combustible (stone, concrete). HUUM recommends mineral-wool insulation around the furnace bushing.
    Firebox Extension Projection

    17 LS: 7.3 in beyond the stove body; the standard door projects 1.4 in.
    Loading-Side Floor Protection

    If the floor in front of the furnace door is combustible: non-combustible protection 23.63 in wider than the 11.8 in door and at least 15.75 in deep.

    Installation

    Installation
    Flue Outlet Diameter

    4.53 in

    Included & Required

    Included & Required
    Included Components

    Wood-fired sauna stove Installation and operation manual
    Required, Not Included

    13 kW: 198 lbs stones (Qty 6 x 33 lbs 2 to 4 in stones boxes); 17 kW: 286 lbs stones (Qty 9 x 33 lbs 2 to 4 in stones boxes)

    Certifications

    Certifications
    Certifications & Listings

    CE

    Warranty

    Warranty
    Residential Warranty

    3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

    Use the attached current manual and a qualified installer for final sizing, wiring, clearances, venting, and local-code compliance.

    How It Fits

    How This Product Fits the System

    What it is used for

    A wood-burning sauna heater that heats the room and stone mass for traditional löyly. Treat the stove, chimney, floor protection, clearances, combustion air, ventilation, and stones as one installation system.

    What to plan

    • 17 LS through-wall: the furnace bushing passes through a non-combustible wall (stone, concrete) opening at least 18.9 in tall x 12.6 in wide; the extension projects 7.3 in from the stove body. Insulate the bushing with mineral wool and protect a combustible floor on the loading side.
    • Size from adjusted sauna volume, including the effect of glass, masonry, and other uninsulated surfaces; do not size from floor area alone.
    • Match the selected model's power or fuel, voltage, phase, circuit, wire, control, stone, and venting requirements before ordering.
    • Treat clearances, ceiling reference planes, ventilation, guarding, floor protection, and service access as one room-layout decision.
    • Follow the current installation manual and use a qualified installer.

    Required separately

    Complete the system with these items.

    Designed to work with

    Model-specific replacements and compatible system components.

    Optional accessories

    Optional upgrades and accessories.

    Attachments
    Legacy manuals for older installations

    Use these only when the document revision matches the installed product.

    Gallery
    Huum Hive Wood 17 Shown Large With Smaller 13 And 17 Ls Real Stove Variants On Black Sauna Cladding, Plus Verified Kw, Cubic-Foot Coverage, And Dimensions.
    Huum Hive Wood Wood-Burning Sauna Stove
    Huum Hive Wood Clearance Diagram And Per-Model Safety Distance Table, In Inches.
    Huum Hive Wood Installed In A Sauna
    Huum Hive Wood Stove And Stone Basket In Use
    Huum Hive Wood 13 Wood-Burning Sauna Stove Surrounded By Its Stone Cage.
    Huum Hive Wood 17 Wood-Burning Sauna Stove Surrounded By Its Stone Cage.
    Huum Hive Wood 17 Ls Long-Firebox Wood-Burning Sauna Stove Surrounded By Its Stone Cage.
    Huum Hive Wood 13 Wood-Burning Sauna Stove With The Stone Cage Empty, Showing The Steel Body.
    Huum Hive Wood Wood-Burning Sauna Stove Shown With The Chimney Fitted.
    Detail Of The Glass Firebox Door And Wooden Handle On The Huum Hive Wood Sauna Stove.
    Close-Up Of The Turned Wooden Door Handle On The Huum Hive Wood Sauna Stove.
    Interior Of The Huum Hive Wood Sauna Stove Firebox Seen Through The Stone Cage.
    Huum Hive Wood-Burning Sauna Stove Without Stones, Showing The Firebox And Flue Collar Inside The Stainless Steel Rings.
    Close-Up Of Sauna Stones Held By The Stainless Steel Bands Of The Huum Hive Wood-Burning Sauna Stove.
    Huum Hive Wood-Burning Sauna Stove Filled With Sauna Stones, Front View Of The Firebox Door On White.
    Detail Of The Huum Hive Wood-Burning Sauna Stove Firebox Door Frame With The Huum Logo.
    The Wooden Huum Door Handle On The Huum Hive Wood-Burning Sauna Stove Firebox, With Sauna Stones Behind It.
    Huum Hive Wood 17 Ls Wood-Burning Sauna Stove With A Fire Burning Behind The Glass Firebox Door.
    Huum Hive Wood 17 Ls Wood-Burning Sauna Stove Without Stones, Showing The Extended Through-Wall Firebox.
    The Wooden Huum Door Handle On A Huum Hive Wood-Burning Sauna Stove, With A Lake View In The Background.
    Huum Hive Wood-Burning Sauna Stove With A Fire In The Firebox And Steam Rising From The Stones In A Dark Sauna.
