Specs
Weight26.5 lbs
Dimensions22″W x 25″D x 2″-3″H
Depth25″ in
FeaturesAluminum-zinc coated steel, Black, Adjustable feet, For wood burning sauna heaters, Helps protect floors, Dimensions: 22″ W, 25″ D,2″-3″ H, Can be installed on a sloping floor, 2-year warranty
ModelWL110
Part NumberWL110
Included ComponentsProtective Bedding
Installation ManualInstallation Manuals
MaterialAluminum-zinc coated steel, painted black
FeetAdjustable; can be installed on a sloping floor
When RequiredWhen the stove is installed on a waterproofed tile or hardwood floor
FitsHarvia’s wood-burning stove range as listed in the Harvia woodburning stove manual, M1, M2, M3, M3 SL, 20 Pro, 26 Pro, 36, 20 SL, 20 Duo, 36 Duo, 20 RS/LS Pro, 20 Boiler, 20 SL Boiler, Classic 140/220/280, Classic 220 Duo, Premium, Premium VS, Linear 16, 16, Linear 22, 22, Linear 22 RS/LS, Linear 28
Not ForHarvia 20 ES Pro/S and Linear 22 ES, those take the WX018 or WL100 plate
Warranty2 years, family use; 1 year, non-consumer or commercial use
UPC6417659017916
Includes

What Is Included

All configurations

Included with purchase

Protective bedding.

Contents vary by configuration. Check the row for the option selected above.

How It Fits

How This Product Fits the System

What it is used for

A floor-protection base for the named wood stove. It helps protect the installation surface but does not remove the stove's required floor and combustible clearances.

What to plan

  • Start with the heater, chimney, or control model—not brand alone—then confirm the accessory part number and configuration.
  • Optional accessories are not required unless the selected product or installation manual says otherwise.
  • Replacement and installation parts must follow the current system manual, clearances, and local code.

Optional accessories

Optional upgrades and accessories.

Products that use this item

This item is used by the following products.

Attachments
Gallery
Harvia Protective Bedding Lg
Harvia Protective Bedding Lg
Click to enlarge

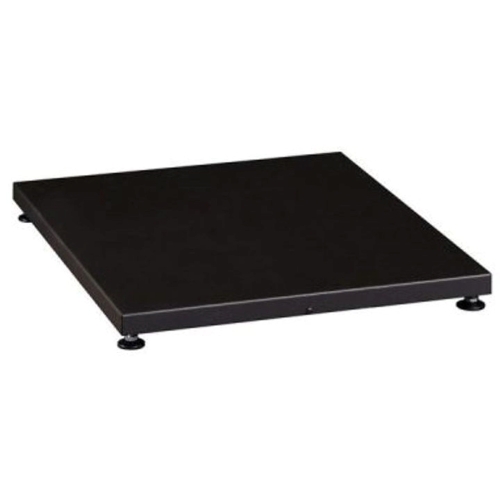

    Harvia WL110 Protective Bedding for Wood Sauna Stoves | 22 x 25 in

    An aluminum-zinc-coated steel plate with adjustable feet that goes under a wood-burning sauna stove. Harvia’s instruction sheet is direct about when it is not optional: “the protective bedding must be used when the stove is installed on e.g. tile floor with a water barrier treatment.” Harvia lists it for its wood-burning stove range with two exceptions, the 20 ES Pro/S and the Linear 22 ES. It measures 22 x 25 in and 2–3 in high, weighs 26.5 lb, and the feet let you level a stove on a floor that slopes to a drain.

    Build Your Quote:

    $356.00

    Shipping

    Free Shipping On Accessories
    Valid for orders over $200, or for anyone who has ever purchased a sauna or heater on Sauna Marketplace.

    Shop Saunas | Shop Sauna Heaters

    Share your selected heater size and add-ons. Prices and availability are confirmed when the link is opened.

    Zero Interest Payments:

    Buy Now, Pay Later with premium financing packages only available on Sauna Marketplace.

    Pay with HSA/FSA:

    We teamed up with FLEX to make HSA/FSA payments easier than ever.

    Harvia

    Built for these

    What’s included

    • Protective bedding plate

    Harvia’s instruction sheet names the case for this part directly: “Protective bedding is made of aluminum-zinc-coated steel sheet. The protective bedding must be used when the stove is installed on e.g. tile floor with a water barrier treatment.”

    Put in plainer words, it is used “when a fireplace or stove is installed onto a waterproofed tile or hardwood floor”, it is for wood-burning sauna heaters, and its feet are adjustable so it can be installed on a sloping floor.

    Which stoves it is for

    Harvia’s wood-burning stove manual (the one covering the M, Pro, Classic and Linear ranges) lists this plate in its accessories section as “Harvia protective bedding WL110 (not for models 20 ES Pro/S, Linear 22 ES)”. Those two models take the WX018 or WL100 plate instead, which the same list excludes for the 20 RS/LS Pro, 36, 36 Duo, Premium VS and Linear 22 RS/LS. For a stove outside that manual’s model list, measure the footprint against the plate’s 22 x 25 in.

    Plan the flue at the same time. The same manual notes that the wall opening for the flue connection “has to be at the correct height, if you intend to use, for instance, a protective bedding”, this plate stands 2 to 3 in high and lifts the stove by that much.

    Specifications

    Spec Value
    Dimensions (W x D x H) 22 x 25 in x 2–3 in (560 x 636 x 60–3 in)
    Weight 26.5 lb
    Material / finish Aluminum-zinc coated steel, painted black
    Feet Adjustable; can be installed on a sloping floor
    Required when The stove is installed on a waterproofed tile or hardwood floor
    Not for Harvia 20 ES Pro/S, Linear 22 ES
    Warranty 2 years family use; 1 year commercial use
    GTIN / UPC 6417659017916
