Specs
Dimensions31.5800 in
Includes

What Is Included

All configurations

Included with purchase

Harvia protective sheath, installation manual.

Contents vary by configuration. Check the row for the option selected above.

How It Fits

How This Product Fits the System

What it is used for

A model-specific heat shield or reflector used to reduce the installation envelope only where the current heater manual explicitly allows it. It does not make other clearances optional.

What to plan

  • Start with the heater, chimney, or control model, not the brand alone, then confirm the accessory part number and configuration.
  • Optional accessories are not required unless the selected product or installation manual says otherwise.
  • Replacement and installation parts must follow the current system manual, clearances, and local code.

Optional accessories

Optional upgrades and accessories.

Products that use this item

This item is used by the following products.

Attachments
Gallery

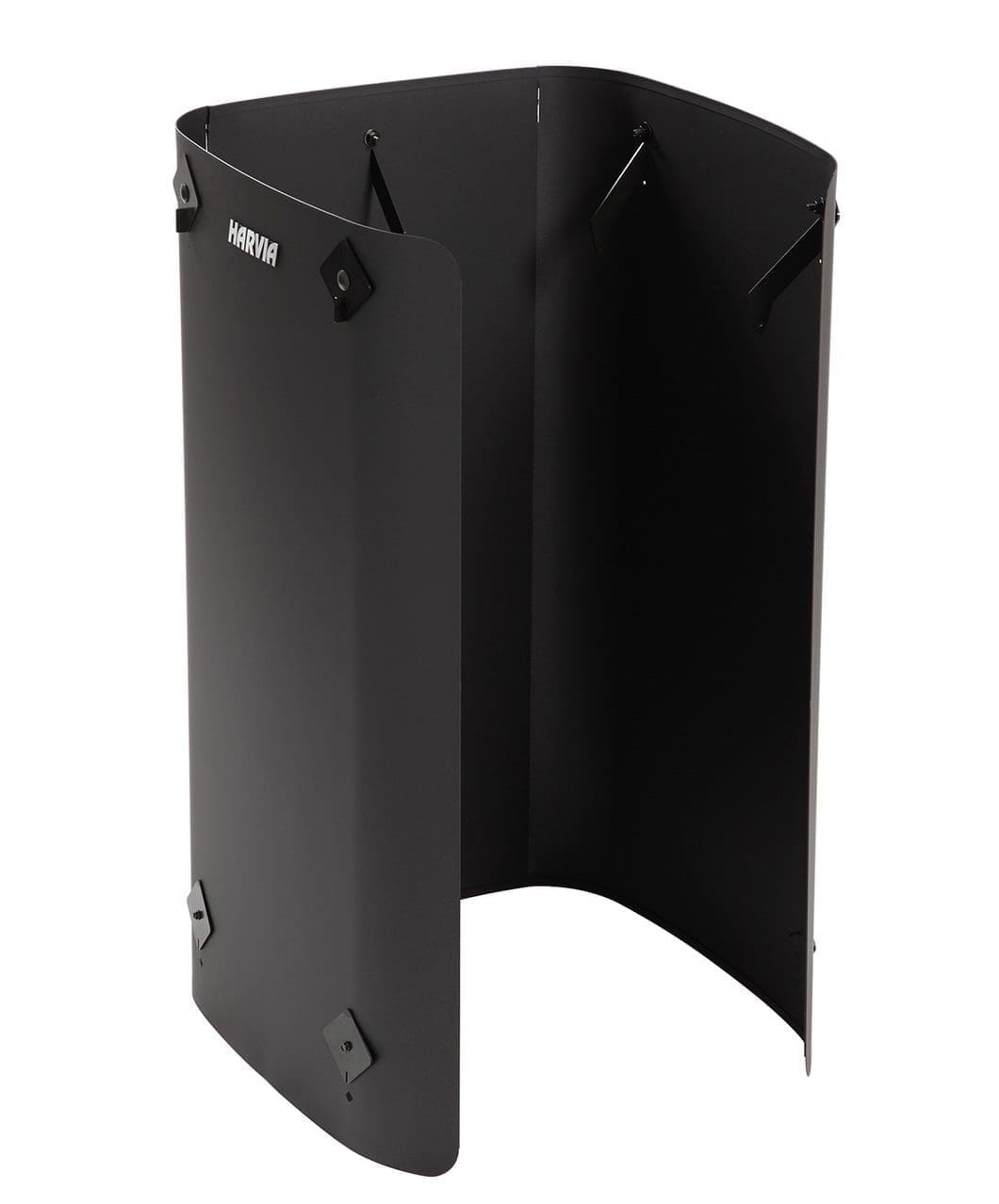

Harvia WL450 – Protective Shield for M1, M2, M3, and M3 SL

The Harvia WL450 is a three-sided protective sheath for M1, M2, M3 and M3 SL wood-burning stoves. It reduces the specified clearances on the protected sides and rear. Front, ceiling and chimney requirements remain separate.

Build Your Quote:

$409.00

Share your selected options and add-ons. Prices and availability are confirmed when the link is opened.

Pay over time:

Choose Affirm at checkout to see your payment options. Approval and terms depend on eligibility.

Pay with HSA/FSA:

We teamed up with FLEX to make HSA/FSA payments easier than ever.

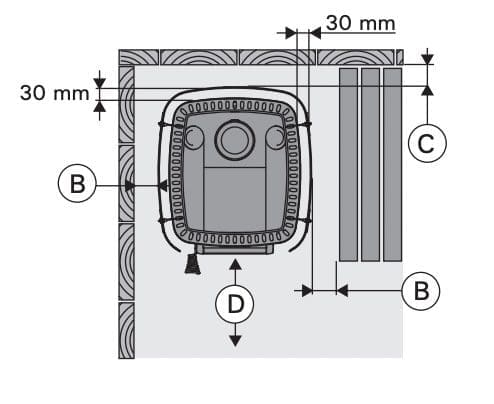

Safety Distances / Clearance With Safety Shield

For M1, M2, M3, and M3SL

Safety distances with WL450 protective sheaths (all dimensions in millimeters)

Harvia M3 Clearances With Protective Shield

Measure from the outside of the fitted sheath

For M3 and M3 SL, keep at least 1.97 in from the outside of the fitted WL450 to combustible side or rear walls and benches. The stove-to-sheath mounting gap is separate; 1.97 in is not a bare-stove wall clearance. The WL450 protects both sides and the rear.

The loading-door clearance remains at least 11.82 in for M3 and 19.69 in for M3 SL. Ceiling and connecting-pipe clearances remain separate.

M3 SL feed-wall limit

With WL450, use a concrete or brick M3 SL feed wall no thicker than 4.92 in. Thicker walls need Harvia confirmation for the sheath installation. The sheath does not replace the specified noncombustible wall or loading-side floor protection.

With a Harvia steel chimney, start the insulated chimney at or below the sheath top unless the tank installation has its own specified protection arrangement. An exposed connector above the sheath does not receive the reduced stove-wall clearance.

Read the WL400/WL450 installation and clearance instructions.

GTIN

Where can I find the manual?

https://saunamarketplace.com/wp-content/uploads/2022/11/Harvia-WL450-IOM-m3-protective-shield.pdf
