Large Harvia Linear 16 Wood-Burning Sauna Stove With 17.9 Kw Output, 212 To 565 Cubic Foot Room Capacity, And Exterior Dimensions.
Large Harvia Linear 16 Wood-Burning Sauna Stove With 17.9 Kw Output, 212 To 565 Cubic Foot Room Capacity, And Exterior Dimensions.
Harvia 160C Wood Sauna Stove

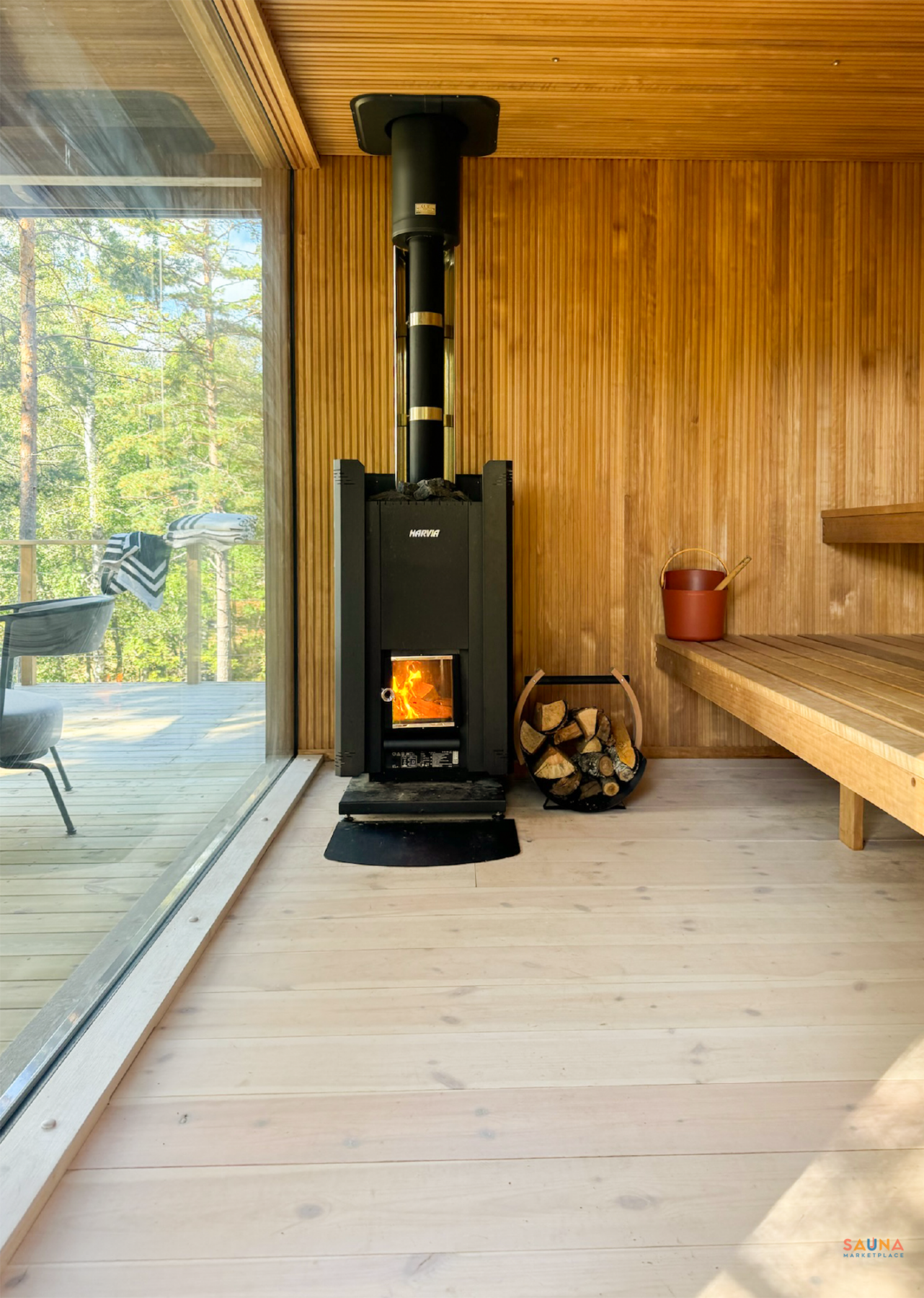

Harvia Linear 28
Click to enlarge
Expert help that stays with you

Whether you’re choosing one component or planning the whole room, small details can become expensive problems once installation begins. We know the products we sell and the questions to ask early, helping catch mismatched components, overlooked requirements, and installation issues while they are still easy to fix.

Our job does not end when your order ships. We stay available through installation and beyond. If something needs attention, we stay involved, work the problem, and help see it through.

We want you to feel good about choosing Sauna Marketplace long after your first session, and confident recommending us to a friend. That standard guides the advice we give, the products we sell, and the way we take care of our customers.

Sauna and heater customers also receive free shipping on sauna accessories for life.

Planning a sauna, or need help with one you purchased from us? Our founders have assembled many of the saunas we sell, visited the manufacturers, and use these products every day. New customers and existing Sauna Marketplace sauna and heater owners can Book a Ben consultation.

Includes

What Is Included

All configurations

Included with purchase

Sauna heater, cast-iron glass door, installation and operation manual.

Required separately

80 lb of split-face sauna stones (quantity 2 × 44 lb of 4 to 6 in stones).

Contents vary by configuration. Check the row for the option selected above.

Technical Specifications

Technical Specifications

Model & Application

Model & Application
Brand

Harvia
Catalog Product

Harvia Linear 16
Heater Type

Wood-burning sauna stove
Model Number

LINEAR 16 BLACK
SKU / Part Number

WK160C

Sauna Sizing

Sauna Sizing
Maximum Room Volume

565 ft³
Minimum Room Volume

212 ft³

Electrical

Electrical
Rated Power

17.9 kW

Dimensions & Weight

Dimensions & Weight
Minimum Host-Room Height

80.12 in
Product Weight

102.7 lbs

Stone Capacity & Performance

Stone Capacity & Performance
Stone Capacity

80 lbs

Installation Clearances

Installation Clearances
Ceiling-Clearance Reference Height Above Finished Floor

28.94 in
Ceiling-Clearance Reference Plane

Stove Top
Front Clearance

15.75 in
Rear Clearance

13.78 in
Left-Side Clearance

11.81 in
Right-Side Clearance

11.81 in

Included & Required

Included & Required
Included Components

Sauna Heater, Cast-Iron Glass Door, Installation and Operation Manual
Required, Not Included

80 lbs of Split-Face Sauna Stones (Qty 2 x 44 lbs of 4 to 6 in stones)

Certifications

Certifications
Certifications & Listings

CE, EAC

Warranty

Warranty
Residential Warranty

Warranty

Use the attached current manual and a qualified installer for final sizing, wiring, clearances, venting, and local-code compliance.

How It Fits

How This Product Fits the System

What it is used for

A wood-burning sauna heater that heats the room and stone mass for traditional löyly. Treat the stove, chimney, floor protection, clearances, combustion air, ventilation, and stones as one installation system.

What to plan

  • Size from adjusted sauna volume, including the effect of glass, masonry, and other uninsulated surfaces; do not size from floor area alone.
  • Match the selected model's power or fuel, voltage, phase, circuit, wire, control, stone, and venting requirements before ordering.
  • Treat clearances, ceiling reference planes, ventilation, guarding, floor protection, and service access as one room-layout decision.
  • Follow the current installation manual and use a qualified installer.

Required separately

Complete the system with these items.

Optional accessories

Optional upgrades and accessories.

Other heater options

Compare these options; sizing, power, controls, clearances, and stones may differ.

Attachments
Gallery
Large Harvia Linear 16 Wood-Burning Sauna Stove With 17.9 Kw Output, 212 To 565 Cubic Foot Room Capacity, And Exterior Dimensions.
Large Harvia Linear 16 Wood-Burning Sauna Stove With 17.9 Kw Output, 212 To 565 Cubic Foot Room Capacity, And Exterior Dimensions.
Harvia 160C Wood Sauna Stove
Harvia Linear 28
Click to enlarge

    Harvia Linear 16

    The Linear 16 wood-burning sauna stove is source of glowing heat for smaller saunas. Through the warm glow of the cast-iron glass door, with optional door direction, the fire enhances the sauna atmosphere. The fire chamber and combustion air channels of Harvia wood burning heaters are designed so that sauna warms quickly and the burning is cleaner.

    Build Your Quote:

    $961.00

    Sauna Stones
    None 80 Pounds of Harvia Sauna Stones - Harvia AC3020 x 2. Required for Operation +$55.00
    Harvia Chimney Parts, in Black
    None Harvia WHP1500M Chimney Kit (59 in) +$1,256.00 Harvia WHP1000M | 39.4 in Chimney Extension +$477.00 Harvia WHP500M | 19.7 in Chimney Extension +$332.10 Harvia Pipe Adaptor +$105.00
    Protective Floor
    None Harvia Protective Bedding +$356.00
    Protective Shield
    None Linear 16 Protective Shield +$624.00

    Share your selected heater size and add-ons. Prices and availability are confirmed when the link is opened.

    Zero Interest Payments:

    Buy Now, Pay Later with premium financing packages only available on Sauna Marketplace.

    Pay with HSA/FSA:

    We teamed up with FLEX to make HSA/FSA payments easier than ever.

    Harvia

    The Linear 16 wood burning heater is source of glowing heat for smaller saunas up to 459 cu. ft. Through the warm glow of the cast-iron glass door, with optional door direction, the fire enhances the sauna atmosphere. The fire chamber and combustion air channels of Harvia wood burning heaters are designed so that sauna warms quickly and the burning is cleaner.

    The Linear 16 wood-burning heater is the source of glowing heat for smaller saunas. The fire enhances the sauna atmosphere through the warm glow of the cast-iron glass door, with an optional door direction. The fire chamber and combustion air channels of Harvia wood-burning heaters are designed so that sauna warms quickly and the burning is cleaner. The wood-burning heaters meet the requirements for CE-marking.

    The recommended size of the sauna room is 212 to 565 cu. ft., and the maximum amount of stones recommended is 80 lbs.

    • Durable steel structure and replaceable internals ensure a long service life
    • Wood burning
    • 17.9 kW
    • For sauna rooms from 212 to 565 cu. ft.
    • Requires a maximum of 80 lbs of stones (2 boxes-AC3020)
      • Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
    • Floor-vertical installation
    • Cast-iron glass door and combustion air channels to provide a quicker and cleaner burn
    • Sleek black design to fit any atmosphere
    • Designed, engineered, and made in Finland
    • Dimensions: 16.54" W x 17.72" D x 29.94" H
    • 2-year warranty (Consumer use)

    Includes:

    • Heater
    • Cast-iron glass door
    • Installation and operating instructions
    ModelWK160C
    Kilowatt Rating17.9 kW
    Main materialSteel
    Primary FuelWood
    Stone sizes4 to 6 in
    Width16.54" W
    Depth17.72" D
    Height29.94" H
