Leil Patio XXS imperial dimension drawing
Original manufacturer document. Review the exact Patio XXS configuration and current installation requirements.

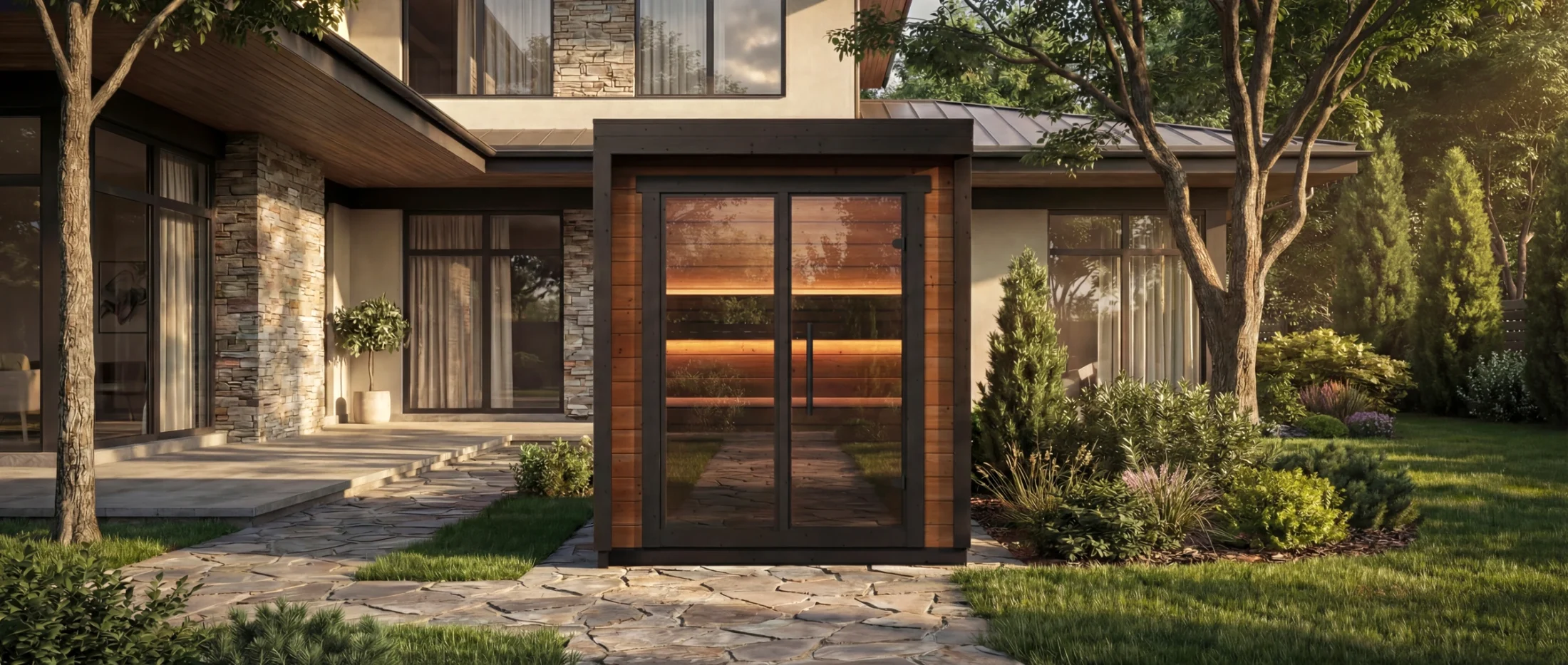

Room for the sauna. Room left in the yard.

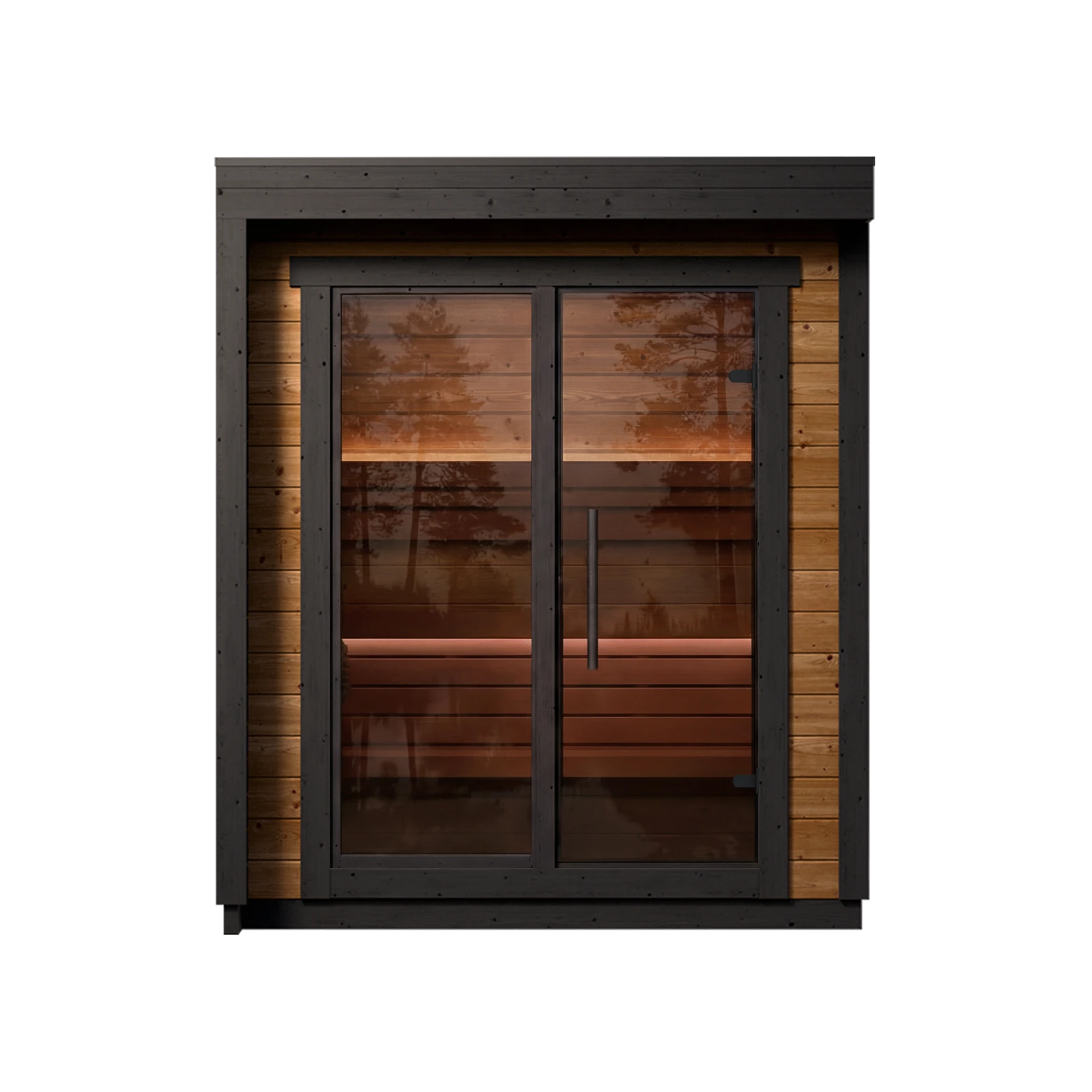

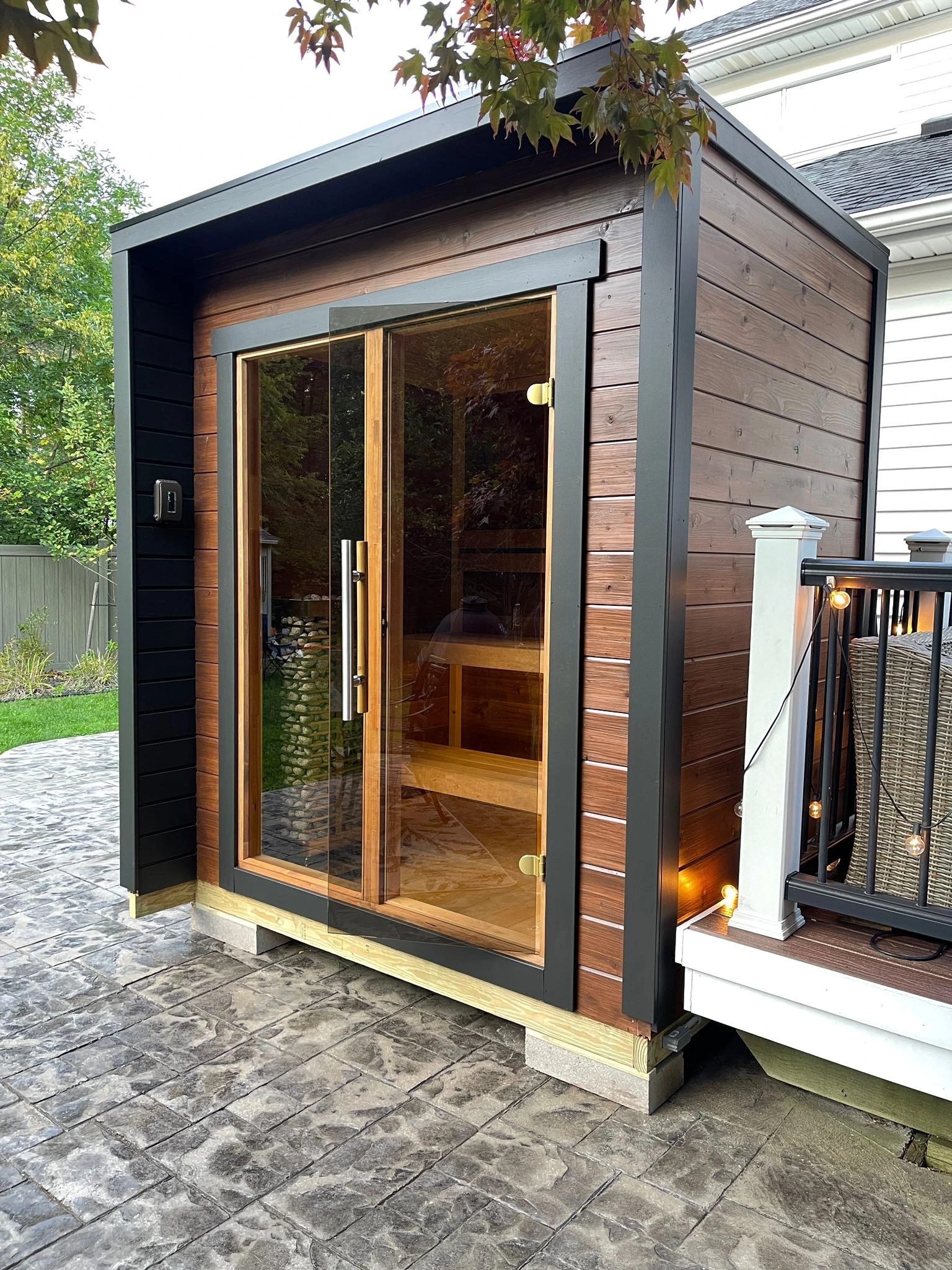

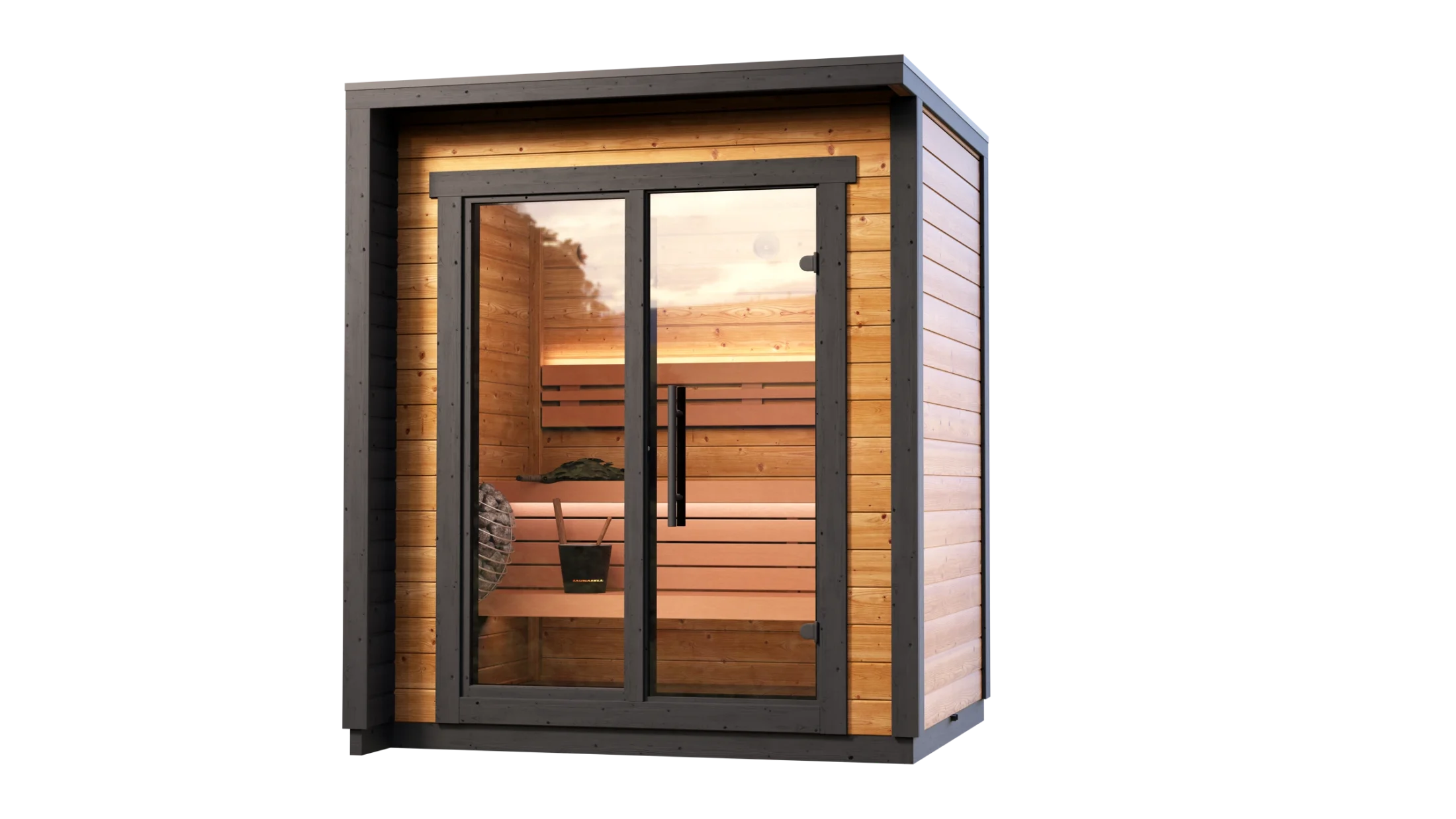

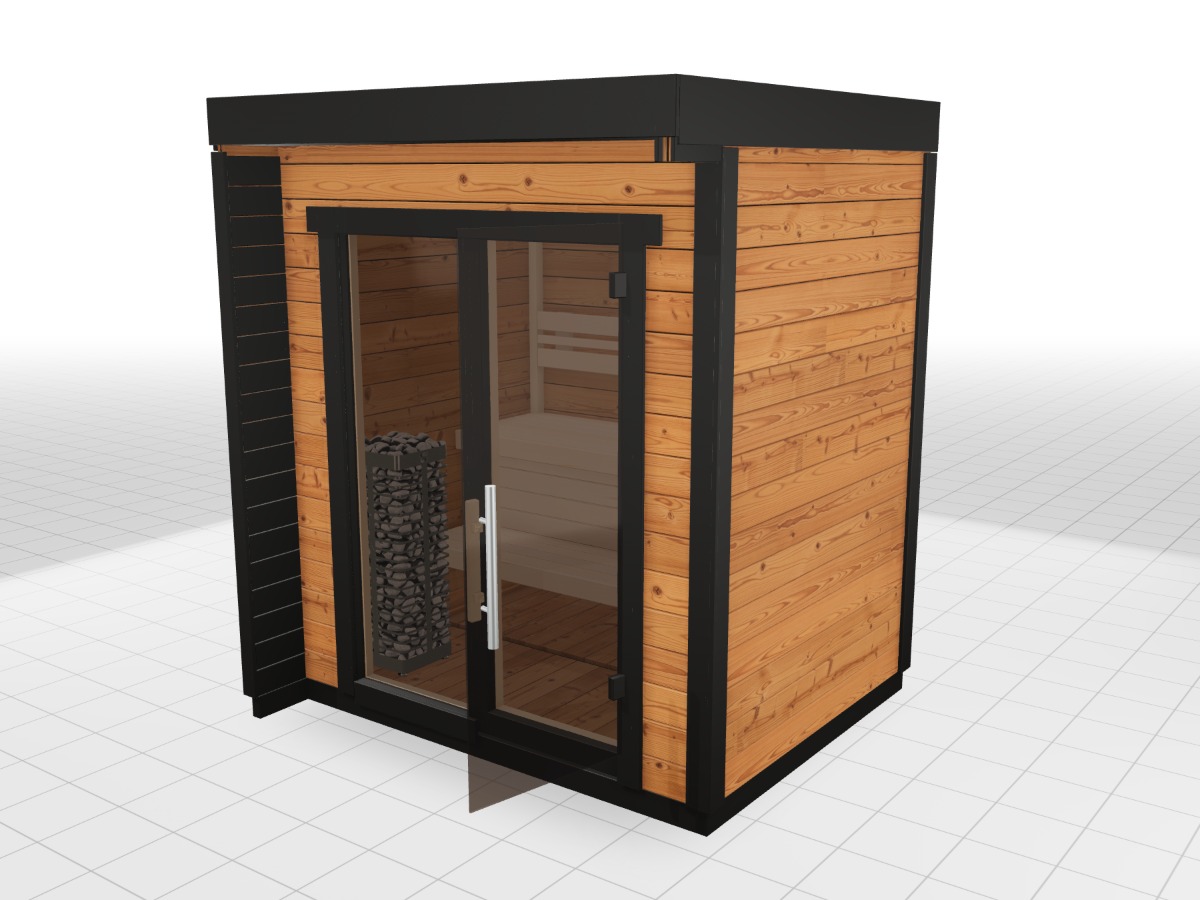

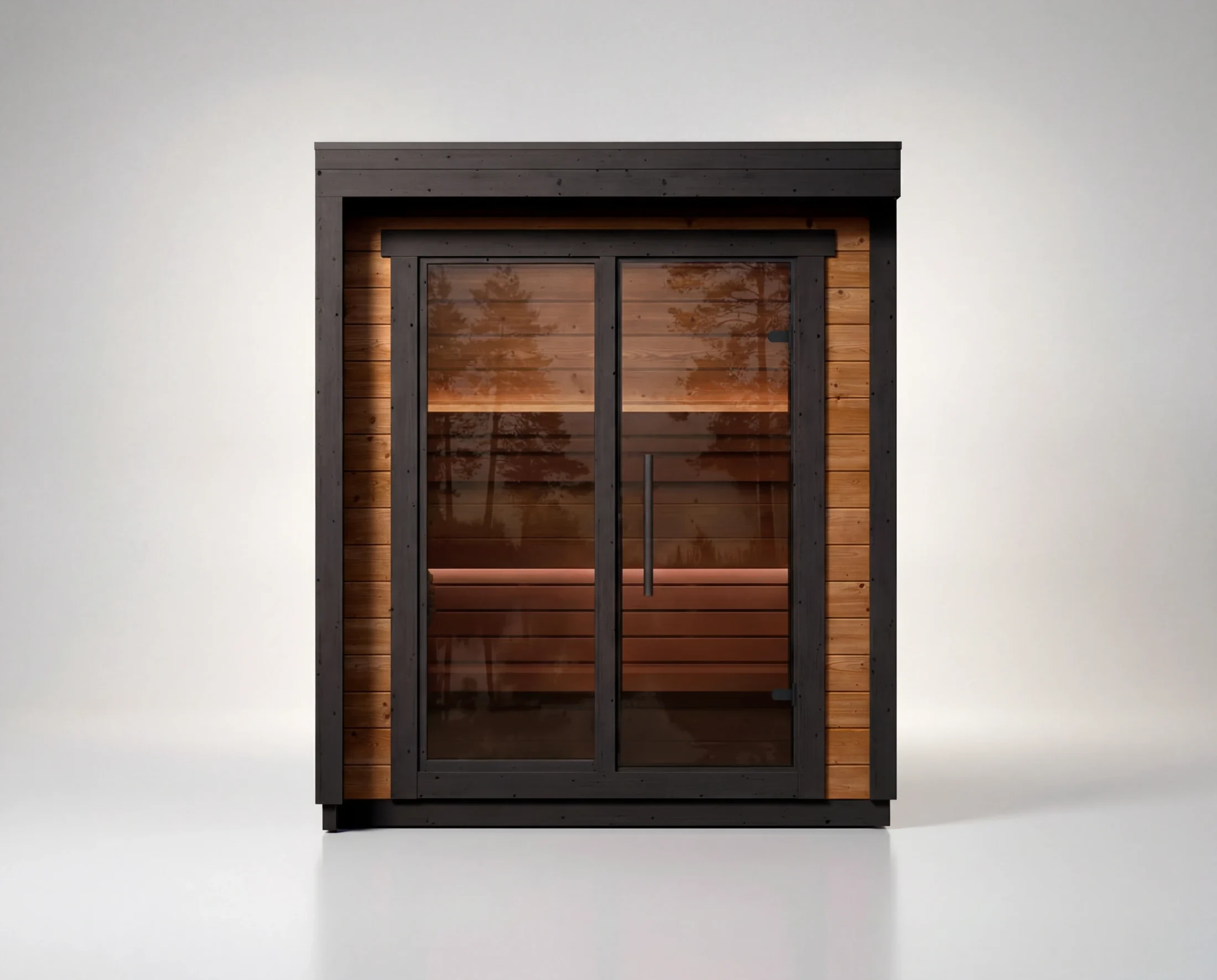

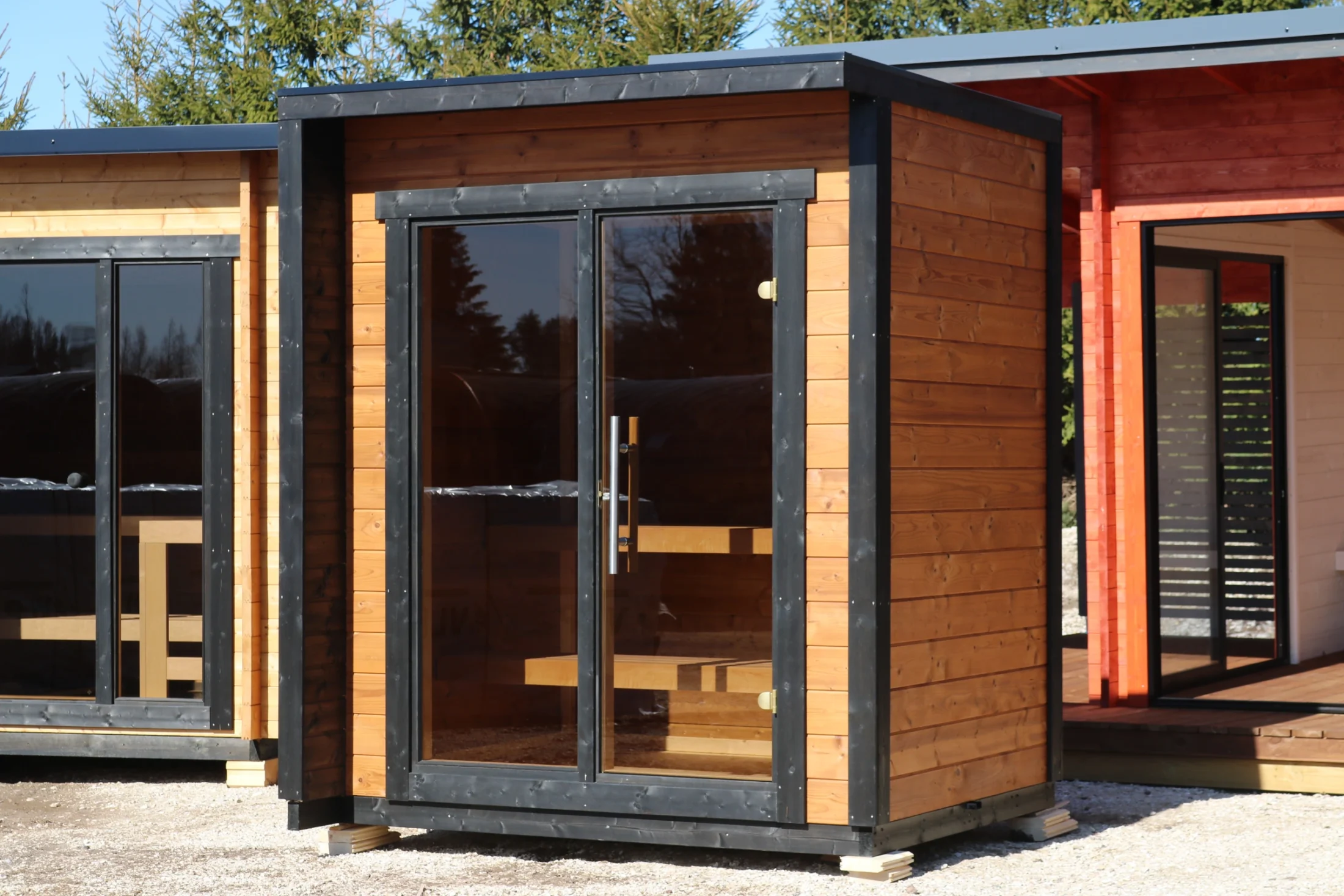

Your sauna does not have to take over the garden. Patio XXS gives you a full-width upper bench, a lower foot bench and a glazed front in a cabin about 80 inches wide by 74 inches deep. Leil rates it for up to three people. For a quieter evening with one or two, there is room to settle in without planning a larger building around it.

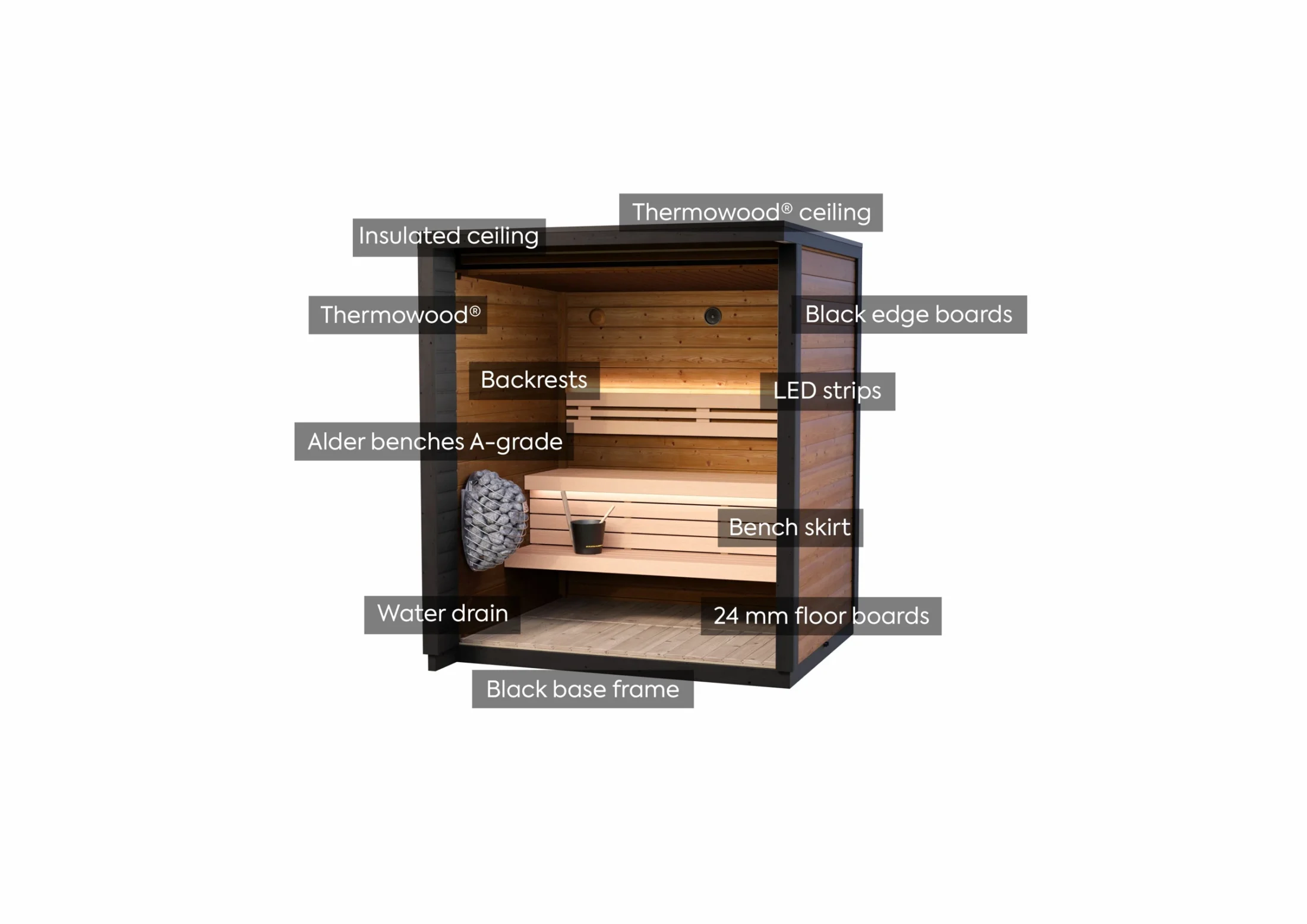

The practical appeal is in the construction: 1.6-inch solid Thermowood walls, two-level alder seating, a ceiling with 1.2-inch PIR insulation, and an EPDM roof with metal edge covers. This is a one-room sauna kit; choose it for the compact footprint rather than a changing room or covered terrace.
Measure the space before you choose.
| Capacity | Up to 3 people; one sauna room |
|---|---|
| Exterior, width × depth × height | 80.3 × 73.6 × 94.9 inches |
| Interior, width × depth × nominal height | 75.6 × 59.1 × 79.9 inches |
| Interior ceiling | Slopes from about 81.2 inches at the front to 78.5 inches at the rear; use the installation manual for heater clearances |
| Upper bench | About 23.6 inches deep and 34.1 inches above the floor |
| Foot bench | About 16.1 inches above the floor |
| Room volume | About 206 cubic feet before heater-sizing adjustments |
| Cabin weight | Approximately 1,433 lb |
| Made in | Estonia |
The imperial drawing rounds several dimensions to whole inches. Keep space for door movement, maintenance, ventilation and heater clearances beyond the cabin footprint. Confirm packed dimensions and unloading equipment with us before scheduling delivery.
What arrives with the kit?
Included cabin parts
- Solid Thermowood wall components and black exterior mouldings
- Roof boards, EPDM roof covering and metal edge covers
- Thermally treated pine ceiling panelling with PIR insulation
- Spruce floor boards and a metal floor gutter for wastewater
- Bronze tempered-glass door and a timber-framed, double-glazed bronze window

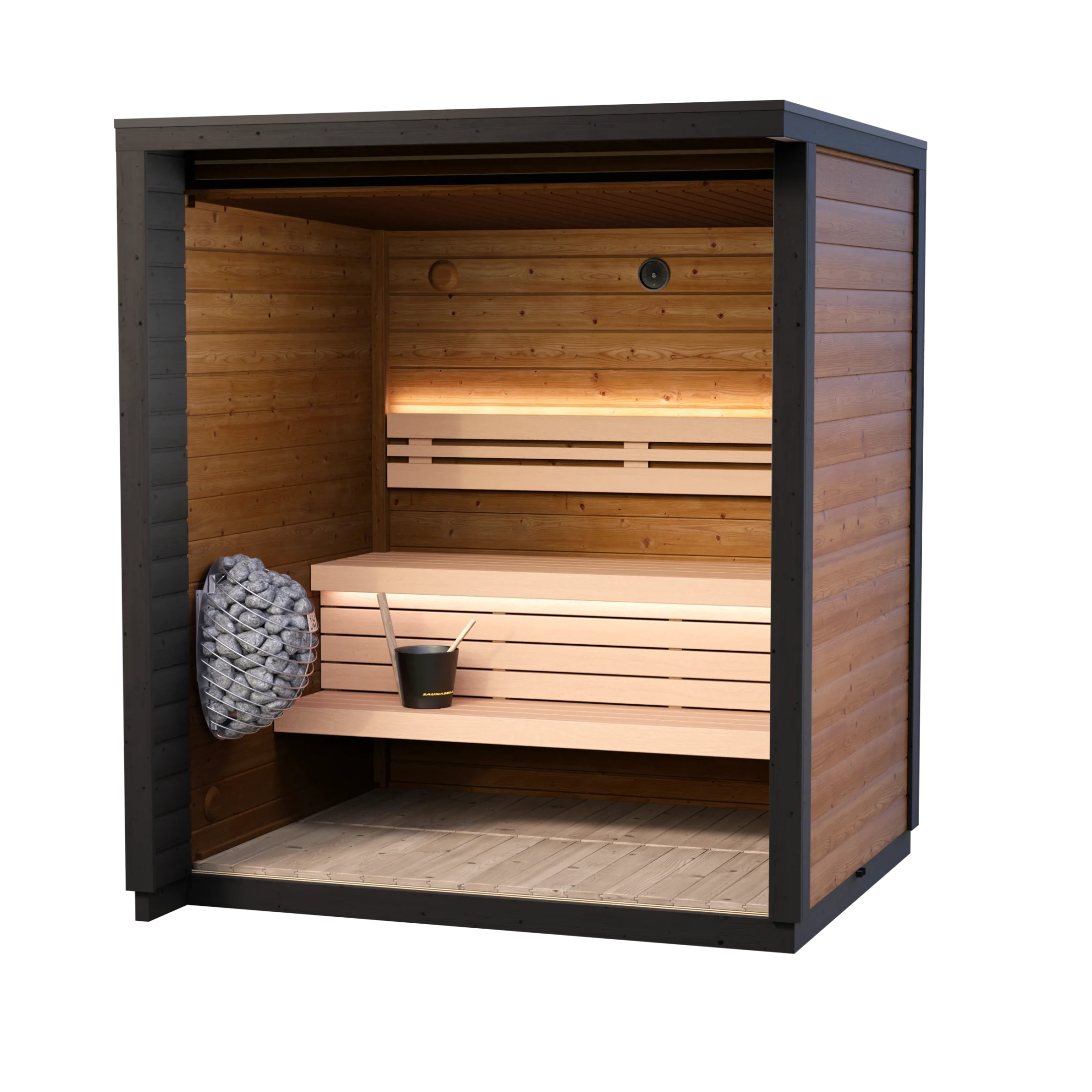

- Two-level alder benches, bench skirt and backrests
Plan separately
- Heater, any required controller, sauna stones and heater-specific safety parts
- Optional interior LED lighting and exterior spot lights
- Foundation, unloading, placement, assembly and electrical work
- Wood treatments, site drainage and any required permits
The base price is for the sauna kit. Photos and renderings may show optional heaters, lights, buckets, finishes and landscaping.

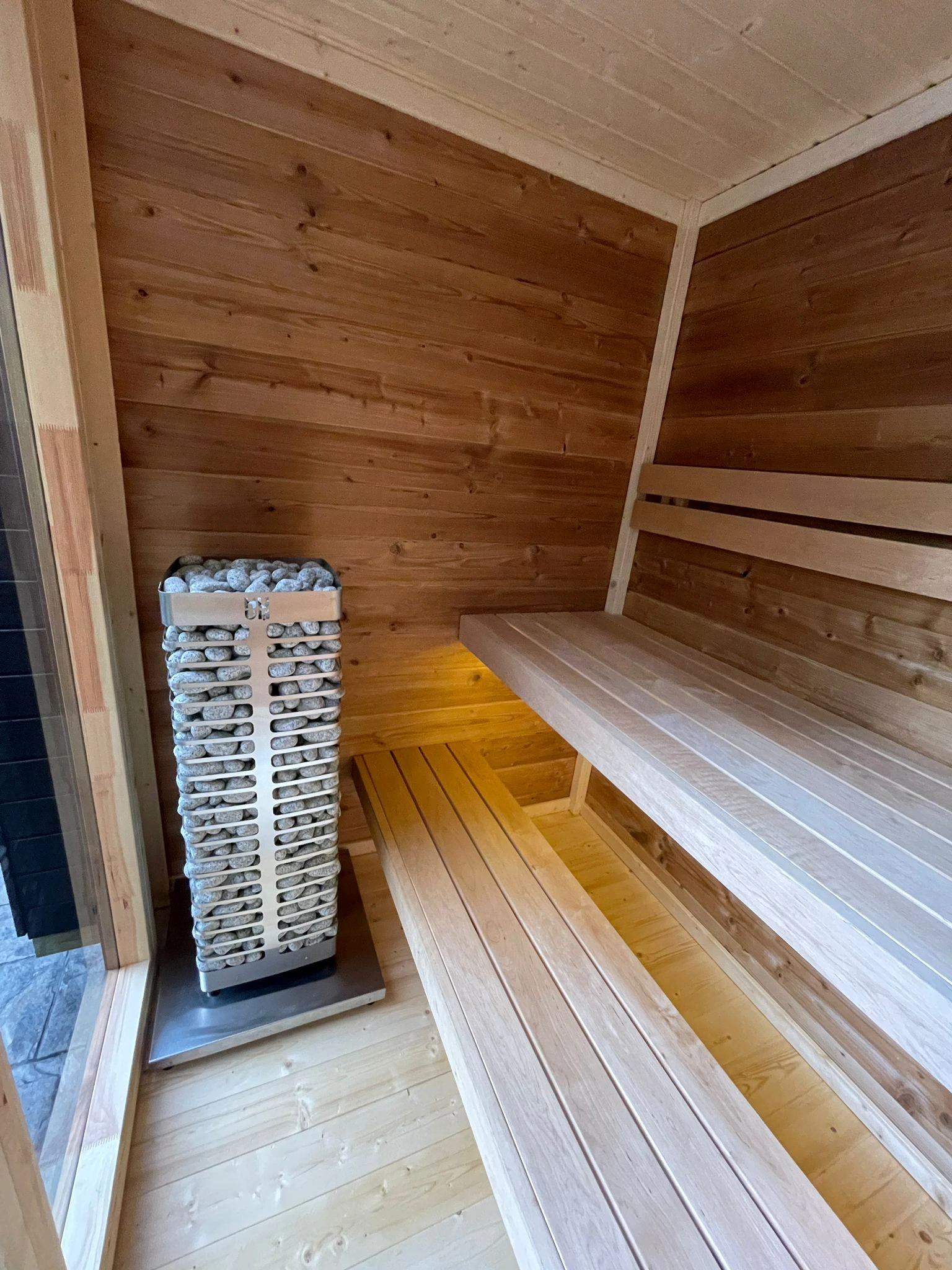

Heater options to review with the layout.
Leil offers electric or wood-burning heat, but its Patio XXS material does not approve a specific heater model. These are independently screened candidates, not confirmed Patio XXS packages. The cabin kit includes no heater. Check the complete placement against the XXS drawing and current heater manual before ordering.
| Candidate | Why it is on the list | What still needs checking |
|---|---|---|
| HUUM DROP 9, 240 V | Wall-mounted, 9 kW. HUUM lists 283 to 460 cubic feet at 240 V, which spans our approximate 297 cubic-foot glass-adjusted screen and 392 cubic-foot conservative solid-timber stress test. The current U.S. package uses a 50 A circuit and 8 AWG cable. | Mounting wall support, heater position, 5.91-inch front and side clearances, ceiling clearance, sensor location, ventilation and the remaining usable aisle. HUUM lists lower output and a 212 to 354 cubic-foot range at 208 V, so that version does not cover the full conservative screen. |
| HUUM HIVE Mini 9, 240 V | Floor-standing, 9 kW. HUUM lists 283 to 460 cubic feet at 240 V, spanning the same volume screens. | The body is 18.1 inches across, with 3.54-inch clearances and a 77-inch minimum ceiling. The XXS drawing shows a sloped 78.5 to 81.2-inch ceiling and a narrow aisle; confirm the exact heater position, ceiling slope, safety rail and walking space. Controller and 330 lb of stones are separate. |
| Wood-burning configuration | Leil lists wood-fired heat as a Patio XXS option. | Leil does not name an approved stove in the XXS material we reviewed. Stove footprint, wall and floor protection, chimney route through the roof, flue clearances, ventilation and local approval all need a model-specific review. |
Other dealers also list DROP 6, DROP 7 and HIVE Mini 11. DROP 6 passes HUUM’s glass-only calculation but not our conservative timber stress test; DROP 7 falls about 3 cubic feet short of that stress test; HIVE Mini 11 at 240 V starts above the glass-adjusted volume. A 208 V HIVE Mini 11 appears volume-plausible in HUUM’s separate table, but it is not a current selection on our U.S. heater page. Room-volume math alone does not establish fit.
See current HUUM DROP sizes and packages · Explore in 3D
See current HUUM HIVE Mini sizes and packages · Explore in 3D
The 3D planners show the heater in a configurable room; they are not a 3D model or approval of the Patio XXS. We do not have an exact XXS 3D model from Leil, so use the downloadable XXS drawing for cabin dimensions. Do not order a heater until its position and complete system are checked. Book a Ben to review the layout and available electrical service with us. Have a licensed electrician confirm the circuit and installation.
Light the bench, the doorway, or both.
Interior lighting is optional: choose a dimmable LED strip beneath the bench, above the backrest, or in both positions. The LED set includes its cable, transformer, dimmer and installation box. The exterior option is a two-spot set beneath the roof. Select the lighting below the product price; the total updates with your choices.
Before the crate arrives.
Foundation, assembly and ventilation
Prepare a level, load-bearing base and plan the route from curbside to its final position. This listing is a kit for on-site assembly. Follow the supplied installation manual and the selected heater’s current US instructions together. Confirm intake, exhaust, sensor placement and local requirements before cutting openings. The floor gutter also needs an appropriate route for water to leave the sauna.
Protect the wood from the start
Leil requires a suitable protective coating on exterior wood immediately after installation, followed by another application after about two months. Later recoating depends on the product and exposure. Treat interior surfaces with sauna-suitable products before first use, maintain them as directed, and oil benches and footrests once or twice a year. Follow the manual and the treatment manufacturer’s instructions.
Curbside freight and receiving
Standard curbside freight is $1,190 per sauna to the contiguous United States, added at checkout. Contact us for other destinations or special-access requirements. Unloading equipment, labor, moving the cabin into the yard and assembly are arranged separately. Let us know about narrow roads, steep drives, delivery restrictions or special equipment before dispatch.
Inspect the crate and contents before signing. Photograph packaging and visible damage, record damage or shortages on the delivery receipt, and report concealed freight damage within 48 hours. Retain damaged goods and original packaging for 30 days pending instructions. Delivery dates remain estimates until confirmed for your order.
Manufacturer warranty
The Patio XXS manual states a 24-month warranty from delivery for material and production defects, subject to its installation, use, storage and maintenance conditions. Natural wood changes, ordinary wear, incorrect installation or use, weather damage and unauthorized alterations are excluded. Notify us promptly about defects; the manual specifies seven days. Freight damage has the separate receiving deadlines above. Read the complete terms in the manual before installation.
Drawings, assembly and care.
These are the current manufacturer files supplied for this model, checked against Leil’s partner folder. Keep the installation manual with your project records.
- Leil Patio XXS imperial dimension drawing (PDF)
- Leil Patio XXS installation, maintenance and warranty manual (PDF)
- Leil Patio collection catalogue (PDF)
We have seen Leil’s work in Estonia.
In September 2026, both Bens visited Leil’s factory and showroom in Estonia, met with the team and saw the range in person. We came home impressed by the thoughtful layouts and the choice across the collection. That first-hand relationship informs the practical help we offer with heater selection, wood treatment, delivery access and site preparation.
Explore our Leil factory photographs and 360° views. The Patio shown in the factory tour is the larger Patio S, not the XXS. This page’s XXS photographs, exact drawing and dimensions are the references for planning this compact model.
Need a different footprint? Compare the Celto M or the Patio S with corner seating.
Let’s make sure it fits.
Bring your available width and depth, a few photos of the site and your ZIP code. Book a Ben for a free 30-minute video call, or call or text (844) 565-1113. We will help you work through the cabin, heater and delivery together.
Patio XXS FAQs
Are the Patio XXS walls insulated?
The walls are 1.6-inch solid Thermowood, with no separate wall insulation layer. The ceiling has 1.2-inch PIR insulation.
Which heater options should I consider?
Start with the HUUM DROP 9 at 240 V or HIVE Mini 9 at 240 V as volume-screened candidates; both still need a placement and clearance review. Leil also lists wood-burning heat, but the exact stove and chimney layout are not yet confirmed. See the heater comparison above. Heaters, required controls and stones are separate from the cabin kit.
Does the factory tour show the Patio XXS?
Both Bens visited Leil’s factory and showroom in Estonia. The Patio in our factory 360° tour is the larger Patio S, not the XXS. The XXS photos and downloadable drawing on this page are the references for this model.
Is lighting included?
No. Optional dimmable LED strips are available beneath the bench, behind the backrest, or in both positions. A separate two-spot set is available beneath the roof.
What should I prepare before delivery?
Prepare a level, load-bearing foundation and a clear route for curbside unloading. Unloading equipment, labor, moving the cabin into place, assembly and electrical work are arranged separately. Leil also requires protective treatment for the exterior wood after installation; follow the supplied manual.
