Huum Flange Cs
Huum Flange Cs
Huum Flange Cs
Click to enlarge
Best Price and Service Guarantee

Sauna Marketplace offers legendary customer service and support. Odds are you landed here from a referral — because we don’t advertise.

That doesn’t mean you should have to pay more. We always honor the lowest prices allowed by our manufacturers. If you find a lower advertised price from an authorized dealer, send us a screenshot and we’ll match it.

We want you to feel great about your purchase for decades. That’s why we also offer free shipping on sauna accessories for life with the purchase of any sauna or sauna heater on Sauna Marketplace.

Shop Saunas | Shop Sauna Heaters

Specs
Assembled Dimensions16.7″ (424mm)
Product Weight3 lbs (1.36kg)
ModelFlange CS
Model NumberFLANGE CS
SKU / Part NumberH3004032
MaterialsStainless Steel
Included ComponentsEmbedding flange, Fastening screws (4), Installation manual, 5-Year limited warranty
Installation ManualInstallation Resources
Residential WarrantyLimited 5-Year Warranty
Part numberH3004032
BB SKU534-SLIM-EFLANGE
UPC4745090279276
Opening required42.4 x 42.4 cm square
Assembled size16.7 in (424 mm)
MaterialStainless steel
Weight3 lb
Not for use withCLIFF Mini and STEEL Mini heaters
Includes

What Is Included

This listing includes the product and configuration selected above. The current exact-model source does not separately itemize additional box contents, so no extra hardware, controls, stones, venting, or accessories are implied.

Required and related products are shown in How It Fits when an exact source relationship exists.

How It Fits

How This Product Fits the System

What it is used for

A heater-system accessory for the application named in this listing. Match the exact model, part number, dimensions, and installation instructions; its presence in the same brand family is not proof of fit.

What to plan

  • Start with the exact heater, chimney, or control model—not brand alone—then confirm the accessory part number and configuration.
  • A vendor suggestion is optional merchandising guidance; it is not the same as a required component or an exact fit approval.
  • Replacement and installation parts must follow the current system manual, clearances, and local code.

Products that use this item

These products name this item as required, optional, or part of their heater package.

Verified model-specific facts are kept in Technical Specifications, while current manuals and support files are kept in Manuals & Documents. If an exact source does not resolve a value or relationship, this page leaves it open instead of borrowing from a neighboring model.

Attachments
Gallery
Huum Flange Cs
Huum Flange Cs
Huum Flange Cs
Click to enlarge

    HUUM Flange CS | CLIFF & STEEL Embedding Flange

    Stainless steel embedding flange for HUUM CLIFF and STEEL heaters, covering the cut wooden edges when the heater is set partly into the sauna platform. Fits a 16.7 x 16.7 in opening. Not for the Mini versions of either range.

    Build Your Quote:

    $331.00

    Shipping

    Free Shipping On Accessories
    Valid for orders over $200, or for anyone who has ever purchased a sauna or heater on Sauna Marketplace.

    Shop Saunas | Shop Sauna Heaters

    Share your selected heater size and add-ons. Prices and availability are confirmed when the link is opened.

    Zero Interest Payments:

    Buy Now, Pay Later with premium financing packages only available on Sauna Marketplace.

    Pay with HSA/FSA:

    We teamed up with FLEX to make HSA/FSA payments easier than ever.

    HUUM

    Built for these

    What’s included

    • Embedding flange
    • 4 fastening screws
    • Installation manual

    What it does

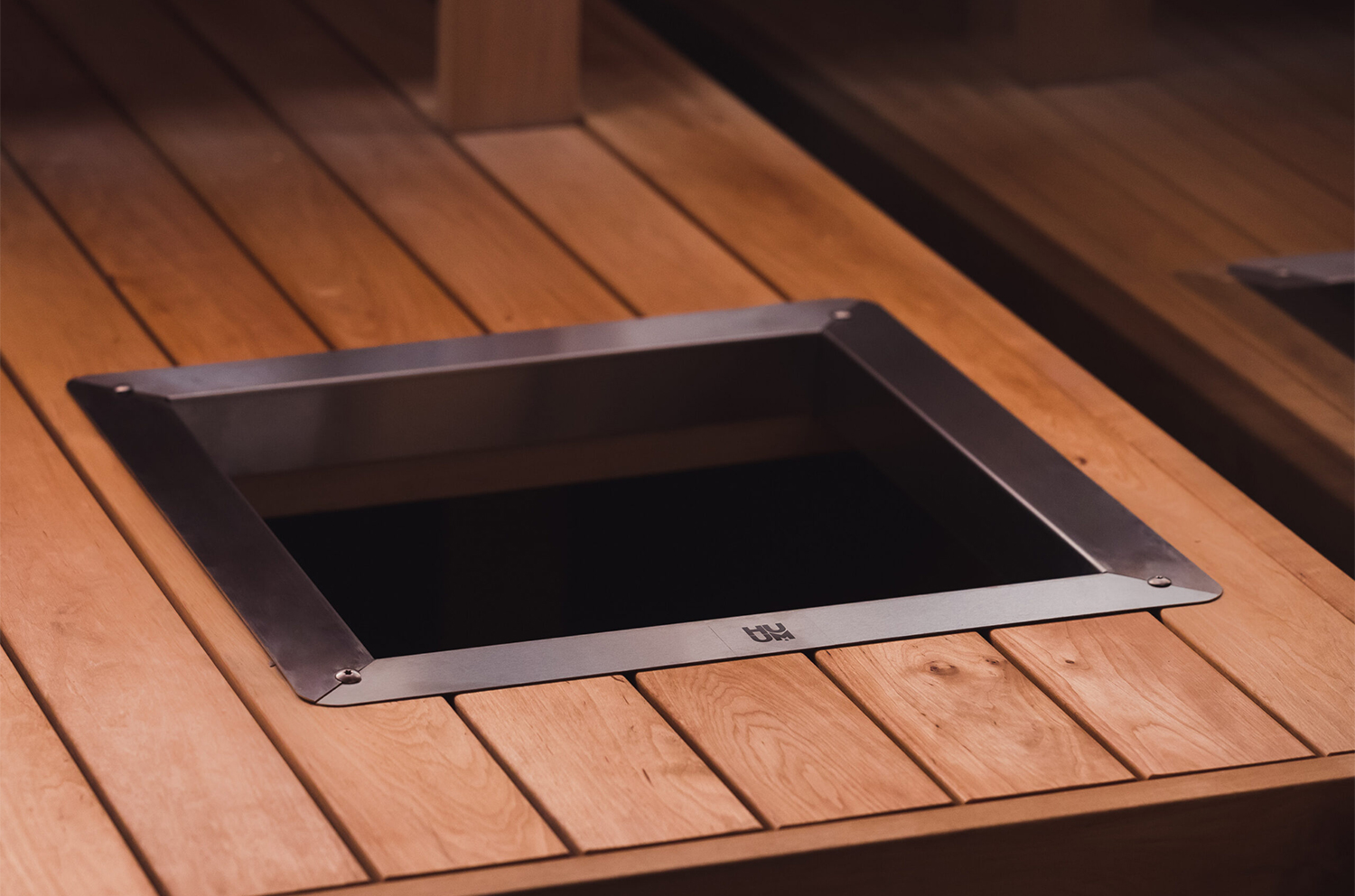

    The embedding flange is made of stainless steel and covers the uneven wooden edges around the heater, creating a clean and smooth finish. The embedding flange is useful if you plan to install the sauna heater partially inside the sauna platform. The HUUM Flange CS was designed for use with installation of the Cliff or Steel Series sauna heaters.

    Which heaters it fits

    HUUM specifies the Flange CS for the Cliff series and the Steel series, in both cases “except mini”. The CLIFF Mini and the STEEL Mini are outside this part’s fit.

    • Covers uneven wooden edges around the heater
    • Creates a clean, smooth finish
    • Protects against heat radiation
    • Stainless steel construction

    What the manual says

    • “Prepare a square opening with a size of 16.7 x 16.7 in for the embedding flange.”
    • “Place the slats around the heater so that they fit tightly into the opening.”
    • “Make sure that the sides of slats fit together and fasten the corners to the floor using screws.”

    The flange arrives as four slats plus the four fastening screws used to fix the corners down.

    Specifications

    Model Flange CS
    Part number H3004032
    UPC 4745090279276
    Opening required 16.7 x 16.7 in square (16.7 in)
    Material Stainless steel
    Weight 3 lb

    Common questions

    Do I need an embedding flange?

    An embedding flange is only needed when the sauna heater is being set partly down inside the sauna platform rather than standing free on the floor. HUUM's Flange CS covers the uneven wooden edges left around the heater by that cut-out, creating a clean, smooth finish. A CLIFF or STEEL heater standing openly on the sauna floor does not need one.

    Does the HUUM Flange CS fit the CLIFF Mini or the STEEL Mini?

    The HUUM Flange CS does not fit the Mini versions of either range. HUUM lists it as working with “Cliff series sauna heaters (except mini)” and “Steel series sauna heaters (except mini)”.

    What size opening do I cut for the HUUM Flange CS?

    A square opening of 16.7 x 16.7 in is required for the HUUM Flange CS. The manual reads: “Prepare a square opening with a size of 16.7 x 16.7 in for the embedding flange. Place the slats around the heater so that they fit tightly into the opening.” The four corners are then fastened down to the floor with the screws supplied.

    Often bought with the HUUM CLIFF & CLIFF Mini Electric Sauna Heater | 3.5 to 10.5 kW
