Harvia WHP1000500 Sauna Chimney Package for Flat Roofs & Barrel Saunas, Stainless or Black

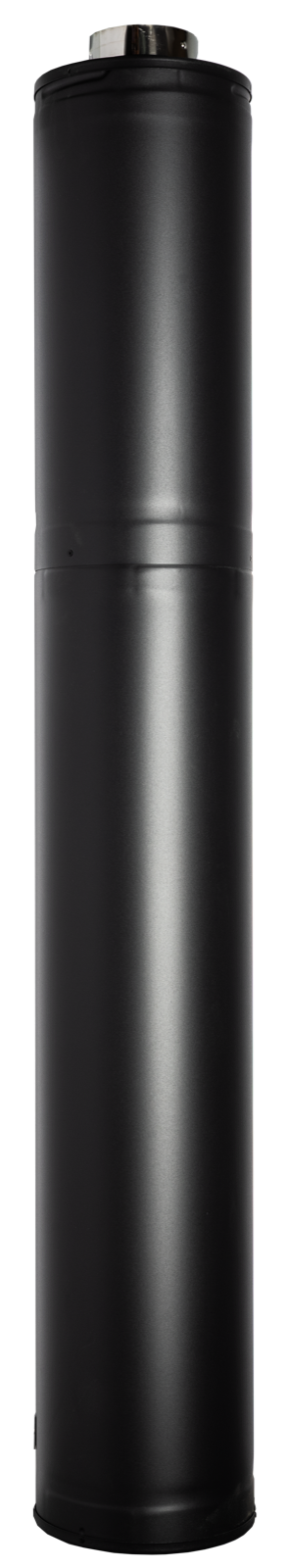

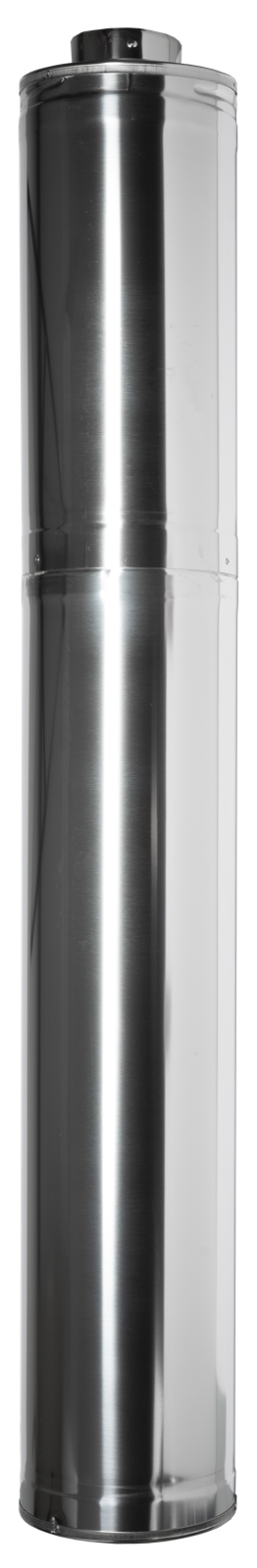

The Harvia WHP1000500-PKG is a complete steel chimney package for saunas with a flat roof — including barrel saunas fitted with a flat roof plate. It combines the WHP1000500 insulated chimney with the WHP-ASSYM symmetric roof accessory kit, so everything needed to take a Harvia wood-burning stove through the roof arrives in one package. The black version (WHP1000500M-PKG) pairs the black chimney with the black WHP-ASSYMM kit.

Thanks to the grooved joint mechanism, the chimney resists movement caused by temperature changes, and it can be installed indoors or outdoors.

Features

• Complete flat-roof chimney package: chimney plus symmetric roof accessory kit
• Designed for flat roofs and barrel saunas
• Grooved joint mechanism prevents movement from temperature changes
• 115 mm smoke path with insulated outer casing
• Stainless steel or black powder-coated finish
• Indoor and outdoor installation
• Designed, engineered, and made in Finland
• Limited 2-year warranty (consumer use); limited 1-year warranty (commercial use)

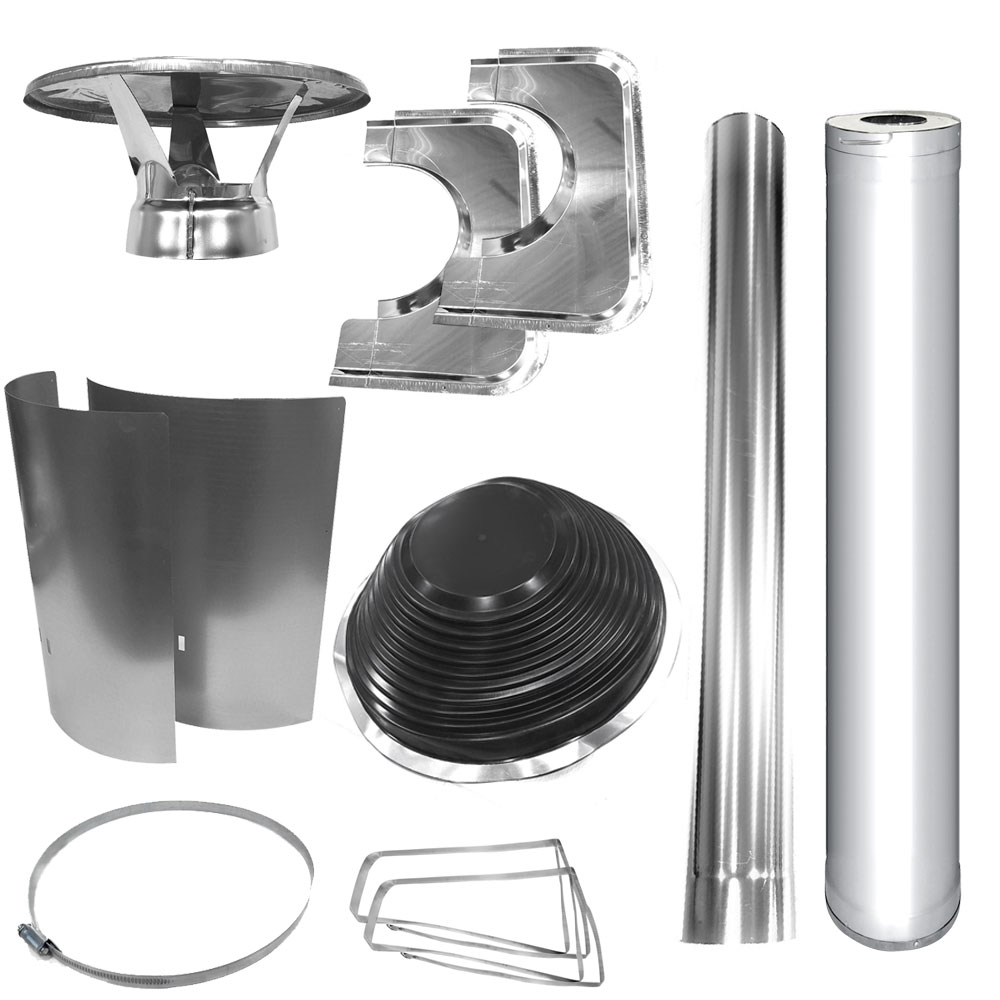

What’s Included

• Harvia WHP1000500 insulated chimney (WHP1000500M in black package)
• Rain cap
• Symmetric rain flange
• Rain flange clamp
• Smoke pipe
• Lead-through flange
• Lead-through insulation and protector

Specifications

Compatibility

Works with Harvia wood-burning sauna stoves that use the 115 mm Harvia smoke path (all models except the Harvia 50). For pitched roofs, use the Harvia WHP1500 chimney kit with the tilted roof accessory kit instead.

Planning note: Harvia’s WHP steel chimney system installs vertically only and is designed for wood-burning sauna stoves in standalone outdoor sauna buildings. Keep at least 4″ (100 mm) of clearance between the insulated outer casing and any combustible material, and confirm your installation with your local building authority before you build.

Good to Know

Does this package fit a barrel sauna?

Yes. The symmetric rain flange included in the package is designed for flat lead-throughs, which is how barrel saunas with a flat roof plate are vented. It is the package Harvia specifies for barrel and flat-roof sauna buildings.

What stove does it connect to?

Any Harvia wood-burning sauna stove with the standard 115 mm (4.5″) smoke outlet, except the Harvia 50. The included smoke pipe connects the stove to the insulated chimney.

Stainless or black — is there a functional difference?

No, only the finish differs. WHP1000500-PKG is stainless; WHP1000500M-PKG is black powder-coated steel to match black stoves and roof lines.

Designing a Harvia Chimney System

Every part on this page belongs to Harvia’s modular WHP steel chimney system: a 115 mm (4.5″) smoke path inside a 220 mm (8.6″) insulated casing, assembled with slot-and-lock joints. Here is how a complete system comes together:

1. Start with the chimney. For pitched roofs, the WHP1500 kit (1500 mm chimney plus rain cap, tilted rain flange, smoke pipe, and ceiling lead-through set) is the core of the system. For flat roofs and barrel saunas, the WHP1000500 package bundles the chimney with the symmetric roof kit.
2. Connect the stove. Bridge the stove collar to the insulated chimney with 115 mm WZ smoke pipes (20 cm, 50 cm, or 1 m). Add the WZ115030SP damper plate at the stove to control draft while firing, a WZ115120 reducer where pipe sections step down, or the WZ115155 adapter if you are transitioning to 6″ US Class A pipe.
3. Reach your height. Add WHP500 (500 mm) or WHP1000 (1000 mm) extensions. Stay within Harvia’s limits: 5.0 m (16.4 ft) total chimney height, no more than 2.0 m (6.5 ft) above the last support, lateral supports every 3.0 m (9.8 ft).
4. Go through the roof. Choose the roof kit that matches your roofline — WHP-AS for tilted/pitched roofs, WHP-ASSYM for flat roofs and barrels. Replacement rain collars: WHM22 (tilted) and WHM24 (symmetric). Add a snow barrier above the chimney where sliding snow can load the flashing.
5. Seal and control. The WHM25 vapor barrier restores the vapor-tight layer where the chimney passes the sauna ceiling; the WHP270 insulated damper closes the flue after the fire is fully out so the sauna holds its heat.
6. Finish the stove side. Stone-filled covers — WL300 for Legend stoves, WL300PC for Cilindro — absorb radiant heat from the smoke pipe and significantly reduce its required safety distances.

Key clearances and rules: vertical installation only; 100 mm (4″) from the insulated casing to combustibles; 500 mm (stainless) or 375 mm (black) from non-insulated smoke pipe unless shielded; designed for wood-burning stoves in standalone outdoor sauna buildings. Confirm your plan with your local building authority — and if you would like help speccing the system, talk to us; we design these daily.
