SaunaLife S2 Tub Installation Manual
Exact-model manufacturer document. Use the separate product-specific warranty for current warranty terms.
Choose the setup you want to live with

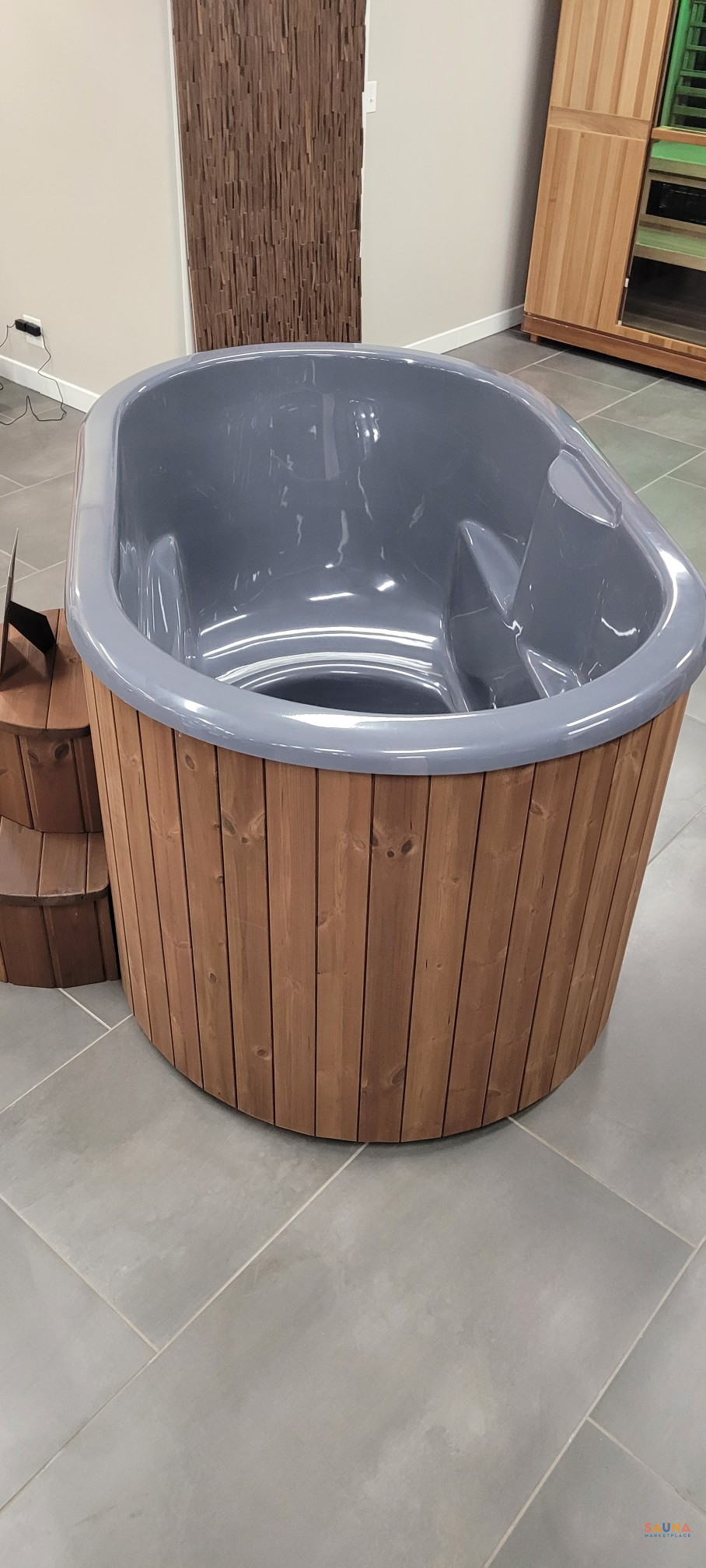

The S2 arrives assembled, with a contoured fiberglass insert, thermally modified wood surround, and matching steps. It holds 200 gal and is sized for up to two people. Choose a tub-only model if you already have a compatible cooling plan, or a C package for the tub with its matched chiller/heater.
What the model codes mean
- S2N: natural-finish tub, without a chiller.
- S2B: black-finish tub, without a chiller.

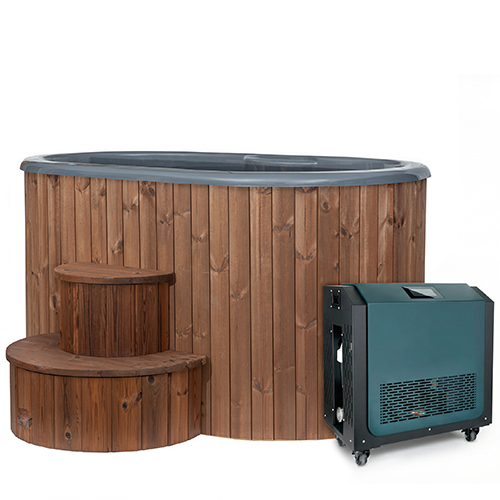

- S2NC Package: natural tub with the AP-1 chiller/heater.
- S2BC Package: black tub with the AP-1 chiller/heater.
- Insulated cover is an optional selection. The NC and BC packages already include their matched chiller/heater; do not add a second chiller to those packages.
Cooling is a whole-system decision
The AP-1 package provides a 37–107°F adjustable water-temperature range, with 3.05 kW cooling capacity and 4.04 kW heating capacity. The unit combines circulation, filtration, and ozone with Wi-Fi controls. Its temperature range is not a promise about cooling speed in every climate; tub loading and outdoor conditions affect performance.
Dimensions and package specifications
| Bathers | up to two people |
|---|---|
| Tub capacity | 200 gal |
| Tub exterior | 74.4 x 46 x 41 in |
| Tub interior | 66.5 x 39.1 x 36 in |
| Chiller in C packages | AP-1 |
| Water temperature range, C package | 37–107°F |
| Chiller power supply | 110–120V / 60Hz with supplied GFCI power cord and plug |
| Chiller dimensions | 21.3 x 15.8 x 22.2 in |
| Chiller weight | 98 lb |
Plan the base, drainage, and winter care
Install the tub on a level, stable, reinforced base at least three inches above surrounding ground, as shown in the tub manual. Allow room for the steps, access to the drain, and the chiller’s required ventilation. The supporting surface must carry the tub, water, and bathers. Plan the fill and drain route before delivery.
The tub and chiller have separate maintenance instructions. Follow the exact chiller manual for electrical installation, ambient-temperature limits, priming, weather protection, and winterization. Drain and protect the system before freezing water can damage the plumbing. A household-voltage plug does not remove the need for a compliant grounded electrical installation.
Keep the everyday work manageable
Use the cover between sessions, remove visible debris, inspect the filter, and follow the manufacturer’s water-treatment schedule. Ozone and filtration do not replace water care or fresh-water changes.
Compare the footprint
Add the matching S2 insulated cover. If you want a smaller upright tub, compare the SaunaLife S1.
Call or text (844) 565-1113 with your layout, climate, and the way you want to use your plunge. We will help you check the fit before you order.
