Specs

Exterior Shortest Side (in)	64.25
Exterior Longest Side (in) Maximum Exterior Length of the longest side when assembled.	75
Exterior Height (in) Maximum exterior height from earth to roof peak	83
DIY Friendly DIY Friendly Saunas means a professional is not required for the build. Basic tools like a drill, hammer, and level are typically required. With Sauna Marketplace, you do not risk your warranty by assembling a sauna yourself. If you prefer a professional installation, please reach out to the Sauna Marketplace team so we can check for a trusted installer near you.	Yes *An electrician is still required for all electrical work!
Insulation	Yes – European Standard European Sauna Construction Standards consist of a thick, insulated wall assembly that maximizes the drying potential of interior and exterior cladding. The typical wall assembly consists of Exterior Cladding -> Air Gap -> Rain Barrier -> Studded Wall with Mineral Wool Insulation -> Foil Radiant Barrier with Taped Seams -> Air Gap -> Interior Cladding.
Made in	China
Warranty	5 , Limited Lifetime
Shipping Method	LTL Curbside Delivery w/ Lift Gate Service Our shipping partners will deliver your sauna curbside. They are not responsible for moving it into the garage or final location but you might get lucky. Please contact Sauna Marketplace to plan for a smooth delivery and installation.
Model	FD5 Trinity XL
Bench Length (in) Maximum bench length in inches.	71
Exterior Materials	Thermally Modified Aspen Thermally Modified Wood has been naturally altered at a cellular level using only heat and steam. This natural process is common in Europe, used to make the wood more durable, longer lasting, and stable. Thermo-Aspen is significantly darker than raw Aspen, closer to western red cedar.
People	4
Shipping Cost Please inquire if shipping outside the continental USA.	Free
Room Height at Heater (in) Interior Height at heater position in inches. In context of a heater, this is the minimum height required to instal. In context of a sauna, this allows you to find a heater that can be safely installed.	75

Attachments

Finnmark FD5 Trinity XL Manual

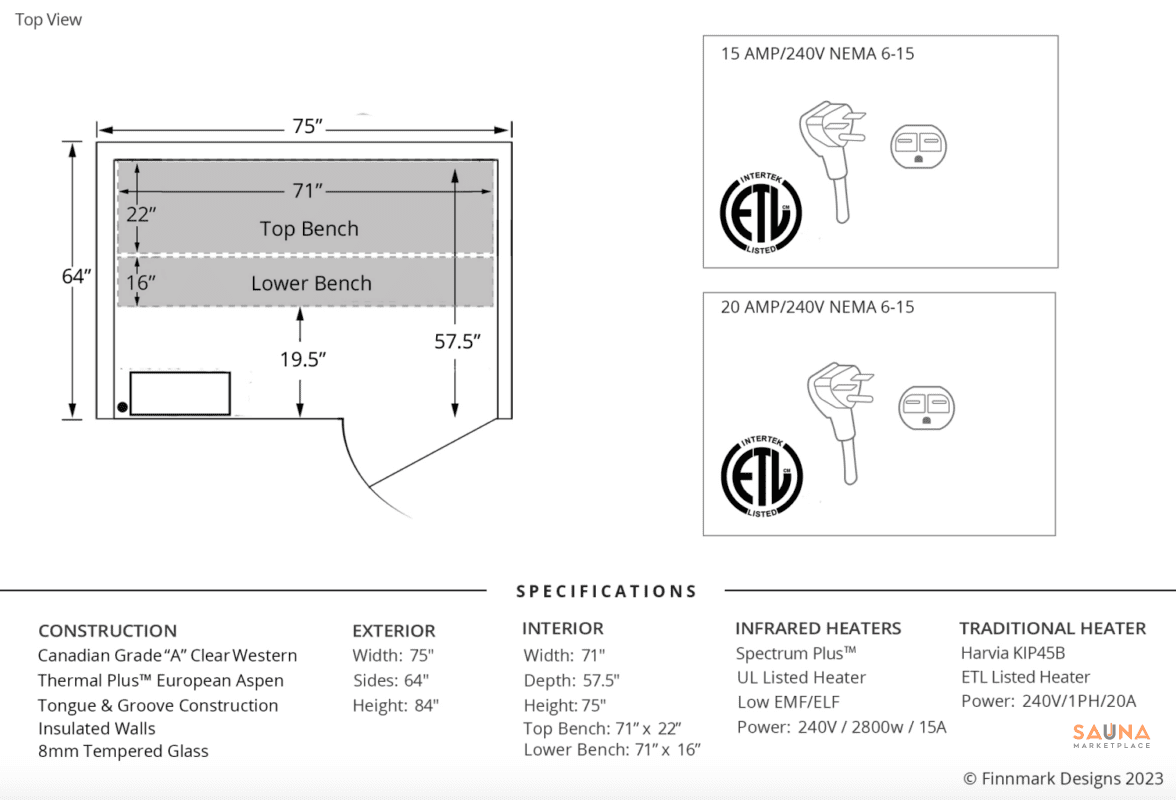

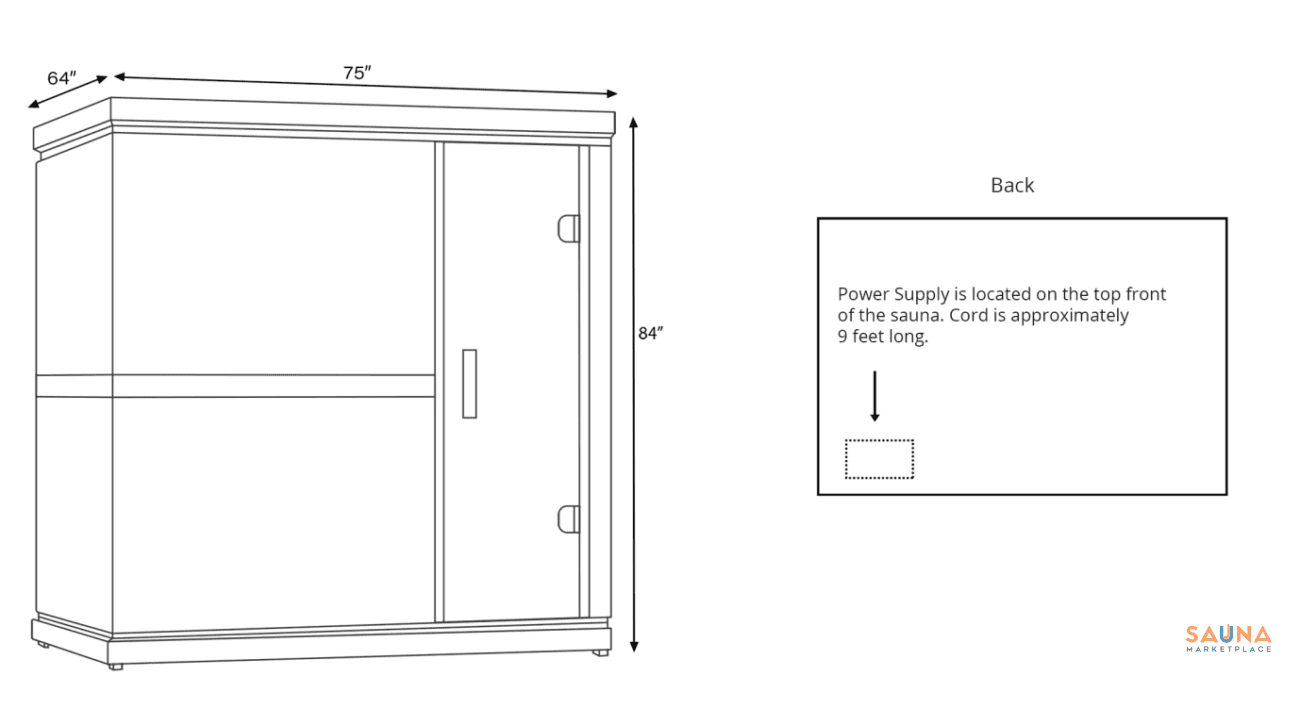

Detailed Drawings and Dimensions

Harvia KIP Finnish Sauna Heater Manual

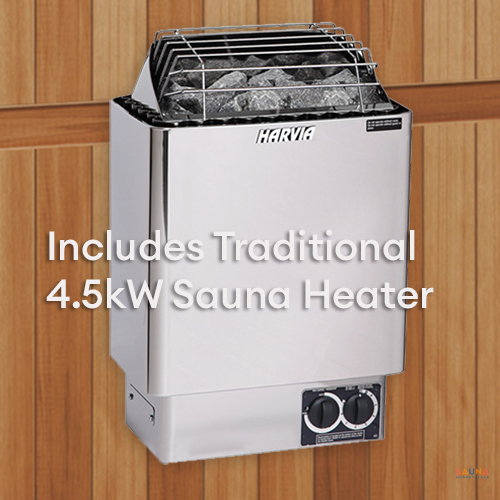

This sauna comes with a 4.5KW Harvia KIP with built in controls. It requires 240v, in addition to the infrared system's power. Please contact us with questions.

Video Attachments

Planning Session

We'd love the opportunity to answer your questions, learn about your sauna preferences, and make sure everything is considered for a flawless delivery. Book a planning session now.

Gallery

Click Image, Then Scroll! For the best experience, click on any image then swipe or use arrow keys to browse.

Best Price Guaranteed

At Sauna Marketplace, we always offer the best service, support, and expertise. But that doesn't mean you should pay more! Place your order knowing that if you find a better deal published from another authorized dealer, we'll refund the difference. Valid until your order leaves the warehouse.

Includes

Includes everything you need, with the exception of a bucket and ladle to pour water on the rocks!

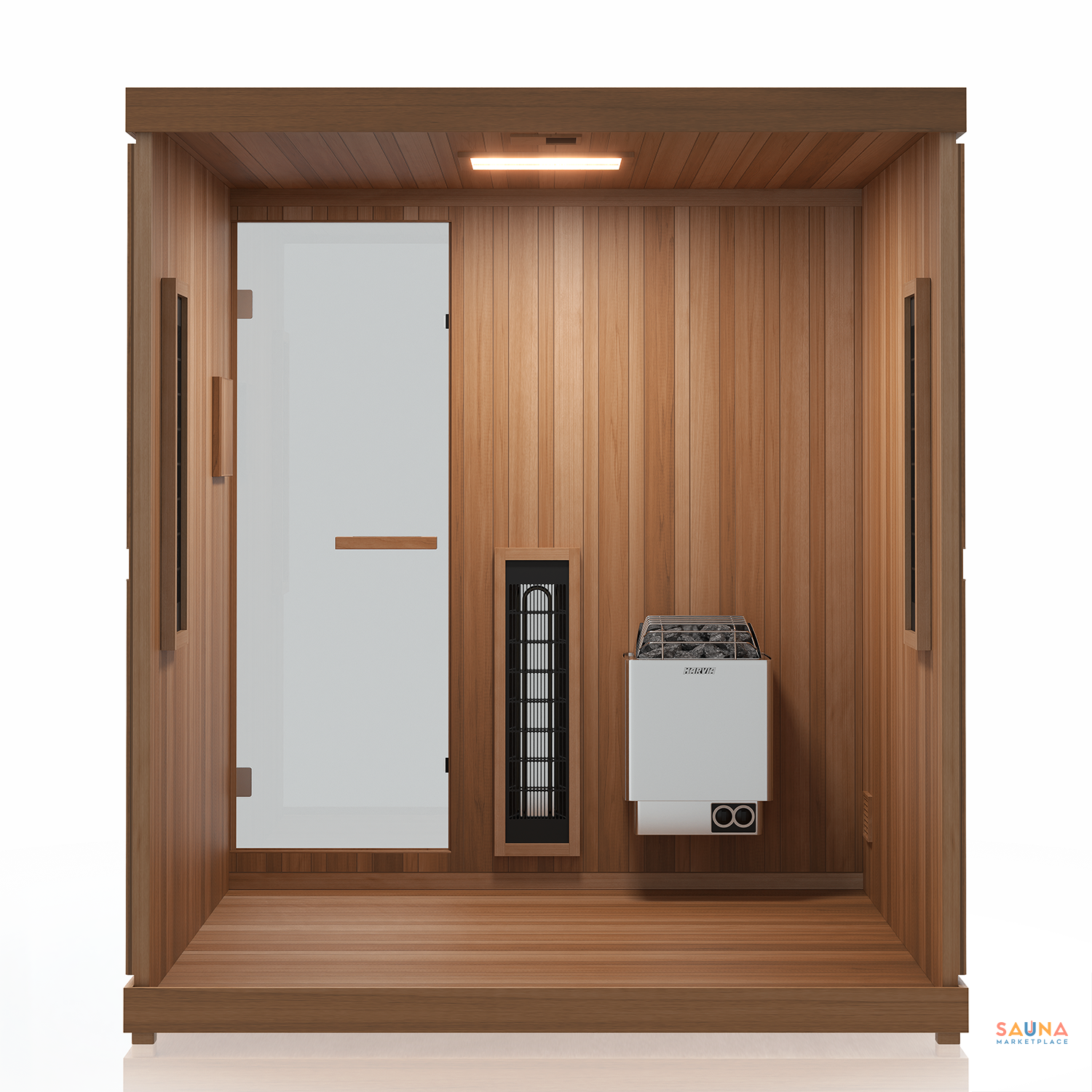

Bottom panel, top panel, back panel, front panel, left panel, right panel, glass door, bench support, bench top, heater cable, floor cable, screws, power supply unit, power cable, interior heater connections with wood cover, door handle (2 screws), infrared sauna heater panels, Harvia KIP Series B 4.5kW sauna heater, 1 box of the Harvia AC3000 0-10cm sauna stones (44 lbs), medical-grade LED red light therapy at 650nm plus color chromotherapy, V2 LCD Controller 5" touchscreen controller with Bluetooth, ETL certification, manufacturer warranty, US-Based Support and parts stocked.

Ships Free!

All Finnmark rooms currently ship for free on Sauna Marketplace, within the continental US. We can ship these worldwide, but please reach out for a freight quote.

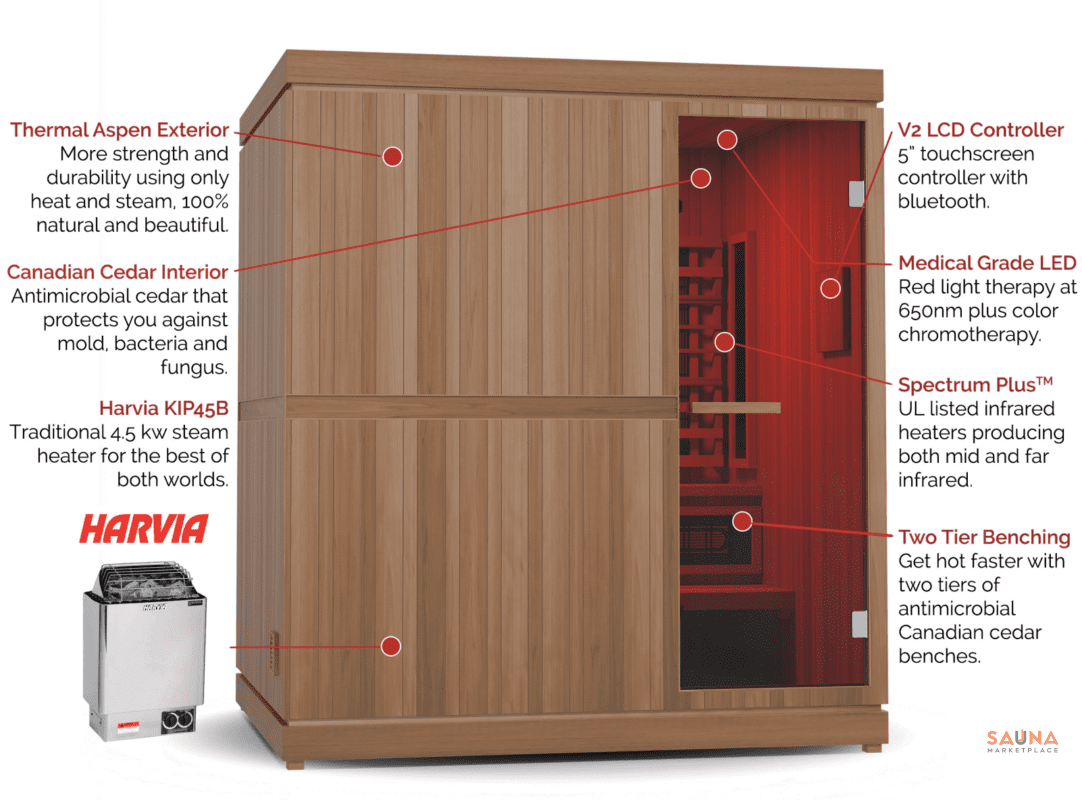

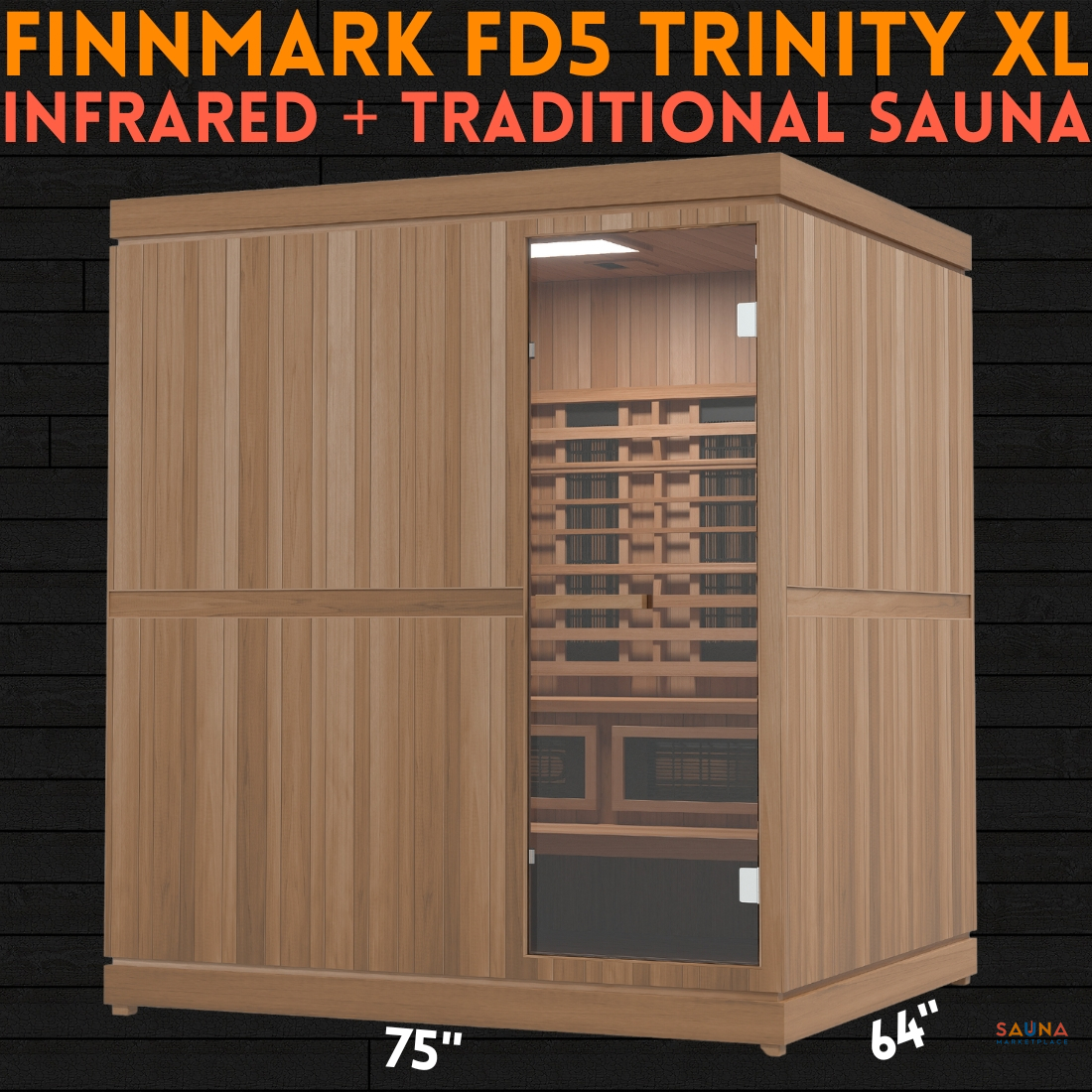

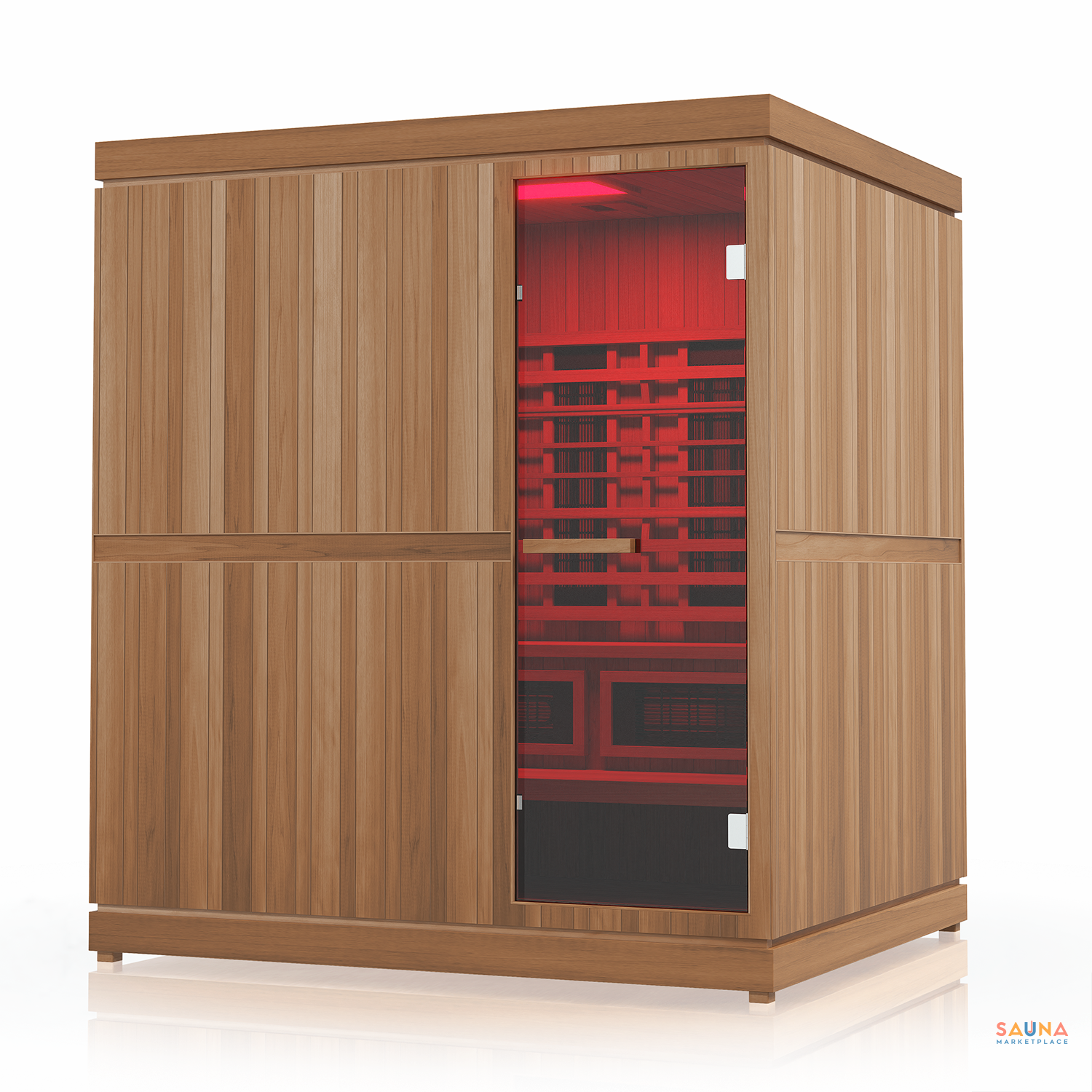

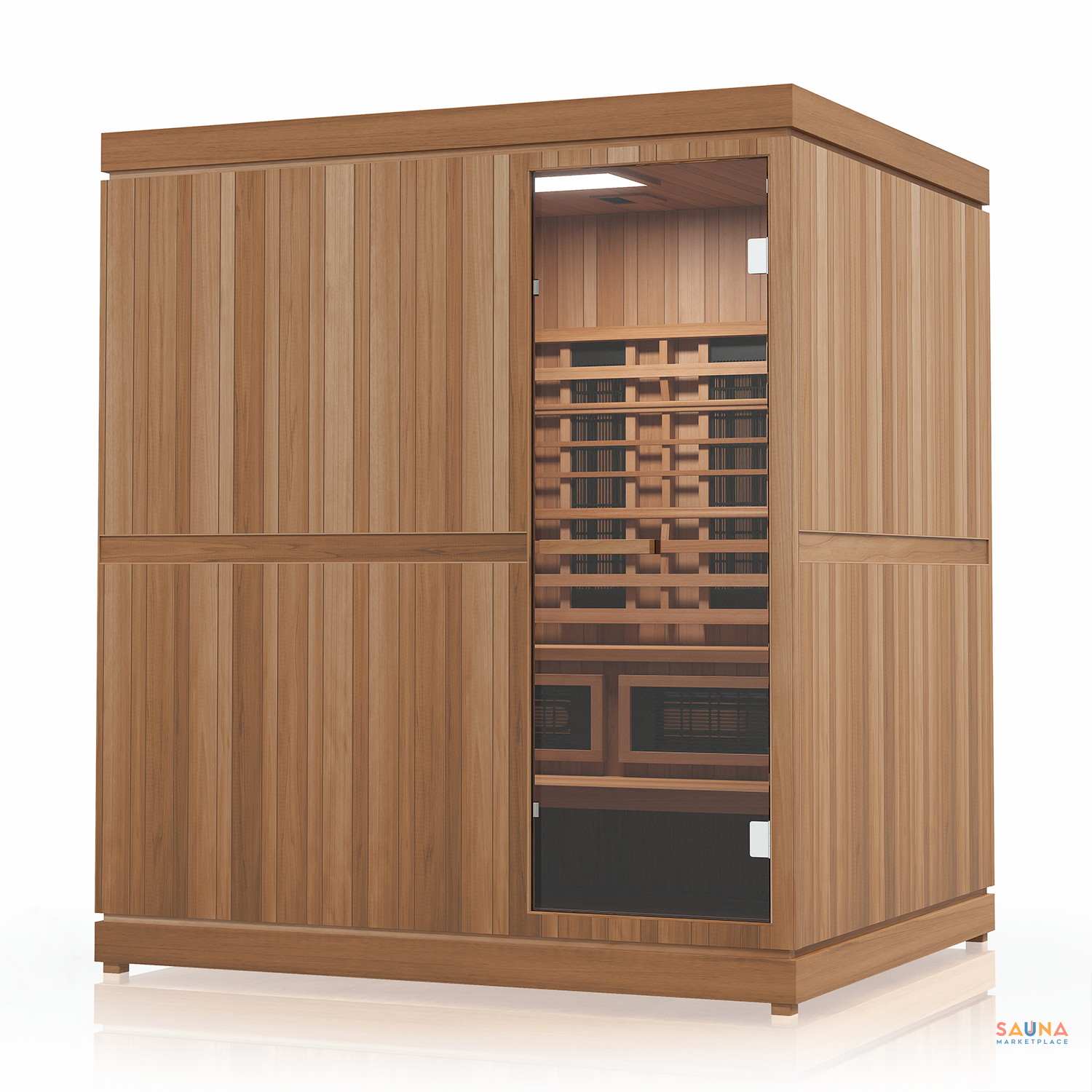

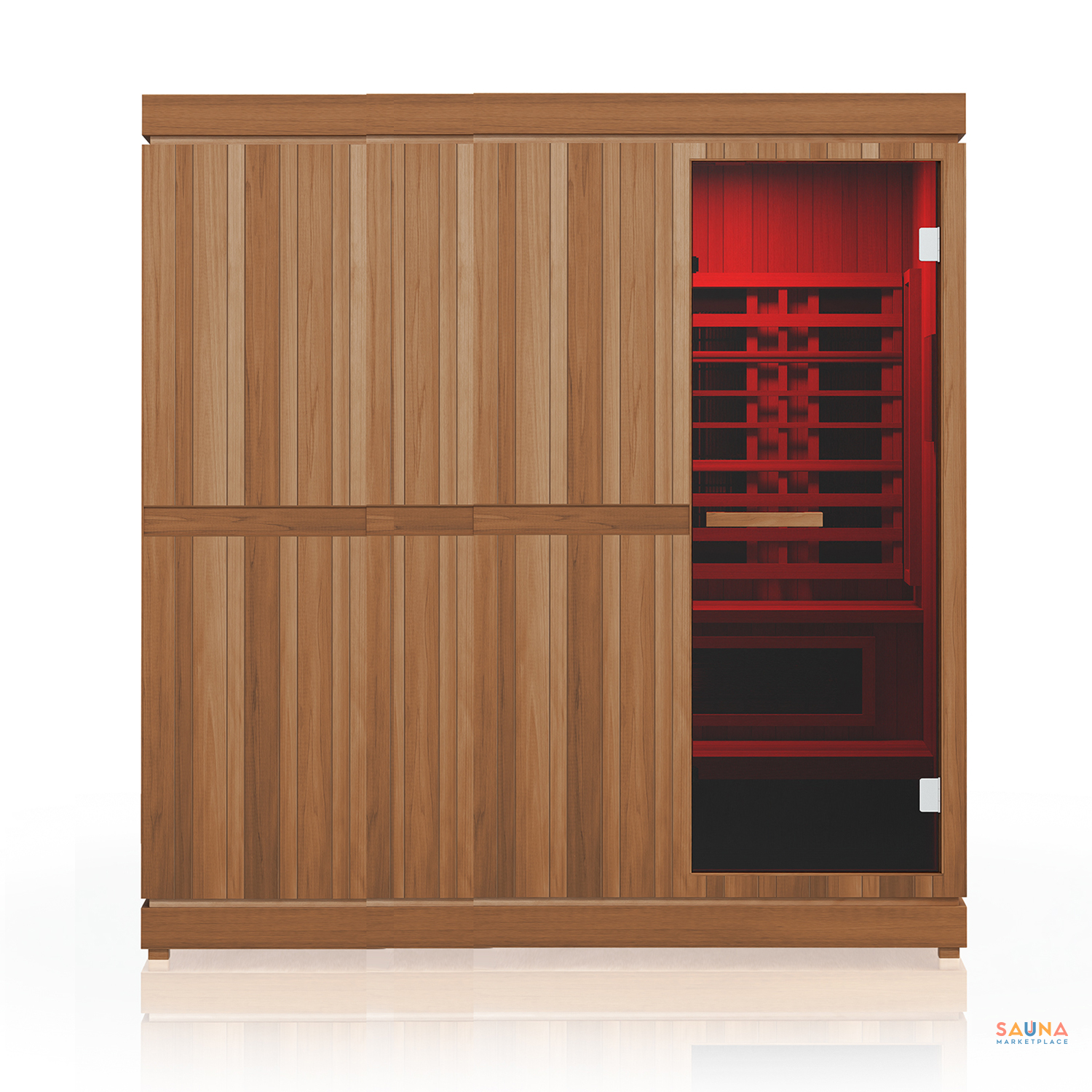

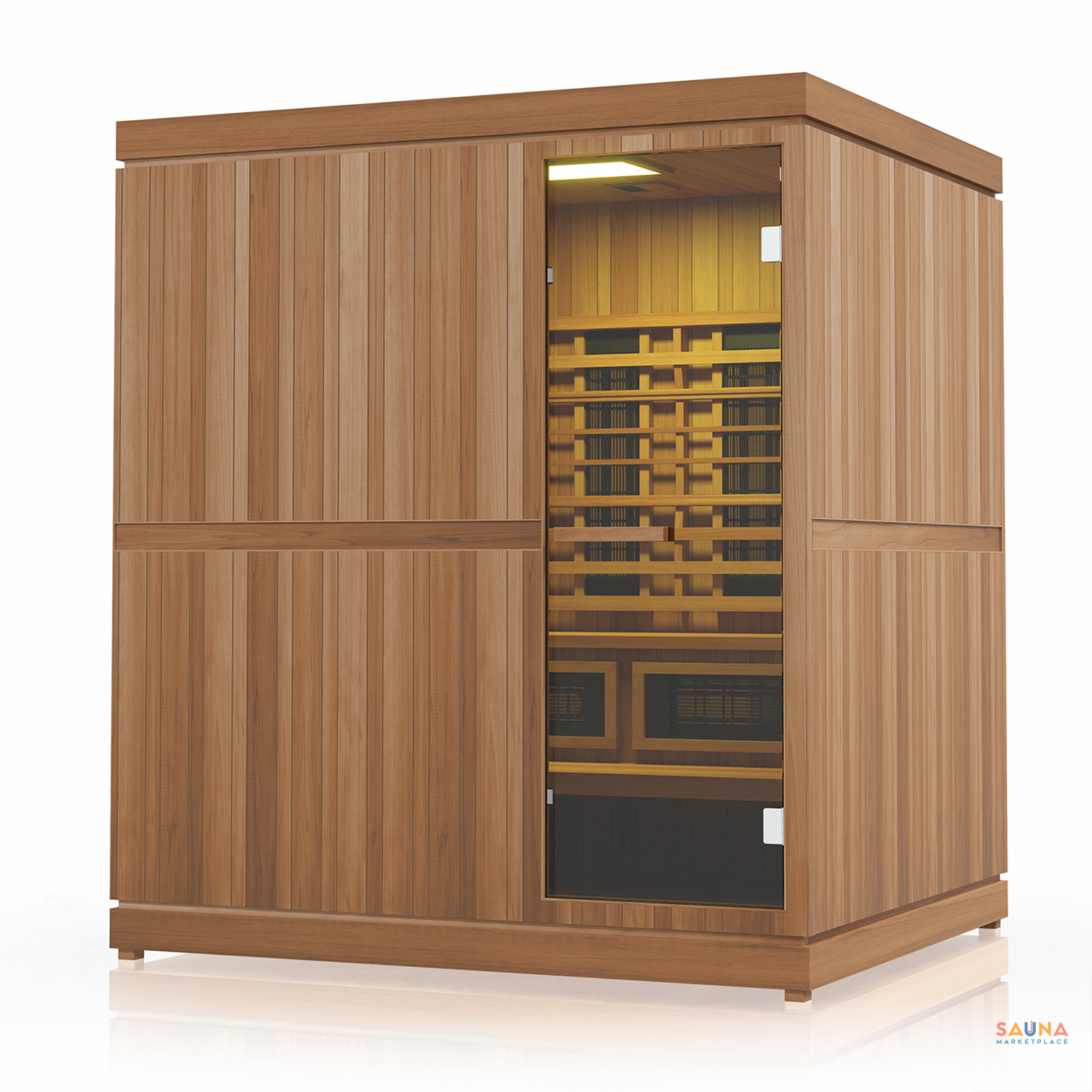

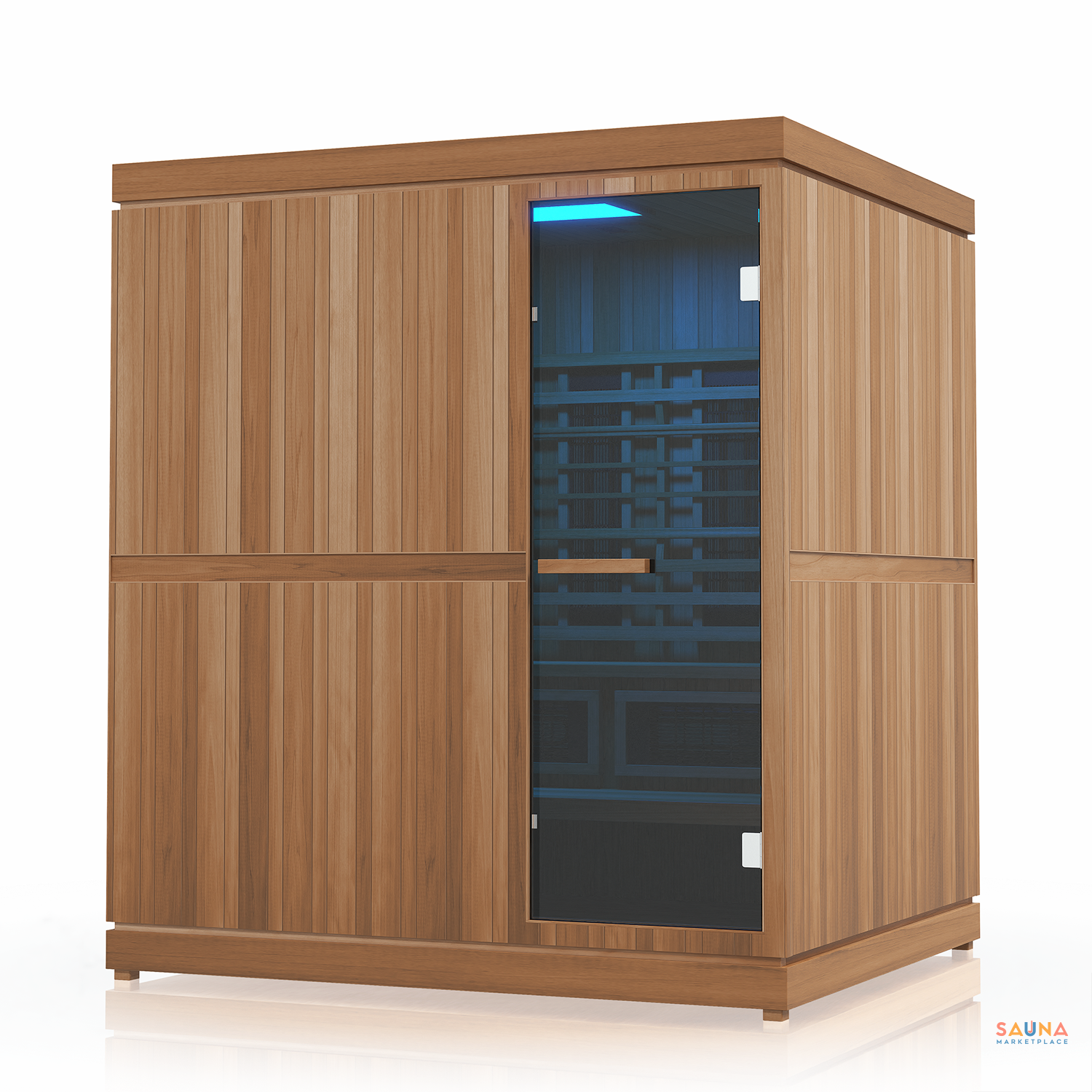

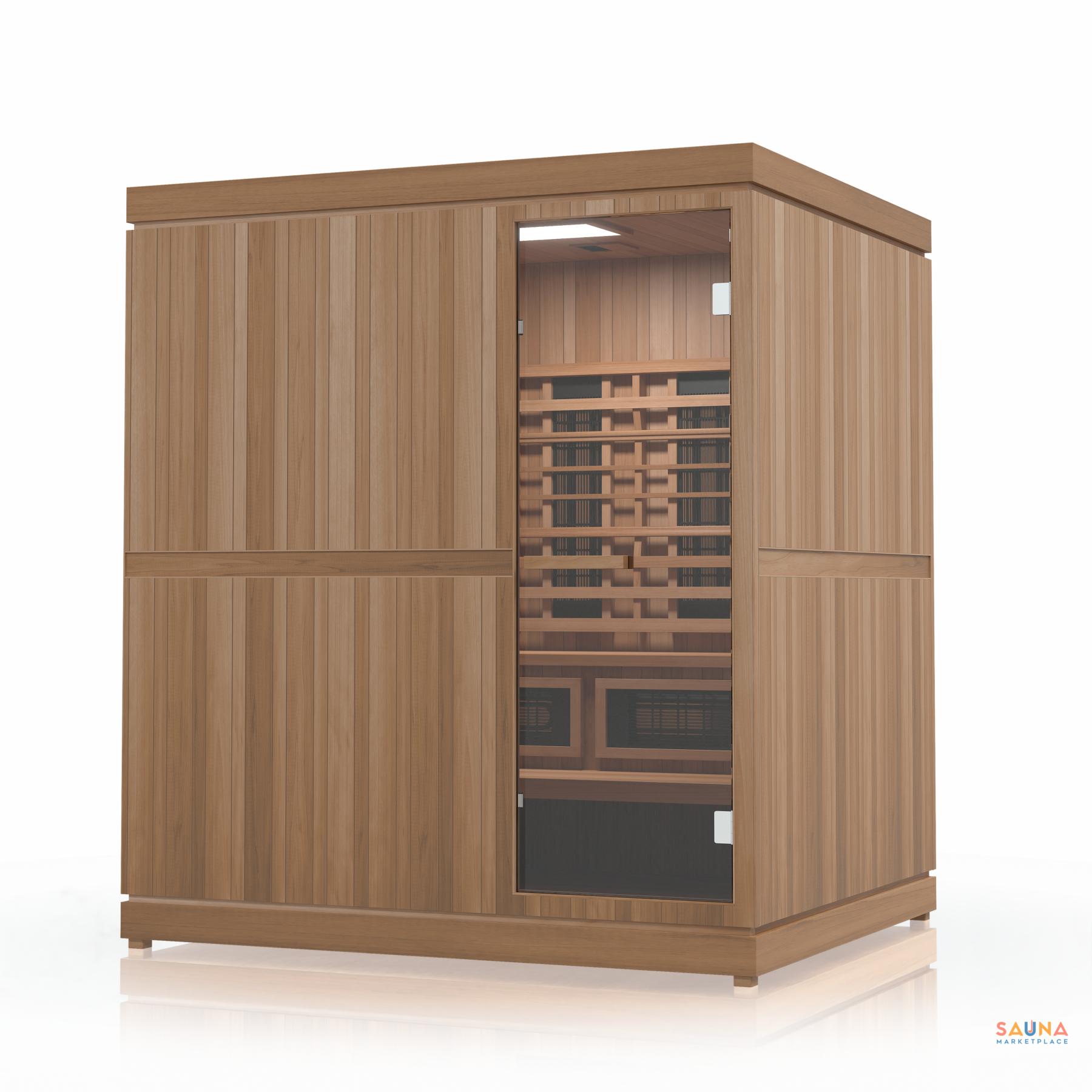

Finnmark Designs FD5 Trinity XL Infrared + Traditional Finnish Sauna Hybrid

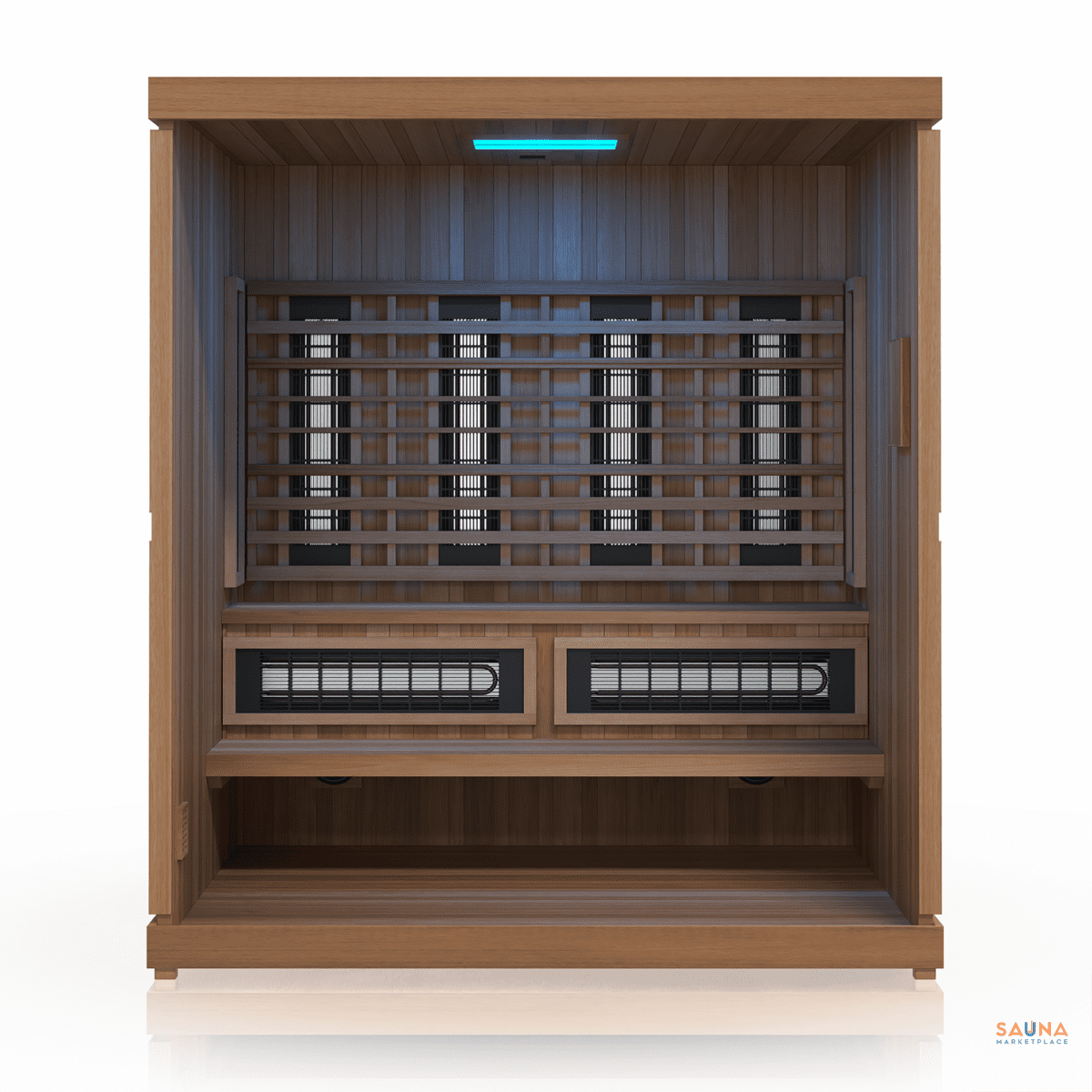

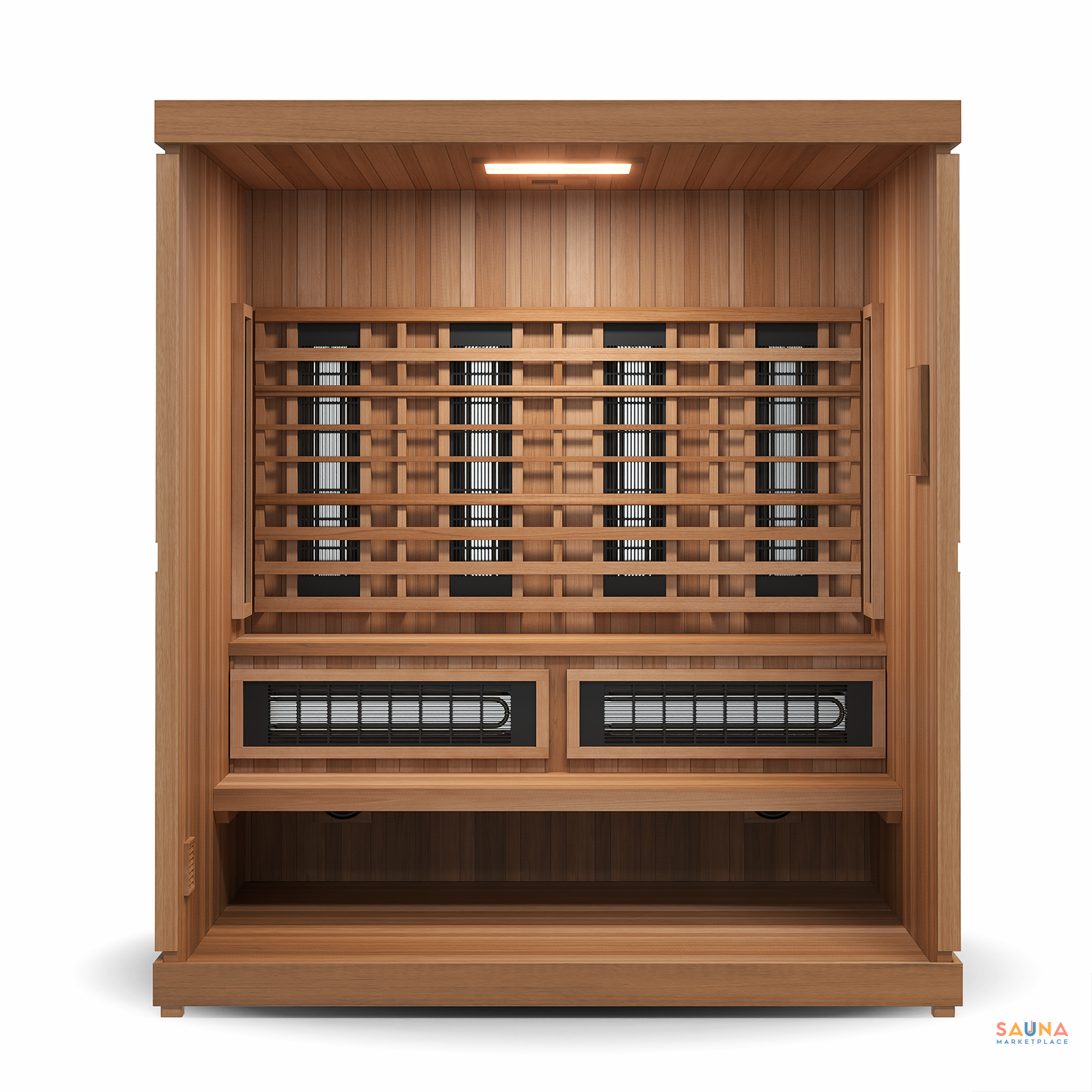

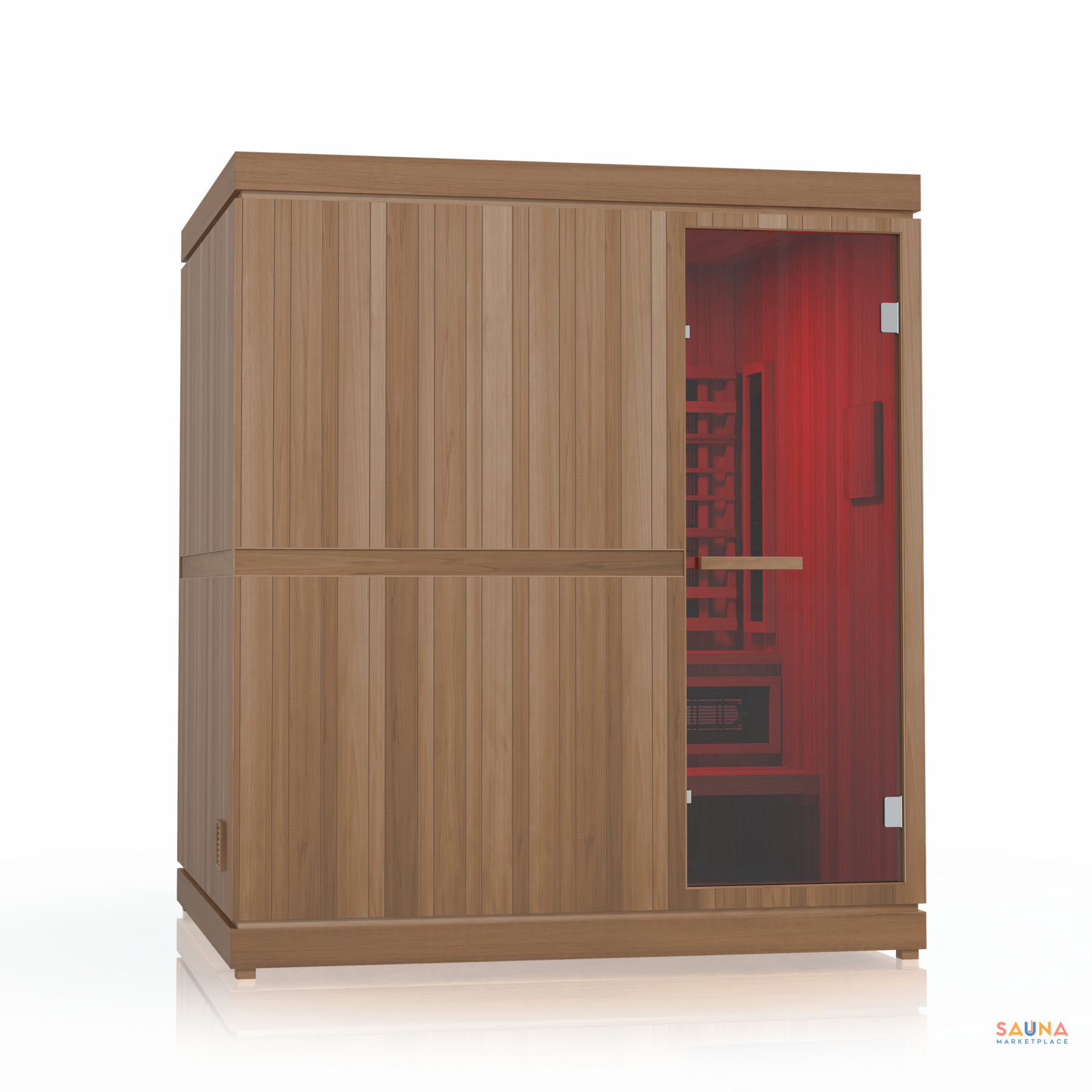

Sure, we think traditional saunas are the best, but that doesn’t mean infrared doesn’t have benefits. Meet the Finnmark FD5 Trinity XL, the ultimate in thermal exploration. Finnmark has the only infrared technology we trust, capable of reaching 170°F on their own. Combine full spectrum infrared with Medical-Grade Red Light Therapy, a Harvia Finnish sauna heater (with rocks and steam), and you have a lot of tools at your fingertips.

Build Your Quote:

Model	FD-1 FD-2 FD-3 FD5 Trinity XL Trinity FD4

$8,995.00

Fulfillment Partner:

Bathing Brands - Chicago

Zero Interest Payments:

Pay with HSA/FSA:

Finnmark

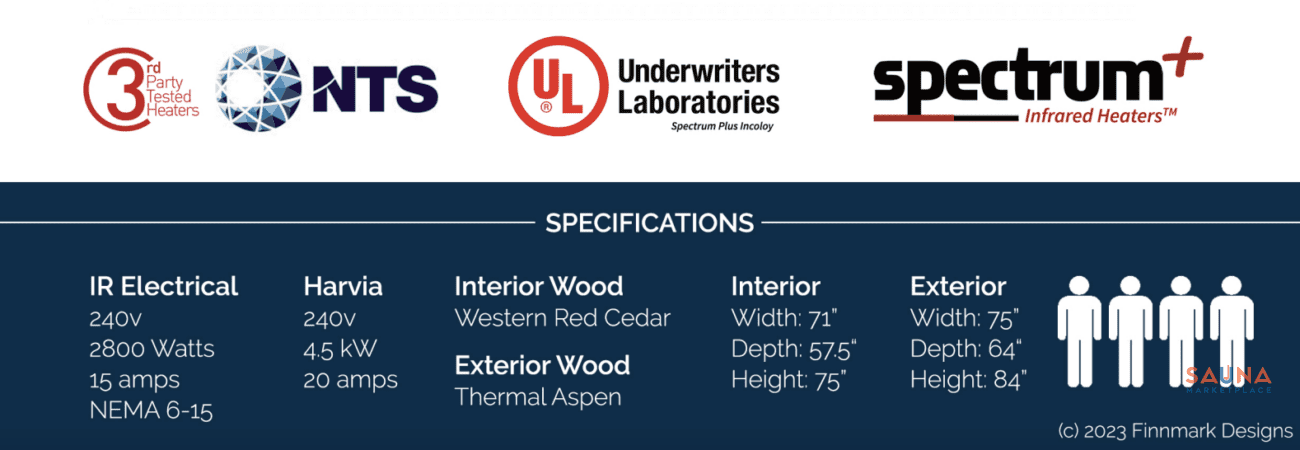

Model	FD-5
External Materials	Thermo-Aspen
Interior Materials	Western Canadian Cedar
Volts	240
IR Watts	2700
Amperage	15 \| TBD
Plug Type	NEMA 5-15P
Maximum Temperature	IR 170° F \| Traditional 190° F
Interior Dimensions	71"W x 57.5"D x 75.5"H
Exterior Dimensions	75"W x 64"D x 83"H
Room Volume	130 cu. ft.
Door Dimensions	23.625"W x 68.875"H
Door Handle Dimensions	1.5"W x 13.25"H
Glass Thickness	8mm W/Gasket
Product Weight	575 lbs
Shipping Dimensions	36"W x 80"D
Shipping Weight	654 lbs W/48 lb Pallet

Export Table Data

Model	KIP45B
Kilowatt Rating	4.5kW
Primary Fuel	Electric
Minimum Adjusted Cubic Feet	100
Maximum Adjusted Cubic Feet	210
Voltage	240V
Phase	1PH
Amperage	18.8 Amps
Heater Weight	40 lbs
Shipping Weight with Sauna Stones	84 lbs
Width In Inches	16" (406mm)
Depth In Inches	11" (279mm)
Height In Inches	24" (609mm)
