DD-1 Premium Modular Chimney System
Professional-Grade Venting Solution for All Fuel Types
Product Overview
The DD-1 Premium Modular Chimney System represents the pinnacle of modern venting technology, designed to safely and efficiently remove combustion gases from your heating appliances. Built with premium materials and engineered for outstanding performance, this system delivers exceptional reliability for homeowners and professionals alike.
Key Features
Universal Compatibility: Perfect for gas, oil, and wood-burning appliances
Superior Heat Tolerance: Handles temperatures up to 600°F
Premium Construction: Double-walled design with medical-grade stainless steel interior (Type 316L)
Professional-Grade Insulation: High-density Paroc Wired Mat 80 mineral wool for maximum safety
Weather-Resistant Design: Innovative overlapping joints prevent rain penetration
Easy Installation: Modular components for straightforward assembly
Certified Safe: Built with health-certified materials for peace of mind

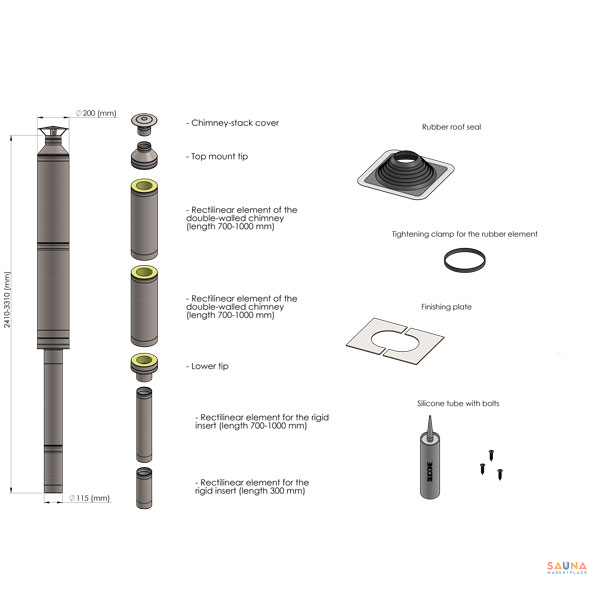

Technical Specifications
Interior Diameter: 4.5 inches (115mm)
Inner Wall: 316L Stainless Steel (0.6mm thickness)
Outer Wall: Type 304 Stainless Steel
Maximum Installation Height Above Last Support: 6.5 feet (2m)
Maximum Operating Temperature: 600°F (315°C)
Installation Features
Innovative “flow-down” joint system for optimal condensation management
Premium silicone Fire Sealant rated to 1200°F
Stainless steel fasteners for lasting durability
Professional-grade roof flashing system
Adjustable ceiling plates for clean installation
Easy-access design for maintenance
Maintenance
Tool-friendly design for easy cleaning
Removable rain cap for convenient access
Compatible with standard chimney cleaning equipment
Recommended use of polymer or stainless steel cleaning tools
Applications
Residential heating systems
Commercial heating units
Multi-fuel applications
New construction or renovation projects
Warranty
Backed by manufacturer’s warranty when installed according to specifications by certified professionals.
For professional installation and specific building code requirements, please consult local authorities and certified installers.
