Harvia Cilindro PC60 Specs (see manual for all other models)
Healing With Heat
Harvia is a public company manufacturing over 200,000 sauna heaters every year. They are trusted in 80 countries with a comprehensive catalog of electric and wood burning sauna heaters. The Harvia Cilindro is one of the their most iconic and popular models.
Let's Get This Right
Is this the right sauna heater for you?
Cilindro Half Series 6kW Stainless Steel Sauna Heater at 240V 1PH with Built-In Time and Temperature Controls
- Side wall or corner of room install
- Includes Harvia Cilindro Safety Grid
- Why You Should Buy It
- Stainless Steel housing
- Built-in controls
- Elements run down center of heater
- 200 lbs stone capacity (requires 5 boxes sold separately)
- Stainless Steel elements
- Internal thermostat makes heater NOT appropriate for building into floor or bench
Not exactly what you're looking for? Contact us here or start a new search in our shop.
All Specifications
Model
Cilindro PC60
Alt Model
HPCS6U1HB
Part Number
HPCS6U1HB
Harvia Collection
CILINDRO
Category
HEATER
GTIN
6417659026185
Color or Finish
Stainless Steel
Weight
37 lbs
Length
14" (360mm)
Width
13" (340mm)
Height
40" (1010mm)
Total Dimensions
14"W (360mm) x 13"D (340mm) x 40"H (1010mm)
Room Volume
141 - 294 CU. FT.
Rock Capacity
200 lbs
Material
Stainless Steel
Warranty
2-Year (Consumer use)
Mountable
YES
Power and Safety Specs
KW (Kilowatts)
6
Watts
6000
Volts
240VAC
Amps
25
Phase
1PH
Line Fuse
30A
Line Fuse
30A
Certifications
ETL
Hardwired
YES
Max Temp Settings
194 F
Max Temp Settings
Wall or Floor Mount
Electrical Location
BACK
High Temperature Limit Location
BOTTOM CENTER
Electric Pipe/Conduit Size
1/2"
Automatic Shut-off
YES
Adjustable Session Settings
YES
Adjustable Temperature Control
YES
Max Time Settings
60 MINUTES
Questions and Answers
200lbs stones (Qty 5 x 44lbs of 5-10cm stones)
6.0kW Sauna Heater, Installation and operation manual, 2-year warranty (Consumer use)
If you want to embed your Cilindro into the bench or flooring, the PC60 is NOT the right model, because it has built in controls that would be buried by the bench. You want to choose a model that has an external sauna controller.
- The stones should be 2-4’’ (5–10 cm) in diameter.
- Only use angular split-face sauna stones that are intended for use in a heater. Peridotite, olivine-dolerite and olivine are suitable stone types. If you are unsure, Sauna Marketplace provides an add-on option with each sauna heater to ensure proper stones are used.
- Neither light, porous ceramic “stones“ nor soft soapstones should be used in the heater. They do not absorb enough heat when warmed up. This can result in damage to heating elements.
- Wash off dust from the stones before piling them into the heater.
Please note when placing the stones:
- The aim is to pile a dense layer of stones against the steel grid and pile the rest of the stones loosely. The dense layer prevents the direct heat radiation from overheating materials around the heater. Be especially careful with the corners where the heating elements are near the grid. The loose piling of stones in the middle lets the air flow through the heater, resulting in good heating of sauna and sauna stones.
- The goal is to not see the heating elements through the rocks.
- Do not drop stones into the heater.
- Do not wedge stones between the heating elements.
- Pile the stones so that they support each other instead of lying their weight on the heating elements.
- Support the heating elements with stones so that the elements stay vertically straight.
- Do not form a high pile of stones on top of the heater.
Here’s a great video from Harvia showing how to properly place the rocks inside a Cilindro:
No stones should go inside the triangle, though you can (and should) place some on top.

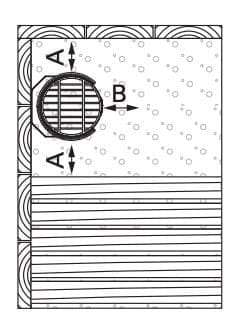

Clearances
Harvia Cilindro PC60 6KW
B. 100mm
You made it this far, is this the right heater for your sauna?
Buy a Harvia Cilindro PC60
You're in luck. We have the lowest price allowed by the manufacturer, free shipping, and $100 cash back when you leave a Cilindro PC60 review. Let's get you set up with your new heater today.
